| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YA26L2 |
| Additional Information | RoHS Compatible; Includes Inspection Window; Wire Strip Length 1 Inch; Cable Entry Type Chamfered |
| Application | Wire Termination |
| Approval | UL 467, CSA |
| Barrel Length | 0.94 Inch |
| Barrel Type | Short, Skived, Standard, Straight |
| Base Price | 0.0000 |
| Brand Name | HYLUG[TM] |
| Catalog Number | YA26L2 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Color | Black |
| Color Code | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| Conductor Size | 2/0 AWG Stranded |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

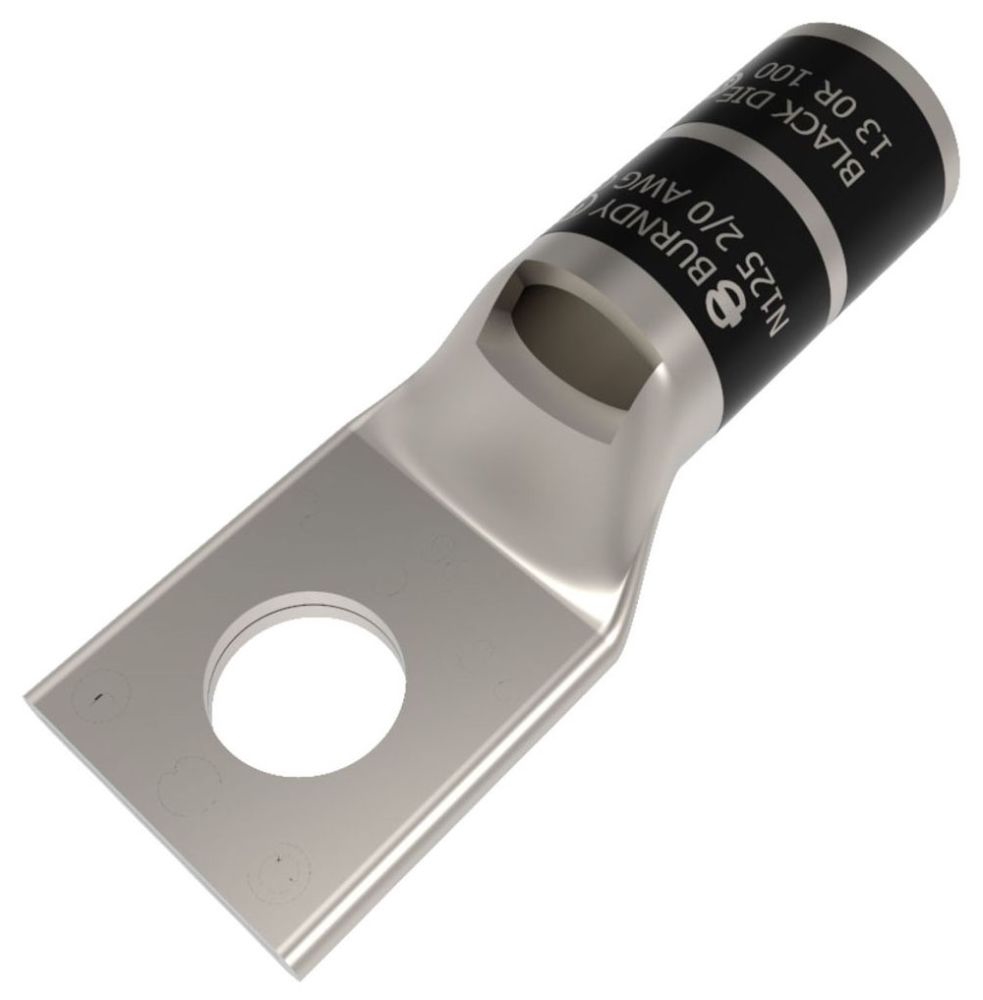

| Description Long | 2/0 AWG CU, One Hole, 1/4 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90 Up to 35kV, BLACK Color Code, 13 Die Index. |
| Description Short | 2/0 AWG, CU, 1 Hole, 1/4 Stud, Standard Barrel, Inspection WIndow |
| Description Slang | CU TERM CODE STD BBL TN |
| Die Index | 13 |
| Dimension B Length Fraction | 15/16 in |
| Dimension B Length Inch | 0.94 in |
| Dimension Bolt Hole Size Inch | 0.27 in |
| Dimension Bolt Size Fraction | 1/4 |
| Dimension Bolt Size Inch | 0.25 |
| Dimension D Inch | 0.58 in |
| Dimension Hole Size Fraction | 1/4 |
| Dimension Hole Size Inch | 0.27 |
| Dimension Hole Size Mm | 6.9 mm |
| Dimension L Length Overall Mm | 49 mm |
| Dimension Length Overall Inch | 1.94 in |
| Dimension N Inch | 0.25 in |
| Dimension Outside Diameter Inch | 0.56 in |
| Dimension Pad Width Inch | 0.83 in |
| Dimension Strip Length Inch | 1 in |
| Dimension Stud Size Fraction | 1/4 |
| Dimension Stud Size Inch | 1/4 |
| Dimension Z Inch | 0.33 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands;Standard barrel length is recommended for installations with limited space availability;Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements;Connectors are clearly marked with stamping and barrel color coding | |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered;Skived |
| Feature Barrel Type | Standard |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 2/0 CU 1-HOLE SHORT 1/4;2/0AWG COP 1H LUG |
| Item Number | 55376 |
| Long Description | COMPRESSION TERMINAL, ELECTRO-TIN PLATED COPPER MATERIAL; BLACK COLOR; 1.94 INCH OVERALL LENGTH; 0.94 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL 467, CSA APPROVAL; 2/0 AWG STRANDED CONDUCTOR SIZE; 1/4 INCH STUD SIZE; 13 DIE INDEX |
| MSDS Form Number | * |
| Material | COPPER;Electro-Tin Plated Copper |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 1.94 Inch |
| Pad Size | 0.83 Inch W x 0.12 Inch Thk |
| Product Description | 2/0 CU 1-HOLE SHORT 1/4 |
| Product Keywords | WEBREADY |
| Product Name | Cable or wire lugs |
| ProductLine | BUR |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 1 IN, Temperature Rating: 90 DEG C, Die Index: 13, Tongue Angle: Straight, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W26VT, W26RT, X26RT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W26VT, W26RT, X26RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U26RT Die, (1), Y46 Tool, U26RT Die With PUADP-1 Adapter, (1), Color Code: Black, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11 Tool, (1), MRC840 Tool, (2) |
| Standard | UL 486A-486B |
| Stud Size | 1/4 Inch |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC | 78181055376 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
