| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YA2CL6BOX |
| Additional Information | RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 15/16 Inch; Temperature Rating 90 Deg C; With Inspection Window |
| Application | Wire Termination |
| Approval | UL, CSA |
| Barrel Length | 0.88 Inch |
| Barrel Type | Standard, Straight, Non-Insulated |
| Base Price | 0.0000 |
| Brand Name | Burndy;HYLUG , HYDENT |
| Catalog Number | YA2CL6BOX |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Color | Brown |
| Color Code | Brown |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| Conductor Size | 2 AWG Stranded (Code), 60 (Navy) |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

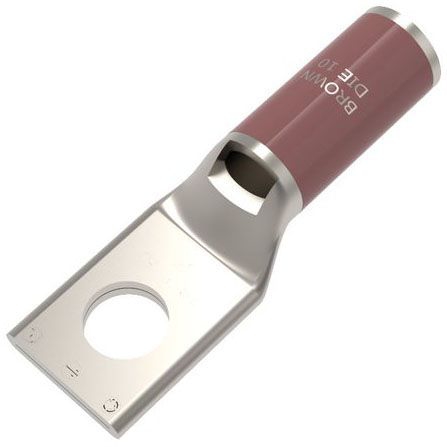

| Description Long | 2 AWG CU, One Hole, 1/2 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90 Up to 35kV, BROWN Color Code, 10 Die Index. |
| Description Slang | TERM CODE STD BBL TNBULK |
| Die Index | 10 |;10 |
| Dimension Bolt Hole Size Inch | 0.52 in |
| Dimension Bolt Size Fraction | 1/2 |
| Dimension Bolt Size Inch | 0.5 |
| Dimension D Inch | 1.08 in |
| Dimension L Length Overall Mm | 58 mm |
| Dimension Length Overall Inch | 2.30 in |
| Dimension N Inch | 0.53 in |
| Directory | CIS |
| FV Conductor Copper Str Navy Size Range | 60 (37) Navy |
| FV Conductor Copper Str Size Range | 2 AWG |
| FV Dimension Bolt Size Fraction | 1/2 |
| FV Industry Standard S | UL 486A-486B |
| FV Product Family | COMPRESSION |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered;Skived |
| Feature Barrel Type | Standard |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 2STR CU 1-HOLE SHORT 1/2;2AWG COP 1H LUG |
| Item Number | 55210 |
| Long Description | COMPRESSION TERMINAL, ELECTRO TIN PLATED COPPER MATERIAL; BROWN COLOR; 2.32 INCH OVERALL LENGTH; 0.88 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 35 KILOVOLT VOLTAGE RATING; 2 AWG STRANDED (CODE), 60 (NAVY) CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Copper;Electro Tin Plated Copper |
| Model | YA-L |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 2.32 Inch |
| Pad Size | 0.73 Inch Width x 0.09 Inch Thickness |
| Physical Attribute Tongue Angle | Straight |
| Physical Attribute Tongue Type | Standard |
| Product Description | 2STR CU 1-HOLE SHORT 1/2 |
| Product Keywords | WEBREADY |
| Product Name | Cable or wire lugs |
| ProductLine | BUR |
| Rating KVA | 35 kV |
| Related Links List | "Find Alternate Products" |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Die Index: 10, Wire Strip Length: 15/16 IN, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Package: Box, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W2CVT, W2CRT, X2CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W2CVT, W2CRT, X2CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U2CRT Die, (1), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (1), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2), Conductor Type: Commercial Stranded Copper |
| Standard | UL 486A-486B |
| Standards RoHS Compliance Status | CM |
| Stud Size | 1/2 Inch |
| Sub Brand | HYLUG |
| Type | Standard Barrel, Tin Plated |
| UL Listed | Yes |
| UNSPSC | 39121405 |
| UPC | 78181055210 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Maximum | 35,000 |
| Voltage Rating | 35,000 V;35 Kilovolt |
