| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YA2CTC38 |
| Additional Information | ROHS COMPATIBLE; CABLE ENTRY TYPE BEVELED, CHAMFERED; WIRE STRIP LENGTH 1 5/16 INCH; TEMPERATURE RATING 90 DEG C |
| Application | Wire Termination |
| Approval | UL, CSA |
| Barrel Length | 1.25 INCH |
| Barrel Type | LONG, STANDARD, STRAIGHT |
| Base Price | 0.0000 |
| Brand Name | HYLUG[T], BURNDY[R] |
| Catalog Number | YA2CTC38 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Color | BROWN |
| Color Code | Brown |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | COPPER |
| Conductor Size | 2 AWG STRANDED |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

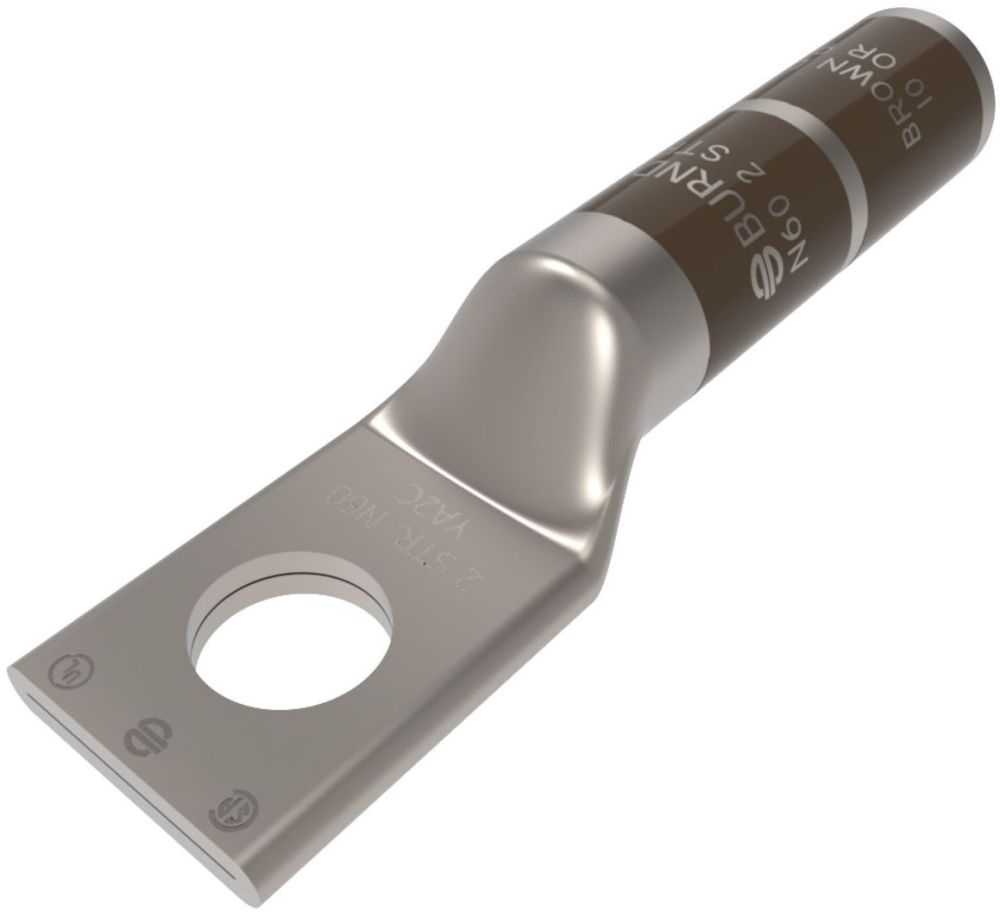

| Description Long | 2 AWG CU, One Hole, 3/8 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, BROWN Color Code, 10 Die Index. |
| Description Short | 2 AWG, CU, 1 Hole, 3/8 Stud, Long Barrel |
| Description Slang | TERM CODE LG BBL TN TEL |
| Die Index | 10 |
| Dimension B Length Inch | 1.25 in |
| Dimension Bolt Size Fraction | 3/8 |
| Dimension Bolt Size Inch | 0.38 |
| Dimension Hole Size Fraction | 3/8 |
| Dimension Hole Size Inch | 0.41 |
| Dimension Hole Size Mm | 10.4 mm |
| Dimension L Length Overall Mm | 61 mm |
| Dimension Length Overall Inch | 2.41 in |
| Dimension Pad Width Inch | 0.60 in |
| Dimension Strip Length Inch | 1-5/16 |
| Dimension Stud Size Fraction | 3/8 |
| Dimension Stud Size Inch | 3/8 |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands;Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection;Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements;Connectors are clearly marked with stamping and barrel color |
| FV BuyAmericanCompliant | No |
| FV Conductor Copper Str Size Range | 2 AWG |
| FV Dimension Hole Size Inch | 0.41 |
| FV Physical Attribute Tongue Angle | Straight |
| FV Product Family | COMPRESSION |
| FV Trade Name | HYLUG |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Skived |
| Feature Barrel Type | Long |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 2 STR 3/8 STUD LONG;2AWG LUG |
| Item Number | 53273 |
| Long Description | COMPRESSION TERMINAL, ELECTRO TIN PLATED COPPER MATERIAL; BROWN COLOR; 2.41 INCH OVERALL LENGTH; 1.25 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 600 V TO 35 KV VOLTAGE RATING; 2 AWG STRANDED CONDUCTOR SIZE; 3/8 INCH STUD SIZE |
| MSDS Form Number | * |
| Material | COPPER;ELECTRO TIN PLATED COPPER |
| Minimum Pack Quantity | 25 | |
| Model | YA-TC |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 2.41 INCH |
| Pad Size | 0.6 INCH W X 0.11 INCH THK |
| Product Description | 2 STR 3/8 STUD LONG |
| Product Keywords | WEBREADY |
| Product Name | Cable or wire lugs |
| ProductLine | BUR |
| Special Features | Accomodates Stranded cable, With Inspection window, Long barrel |
| Standard | UL 486A-486B |
| Stud Size | 3/8 INCH |
| Type | Long Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC | 78181053273 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 600 V TO 35 KV |
