| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YA30 |
| Additional Information | RoHS Compliant; Connector Type Terminal; Cable Entry Type Chamfered; Wire Strip Length 2-1/16 Inch; Temperature Rating 90 Deg C |
| Application | Wire Termination |
| Approval | UL 468A/B, CSA |
| Barrel Length | 2 Inch |
| Barrel Type | Long, Straight |
| Base Price | 0.0000 |
| Brand Name | HYLUG |
| Catalog Number | YA30 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Color | White |
| Color Code | White |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| Conductor Size | 300 KCMIL Stranded |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

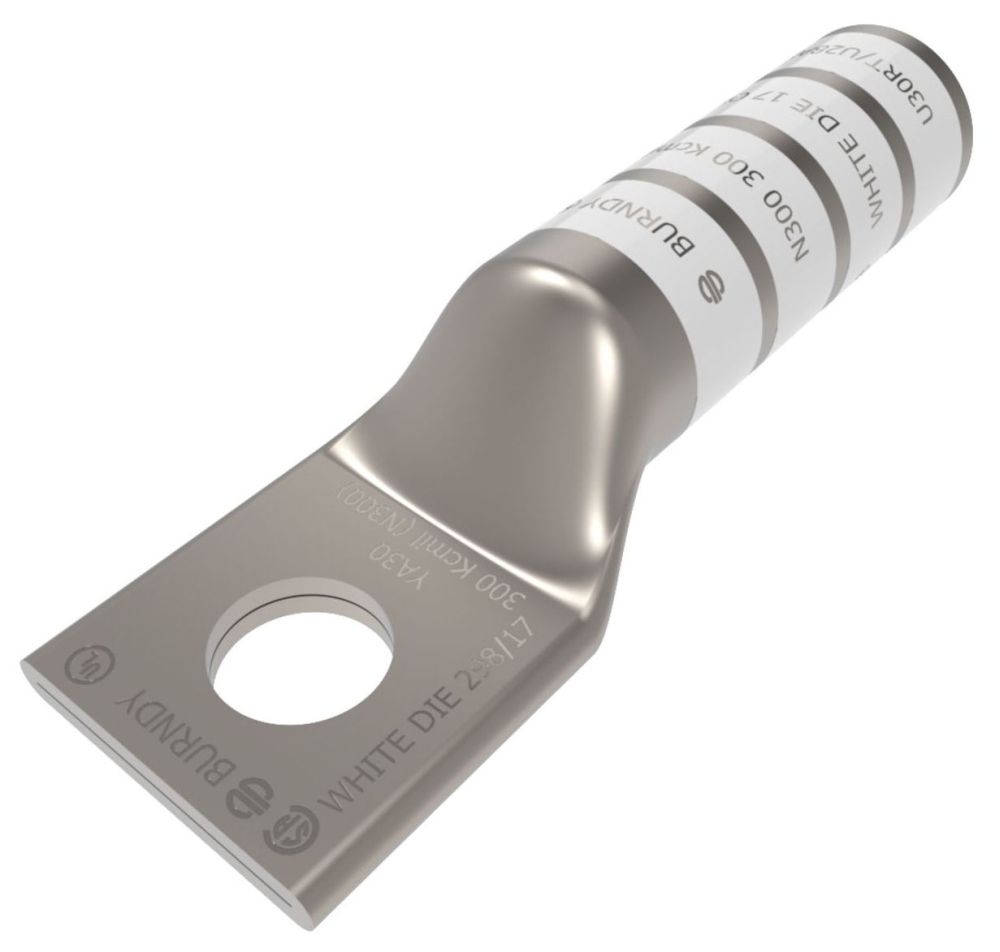

| Description Long | 300 kcmil CU, One Hole, 1/2 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV,WHITE Color Code, 17 or 298 Die Index. |
| Description Short | 300 kcmil, CU, 1 Hole, 1/2 Stud, Long Barrel |
| Description Slang | TERM CODE LG BBL TN |
| Die Index | 17;17/298 |
| Dimension B Length Fraction | 2 in |
| Dimension B Length Inch | 2.00 in |
| Dimension Bolt Hole Size Inch | 0.52 in |
| Dimension Bolt Size Fraction | 1/2 |
| Dimension Bolt Size Inch | 0.5 |
| Dimension Hole Size Fraction | 1/2 |
| Dimension Hole Size Inch | 0.53 |
| Dimension Hole Size Mm | 13.5 mm |
| Dimension L Length Overall Mm | 94 mm |
| Dimension Length Overall Inch | 3.69 in |
| Dimension N Inch | 0.53 in |
| Dimension Outside Diameter Inch | 0.81 in |
| Dimension Pad Width Inch | 1.20 in |
| Dimension Strip Length Inch | 2-1/16 |
| Dimension Stud Size Fraction | 1/2 |
| Dimension Stud Size Inch | 1/2 |
| Dimension Z Inch | 0.55 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands;Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection;Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements;Connectors are clearly marked with stamping and barrel color |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Conductor Copper Str Size Range | 300 kcmil | |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered |
| Feature Barrel Type | Long |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 300 CU 1-HOLE LONG 1/2;300MCM COP 1H LUG |
| Item Number | 50455 |
| Long Description | COMPRESSION TERMINAL, ELECTRO-TIN PLATED COPPER MATERIAL; WHITE COLOR; 3.69 INCH OVERALL LENGTH; 2 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL 468A/B, CSA APPROVAL; 600 VOLT TO 35 KILOVOLT VOLTAGE RATING; 300 KCMIL STRANDED CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | COPPER;Electro-Tin Plated Copper |
| Model | YA |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 3.69 Inch |
| Pad Size | 1.2 Inch Width x 0.16 Inch Thickness |
| Product Description | 300 CU 1-HOLE LONG 1/2 |
| Product Keywords | WEBREADY |
| Product Name | Cable or wire lugs |
| ProductLine | BUR |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Wire Strip Length: 2 IN, Die Index: 17 Or 298, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W30VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W30VT, W30RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U30RT, U28ART Die, (4), Y46 Tool, U30RT, U28ART Die With PUADP-1 Adapter, (4), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (3) |
| Standard | UL 486A-486B |
| Stud Size | 1/2 Inch |
| Type | Long Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC | 78181050455 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 600 Volt to 35 Kilovolt |
