| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YA342LN |
| Additional Information | RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-7/16 Inch; Cable Entry Type Beveled Entry, Chamfered |
| Application | Wire Termination |
| Approval | UL, CSA |
| Barrel Length | 1.27 Inch |
| Barrel Type | Short, Skived, Standard, Straight |
| Base Price | 0.0000 |
| Bolt Size | 1/2 in |
| Brand Name | Burndy;HYLUG[TM] |
| Catalog Number | YA342LN |
| Color | Brown |
| Color Code | Brown |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| Conductor Size | 500 KCMIL Stranded (Code) |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | 500 kcmil CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, Brown Color Code, 20 or 299 Die Index. |
| Description Short | 500 kcmil, CU, 2 Hole, 1/2 Stud, 1-3/4 IN Spacing, Standard Barrel, Inspection WIndow |
| Die Index | 20;20/299 |
| Dimension B Length Fraction | 1-1/4 in |
| Dimension B Length Inch | 1.27 in |
| Dimension Hole Size Fraction | 1/2 |
| Dimension Hole Size Inch | 0.56 |
| Dimension Hole Size Mm | 14 mm |
| Dimension Outside Diameter Inch | 1.06 in |
| Dimension Pad Width Inch | 1.55 in |
| Dimension Strip Length Inch | 1-7/16 |
| Dimension Stud Size Fraction | 1/2 |
| Dimension Stud Size Inch | 1/2 |
| Dimension Z Inch | 0.64 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Type | Standard |
| Hole Spacing | 1.75 in |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 500-CU 2-HOLE-SHORT-NEMA;500MCM COP 2H LUG |
| Item Number | 50595 |
| Long Description | COMPRESSION TERMINAL, ELECTRO-TIN PLATED COPPER MATERIAL; BROWN COLOR; 5.06 INCH OVERALL LENGTH; 1.27 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 600 V TO 35 KV VOLTAGE RATING; 500 KCMIL STRANDED (CODE) CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Copper;Electro-Tin Plated Copper |
| Minimum Pack Quantity | 1 |
| Model | YA-2LN |
| Noun | * |
| Number Of Pad Holes | 2 |
| Overall Length | 5.06 Inch |
| Pad Hole Spacing | 1-3/4 Inch |
| Pad Size | 1.55 Inch W x 0.23 Inch Thk |
| Physical Attribute Tongue Angle | Straight |
| Physical Attribute Tongue Type | Standard | |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Product Description | 500-CU 2-HOLE-SHORT-NEMA |
| Product Keywords | WEBREADY |

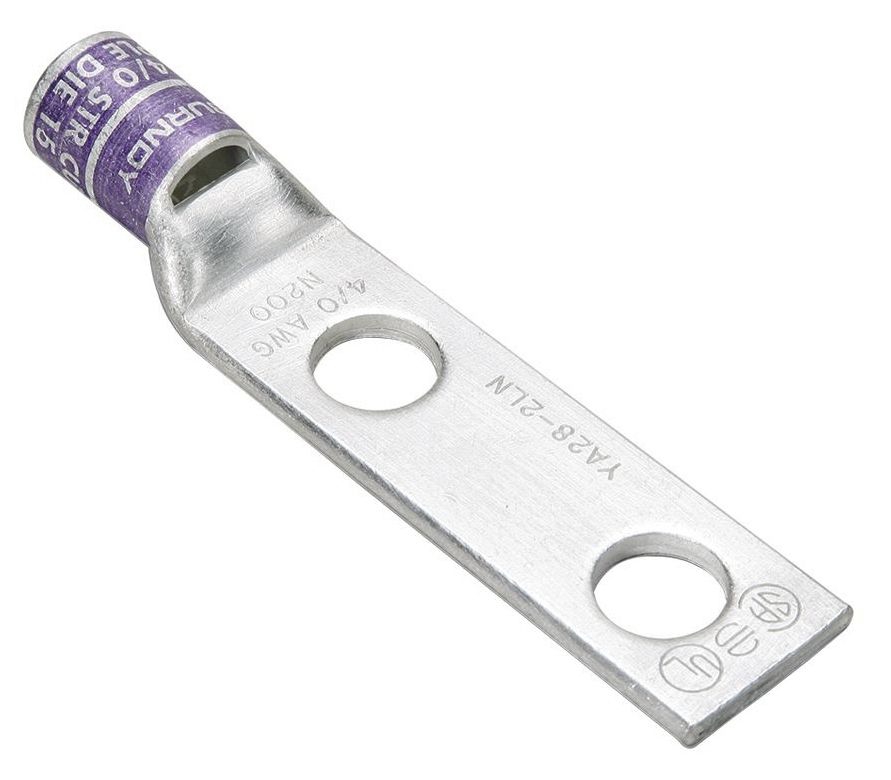

| Product Name | Compression Terminal |
| Product Type | TERMINAL |
| ProductLine | BUR |
| Rating KVA | 35 kV |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Die Index: 20, Wire Strip Length: 1-7/16 IN, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W34VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W34VT, W34RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U34RT, U31ART Die, (2), Y46 Tool, U34RT, U31ART Die With PUADP-1 Adapter, (2), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1) |
| Standard | UL 486A-486B |
| Stud Size | 1/2 Inch |
| Sub Brand | HYLUG |
| Trade Name | HYLUG |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC | 78181050595 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Maximum | 35,000 |
| Voltage Rating | 35,000 V;600 V to 35 kV |
