| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YA34N |
| Additional Information | UNINSULATED |
| Application | Wire Termination |
| Approval | UL, CSA |
| Barrel Length | 2.25 Inch |
| Barrel Type | Long, Standard, Straight |
| Base Price | 0.0000 |
| Brand Name | Burndy;HYLUG[TM] |
| Catalog Number | YA34N |
| Color | Brown |
| Color Code | Brown |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| Conductor Size | 500 KCMIL Stranded (Code) |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

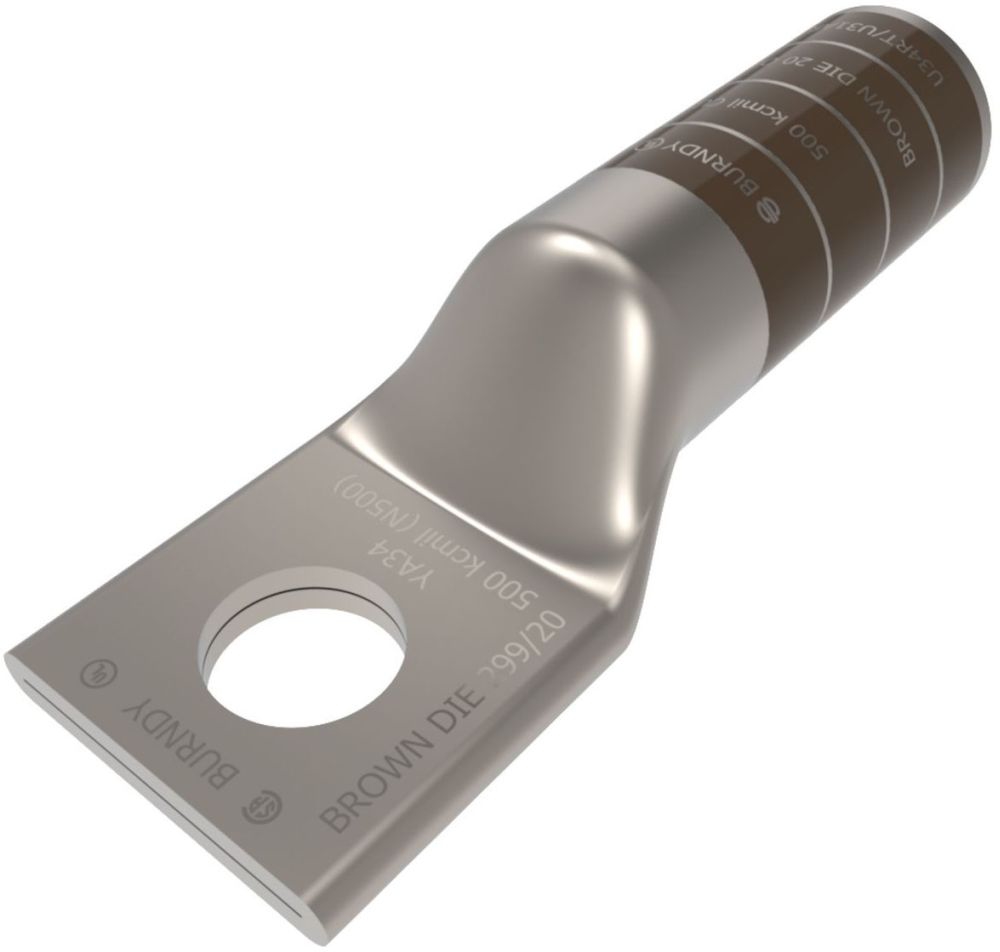

| Description Long | 500 kcmil CU, One Hole, 1/2 Stud Size, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV,BROWN Color Code, 20 or 299 Die Index. |
| Description Short | 500 kcmil, CU, 1 Hole, 1/2 Stud, Long Barrel |
| Description Slang | TERM CODE LG BBL TN |
| Die Index | 20;20/299 |
| Dimension B Length Fraction | 2-1/4 in |
| Dimension B Length Inch | 2.25 in |
| Dimension Hole Size Fraction | 1/2 |
| Dimension Hole Size Inch | 0.56 |
| Dimension Hole Size Mm | 14 mm |
| Dimension Outside Diameter Inch | 1.06 in |
| Dimension Pad Width Inch | 1.55 in |
| Dimension Strip Length Inch | 2-5/16 |
| Dimension Stud Size Fraction | 1/2 |
| Dimension Stud Size Inch | 1/2 |
| Dimension Z Inch | 0.64 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Type | Long |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 500 CU 1-HOLE LONG 1/2;500 COP 1H LUG |
| Item Number | 01793 |
| Long Description | COMPRESSION TERMINAL, ELECTRO TIN PLATED COPPER MATERIAL; BROWN COLOR; 4.32 INCH OVERALL LENGTH; 2.25 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 600 VOLT TO 35 KILOVOLT VOLTAGE RATING; 500 KCMIL STRANDED (CODE) CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Copper;Electro Tin Plated Copper |
| Minimum Pack Quantity | 1 |
| Model | YA |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 4.32 Inch |
| Pad Size | 1.55 Inch Width x 0.23 Inch Thickness |
| Physical Attribute Tongue Angle | Straight |
| Physical Attribute Tongue Type | Standard | |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Product Description | 500 CU 1-HOLE LONG 1/2 |
| Product Keywords | WEBREADY |
| Product Name | Compression Terminal |
| Product Type | TERMINAL |
| ProductLine | BUR |
| Rating KVA | 35 kV |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 20 Or 299, Finish: Electro-Tin Plated, Wire Strip Length: 2-5/16 IN, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W34VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W34VT, W34RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U34RT, U31ART Die, (4), Y46 Tool, U34RT, U31ART Die With PUADP-1 Adapter, (4), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4) |
| Standard | UL 486A-486B |
| Standards RoHS Compliance Status | CM |
| Stud Size | 1/2 Inch |
| Sub Brand | HYLUG |
| Trade Name | HYLUG |
| Type | Long Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC | 78181001793 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Maximum | 35,000 |
| Voltage Rating | 35,000 V;600 Volt to 35 Kilovolt |
