Manufacturer Name | BURNDY (FCI BURNDY) |
MfgPartNo | YA3CL |
Additional Information | RoHS Compliant; Wire Strip Length 15/16 Inch; Cable Entry Type Chamfered, Beveled Entry; Includes Inspection Window; Temperature Rating 90 Deg C |
Application | Wire Termination |
Approval | UL 467, CSA |
Barrel Length | 0.88 Inch |
Barrel Type | Short, Skived, Standard, Straight |
Base Price | 0.0000 |
Brand Name | Burndy;HYLUG |
Catalog Number | YA3CL |
Color | White |
Color Code | White |
Commerce Sector | Construction Materials |
Commodity Code | 64120 |
Commodity Description | Large Terminals & Connectors |
Conductor Material | Copper |
Conductor Size | 2 AWG Solid (Code), 3 AWG Stranded (Code) |
CountryOfOrigin | US |
DDCATEGORY | 597 |
Description Long | 3 AWG CU, One Hole, 5/16 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90 Up to 35kV, WHITE Color Code, 9 Die Index. |
Description Short | 3 AWG, CU, 1 Hole, 5/16 Stud, Standard Barrel, Inspection WIndow |
Die Index | 9 |
Dimension B Length Fraction | 7/8 in |
Dimension B Length Inch | 0.88 in |
Dimension Hole Size Fraction | 5/16 |
Dimension Hole Size Inch | 0.38 |
Dimension Hole Size Mm | 10 mm |
Dimension Outside Diameter Inch | 0.38 in |
Dimension Pad Width Inch | 0.55 in |
Dimension Strip Length Inch | 15/16 |
Dimension Stud Size Fraction | 5/16 |
Dimension Stud Size Inch | 5/16 |
Dimension Z Inch | 0.36 in |
Directory | CIS |
EU RoHS Indicator | Yes |
Families | 597 |
Family Description | Large Terminals & Connectors |
Feature Barrel Type | Standard |
Image Location | * Image |
Industry | ELX |
InvoiceDescription | 3 STR CU 1-HOLE SHORT 5/;3 STR CU 1-HOLE TERMINAL |
Item Number | 50125 |
Long Description | COMPRESSION TERMINAL, ELECTRO-TIN PLATED COPPER MATERIAL; WHITE COLOR; 1.88 INCH OVERALL LENGTH; 0.88 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL 467, CSA APPROVAL; 600 V TO 35 KV VOLTAGE RATING |
MSDS Form Number | * |
Material | Copper;Electro-Tin Plated Copper |
Minimum Pack Quantity | 1 |
Model | Type YA-L |
Noun | * |
Number Of Pad Holes | 1 |
Overall Length | 1.88 Inch |
Pad Size | 0.55 Inch W x 0.09 Inch Thk |
Physical Attribute Tongue Angle | Straight |
Physical Attribute Tongue Type | Standard |
Plated | Y |
Plating Type | Tin - Electro Plated |
Product Description | 3 STR CU 1-HOLE SHORT 5/ |
Product Keywords | WEBREADY |

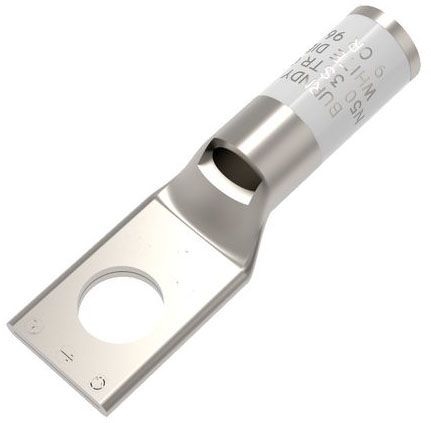

Product Name | Compression Terminal |
Product Type | TERMINAL |
ProductLine | BUR |
Rating KVA | 35 kV |
Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 15/16 IN, Tongue Angle: Straight, Die Index: 9, Temperature Rating: 90 DEG C, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W3CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W3CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U3CRT Die, (1), Y46 Tool, U3CRT Die With PUADP-1 Adapter, (1), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2), Conductor Type: Commercial Stranded Copper |
Standard | UL 486A-486B |
Standards Industry Standards Met | UL467 |
Standards RoHS Compliance Status | CM | |
Stud Size | 5/16 Inch |
Sub Brand | HYLUG |
Trade Name | HYLUG |
Type | Standard Barrel, Tin Plated |
UNSPSC | 39121405 |
UPC | 78181050125 |
Vendor Name | BURNDY PRODUCTS |
Vendor Number | 781810 |
Vendor Short Name | BUR |
Voltage Maximum | 35,000 |
Voltage Rating | 35,000 V;600 V to 35 KV |
