| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YA442NFXB |
| Additional Information | RoHS Compatible; Temperature Rating 90 Deg C; Wire Strip Length 3-7/16 Inch; Cable Entry Type Beveled Entry |
| Application | Wire Termination |
| Approval | UL, CSA |
| Barrel Length | 3.33 Inch |
| Barrel Type | Long, Belled, Standard, Straight |
| Base Price | 0.0000 |
| Brand Name | Burndy;HYLUG[TM] |
| Catalog Number | YA442NFXB |
| Color | Yellow |
| Color Code | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| Conductor Size | 1925/24 Diesel Locomotive Cable, 777.7 KCMIL (Flex), 750 KCMIL (Nom) |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | 750 kcmil G,H,777 DLO CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Bell End, Tin Plated, UL/CSA, 90C, Up to 35kV, Yellow Color Code, L115 Die Index. |
| Description Short | 750 kcmil G,H,777 DLO, CU, 2 Hole, 1/2 Stud, 1-3/4 IN Spacing, Long Barrel, Bell End |
| Description Slang | TERM FX LG BBL TN PLATE |
| Die Index | L115 |
| Dimension B Length Inch | 3.33 in |
| Dimension Bolt Hole Size Inch | 0.52 in | |
| Dimension Hole Size Fraction | 1/2 |
| Dimension Hole Size Inch | 0.56 |
| Dimension Hole Size Mm | 14 mm |
| Dimension Outside Diameter Inch | 1.50 in |
| Dimension Pad Width Inch | 2.19 in |
| Dimension Strip Length Inch | 3-7/16 in |
| Dimension Stud Size Fraction | 1/2 |
| Dimension Stud Size Inch | 1/2 in |
| Dimension Z Inch | 0.64 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Type | Long |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 750,LONG,BELLED,NEMA;2 HOLE TERM LUG |
| Item Number | 05358 |

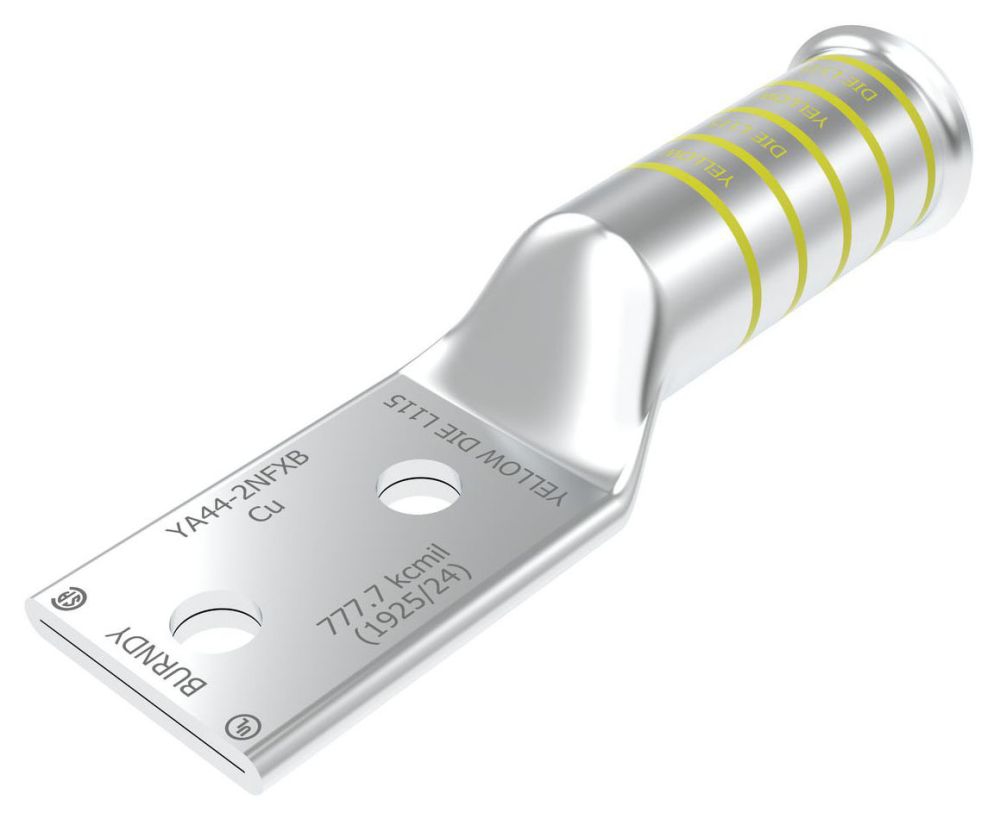

| Long Description | COMPRESSION TERMINAL, ELECTRO-TIN PLATED COPPER MATERIAL; YELLOW COLOR; 7.44 INCH OVERALL LENGTH; 3.33 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 600 V TO 35 KV VOLTAGE RATING |
| MSDS Form Number | * |
| Material | Copper;Electro-Tin Plated Copper |
| Minimum Pack Quantity | 1 |
| Model | YA-FX |
| Noun | * |
| Number Of Pad Holes | 2 |
| Overall Length | 7.44 Inch |
| Pad Hole Spacing | 1-3/4 Inch |
| Pad Size | 2.19 Inch W x 0.33 Inch Thk |
| Physical Attribute Tongue Angle | Straight |
| Physical Attribute Tongue Type | Standard |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Product Description | 750,LONG,BELLED,NEMA |
| Product Keywords | WEBREADY |
| Product Name | Compression Terminal |
| Product Type | TERMINAL |
| ProductLine | BUR |
| Rating KVA | 35 kV |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 3-7/16 IN, Tongue Angle: Straight, Die Index: L115, Temperature Rating: 90 DEG C, Color Code: Yellow, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U44XRT Die, (4), Y46 Tool, U44XRT Die With PUADP-1 Adapter, (4), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (3), Conductor Type: Flexible Copper |
| Standard | UL 486A-486B |
| Standards RoHS Compliance Status | CM |
| Stud Size | 1/2 Inch |
| Sub Brand | HYLUG |
| Trade Name | HYLUG |
| Type | Long Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC | 78181005358 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Maximum | 35,000 |
| Voltage Rating | 35,000 V;600 V to 35 kV |
