| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YA4CL1BOX |
| Additional Information | RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 7/8 Inch; Cable Entry Type Beveled Entry, Chamfered |
| Application | Wire Termination |
| Approval | UL, CSA |
| Barrel Length | 0.81 Inch |
| Barrel Type | Short, Skived, Standard, Straight |
| Base Price | 0.0000 |
| Brand Name | HYLUG[TM] |
| Catalog Number | YA4CL1BOX |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Color | Gray |
| Color Code | Gray |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| Conductor Size | 4 AWG Stranded (Code) |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

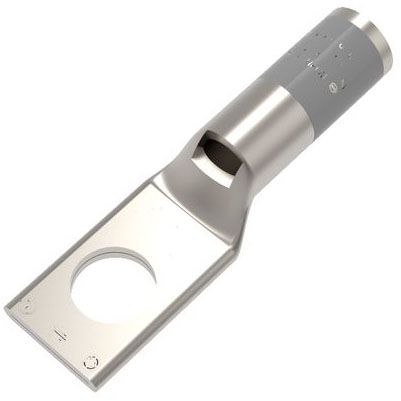

| Description Long | 4 AWG CU, One Hole, #8-#10 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90 Up to 35kV, GRAY Color Code, 8 or 346 Die Index. |
| Description Short | 4 AWG, CU, 1 Hole, #8-#10 Stud, Standard Barrel, Inspection WIndow |
| Description Slang | TERM CODE STD BBL TNBULK |
| Die Index | 8 |
| Dimension B Length Fraction | 13/16 in |
| Dimension B Length Inch | 0.81 in |
| Dimension Bolt Size Fraction | #8-#10 |
| Dimension Bolt Size Inch | 0.21 |
| Dimension D Inch | 0.49 in |
| Dimension Hole Size Fraction | #8-#10 |
| Dimension Hole Size Inch | 0.21 |
| Dimension Hole Size Mm | 5 mm |
| Dimension L Length Overall Mm | 40 mm |
| Dimension Length Overall Inch | 1.58 in |
| Dimension N Inch | 0.25 in |
| Dimension Outside Diameter Inch | 0.34 in |
| Dimension Pad Width Inch | 0.50 in |
| Dimension Strip Length Inch | 7/8 |
| Dimension Stud Size Fraction | #8-#10 |
| Dimension Stud Size Inch | #8;#10 |
| Dimension Z Inch | 0.24 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands;Standard barrel length is recommended for installations with limited space availability;Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements;Connectors are clearly marked with stamping and barrel color coding |
| FV BuyAmericanCompliant | Yes | |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered;Skived |
| Feature Barrel Type | Standard |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 4 STR CU 1-HOLE SHORT 8-;4AWG COP 1H LUG |
| Item Number | 55240 |
| Long Description | COMPRESSION TERMINAL, ELECTRO-TIN PLATED COPPER MATERIAL; GRAY COLOR; 1.58 INCH OVERALL LENGTH; 0.81 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 600 V TO 35 KV VOLTAGE RATING; 4 AWG STRANDED (CODE) CONDUCTOR SIZE; #8 TO #10 STUD SIZE |
| MSDS Form Number | * |
| Material | COPPER;Electro-Tin Plated Copper |
| Model | YA-L |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 1.58 Inch |
| Pad Size | 0.5 Inch W x 0.09 Inch Thk |
| Product Description | 4 STR CU 1-HOLE SHORT 8- |
| Product Keywords | WEBREADY |
| Product Name | Cable or wire lugs |
| ProductLine | BUR |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Wire Strip Length: 7/8 IN, Finish: Electro-Tin Plated, Tongue Angle: Straight, Package: Box, Die Index: 8, Color Code: Gray, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U4CRT, U6CABT Die, (1), Y46 Tool, U4CRT, U6CABT Die With PUADP-1 Adapter, (1), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2), Conductor Type: Commercial Stranded Copper |
| Standard | UL 486A-486B |
| Stud Size | #8 to #10 |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC | 78181055240 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 600 V to 35 kV |
