| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YA6CL6 |
| Additional Information | RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 9/16 Inch; Cable Entry Type Beveled Entry, Chamfered |
| Application | Wire Termination |
| Approval | UL, CSA |
| Barrel Length | 0.54 Inch |
| Barrel Type | Short, Skived, Standard, Straight |
| Base Price | 0.0000 |
| Brand Name | HYLUG[TM] |
| Catalog Number | YA6CL6 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Color | Blue |
| Color Code | Blue |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| Conductor Size | 6 AWG Stranded (Code) |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

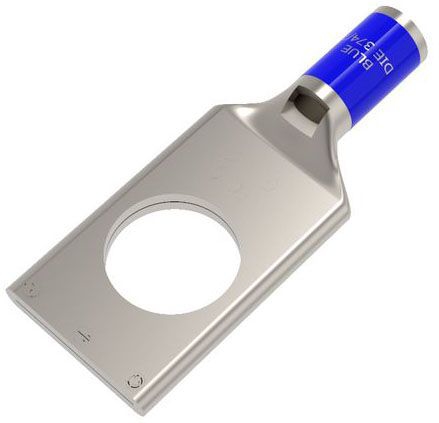

| Description Long | 6 AWG CU, One Hole, 1/2 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90 Up to 35kV, BLUE Color Code, 7 or 374 Die Index. |
| Description Short | 6 AWG, CU, 1 Hole, 1/2 Stud, Standard Barrel, Inspection WIndow |
| Description Slang | CU TERM CODE STD BBL TN |
| Die Index | 7;7/374 |
| Dimension B Length Fraction | 9/16 in |
| Dimension B Length Inch | 0.54 in |
| Dimension Bolt Hole Size Inch | 0.52 in |
| Dimension Bolt Size Fraction | 1/2 |
| Dimension Bolt Size Inch | 0.5 |
| Dimension D Inch | 1.08 in |
| Dimension Hole Size Fraction | 1/2 |
| Dimension Hole Size Inch | 0.53 |
| Dimension Hole Size Mm | 13.5 mm |
| Dimension L Length Overall Mm | 47 mm |
| Dimension Length Overall Inch | 1.87 in |
| Dimension N Inch | 0.53 in |
| Dimension Outside Diameter Inch | 0.29 in |
| Dimension Pad Width Inch | 0.75 in |
| Dimension Strip Length Inch | 9/16 |
| Dimension Stud Size Fraction | 1/2 |
| Dimension Stud Size Inch | 1/2 |
| Dimension Z Inch | 0.55 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands;Standard barrel length is recommended for installations with limited space availability;Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements;Connectors are clearly marked with stamping and barrel color coding | |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered;Skived |
| Feature Barrel Type | Standard |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | CULUG-6STR-SHORT-1/2STUD;6AWG COP 1H LUG |
| Item Number | 01896 |
| Long Description | LUG, ELECTRO-TIN PLATED COPPER MATERIAL; BLUE COLOR; 1.87 INCH OVERALL LENGTH; 0.54 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 600 V TO 35 KV VOLTAGE RATING; 6 AWG STRANDED (CODE) CONDUCTOR SIZE; 1/2 INCH STUD SIZE; 7/374 DIE INDEX |
| MSDS Form Number | * |
| Material | COPPER;Electro-Tin Plated Copper |
| Model | YA-L |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 1.87 Inch |
| Pad Size | 0.75 Inch W x 0.12 Inch Thk |
| Product Description | CULUG-6STR-SHORT-1/2STUD |
| Product Keywords | WEBREADY |
| Product Name | Cable or wire lugs |
| ProductLine | BUR |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 7/16 IN, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Die Index: 7, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W5CVT, W5CRT, X5CRT, X8CART Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W5CVT,W5CRT, X5CRT, X8CART Die, (1), Y35, Y39, Y750, PAT750 Tool, U5CRT, UBCABT Die, (1), Y46 Tool, U5CRT, UBCABT Die With PUADP-1 Adapter, (1), Color Code: Blue, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, Y1MRTC, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1) |
| Standard | UL 486A-486B |
| Stud Size | 1/2 Inch |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC | 78181001896 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 600 V to 35 kV |
