| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YA6CT4 |
| Additional Information | RoHS Compatible; Wire Strip Length 1-3/16 Inch; Cable Entry Type Chamfered |
| Application | Wire Termination |
| Approval | UL, CSA |
| Barrel Length | 1.12 Inch |
| Barrel Type | Long, Straight |
| Base Price | 0.0000 |
| Bolt Size | 0.38 |
| Brand Name | HYLUG[TM] |
| Catalog Number | YA6CT4 |
| Certification CSA Approved | Yes |
| Color | Blue |
| Color Code | Blue |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| Conductor Size | 6 AWG Solid/Stranded |
| Conductor Type | CODE |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Short | Copper Compression Terminal |
| Description Slang | TERM CODE LG BBL MISC |
| Die Index | 7 |
| Dimension B Length Inch | 1.12 in |
| Dimension Bolt Hole Size Inch | 0.39 in |
| Dimension Hole Size Fraction | 3/8 |
| Dimension Hole Size Inch | 0.41 |
| Dimension Hole Size Mm | 10.4 mm |
| Dimension Outside Diameter Inch | 0.29 in |
| Dimension Pad Width Inch | 0.58 in |
| Dimension Strip Length Inch | 1-3/16 |
| Dimension Stud Size Fraction | 3/8 |
| Dimension Z Inch | 0.36 in | |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Type | Long |
| Finish | Tin-Plated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | CULUG- 6STR-LONG-3/8STUD;6AWG 1HL LUG |
| Item Number | 17306 |
| Long Description | COMPRESSION CABLE LUG, TIN PLATED COPPER MATERIAL; BLUE COLOR; 2.13 INCH OVERALL LENGTH; 1.12 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 6 AWG SOLID/STRANDED CONDUCTOR SIZE; 3/8 INCH STUD SIZE; 7 DIE INDEX |
| MSDS Form Number | * |
| Material | Copper;Tin Plated Copper |
| Minimum Pack Quantity | 100 |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 2.13 Inch |
| Pad Size | 0.58 Inch W x 0.06 Inch Thk |
| Plated | Y |
| Plating Type | Tin |
| Product Description | CULUG- 6STR-LONG-3/8STUD |
| Product Keywords | WEBREADY |

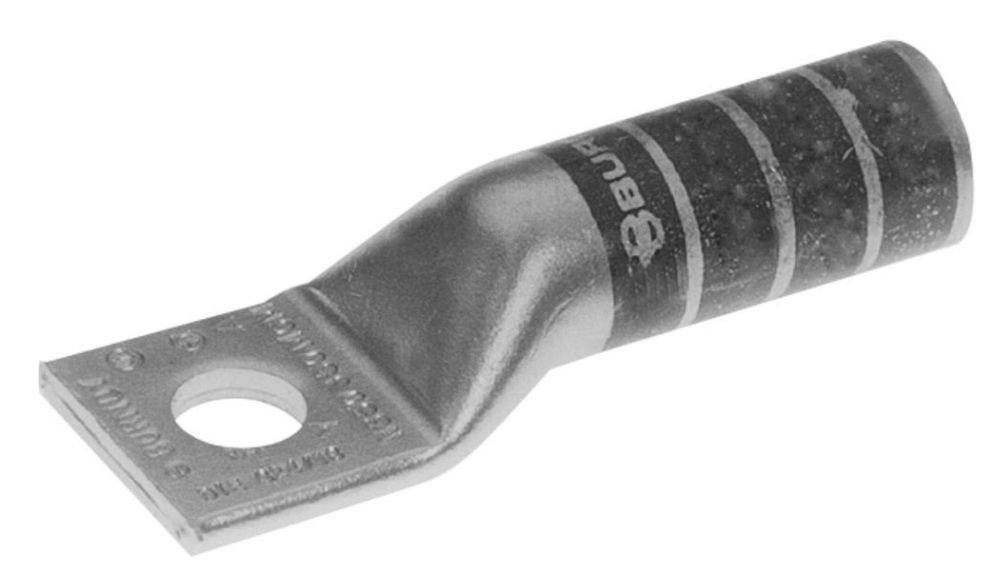

| Product Name | "YA6CT4, Compression Terminal, #6 AWG Cu, 1-Hole, 3/8"" Stud, Long Barrel" |
| Product Type | TERMINAL |
| ProductLine | BUR |
| Rating KVA | 35 kV |
| Special Features | UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available,Tongue Angle: Straight |
| Standard | UL 486A-486B |
| Standards RoHS Compliance Status | CM |
| Stud Size | 3/8 Inch |
| Temperature Rating Maximum | 194 |
| Temperature Rating Minimum | 194 |
| Trade Name | HYLUG |
| Type | Terminal |
| UNSPSC | 39121448 |
| UPC | 78181017306 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Maximum | 35000 |
| Voltage Rating | 35 kV |
