| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YA8CL2BOX |
| Additional Information | RoHS Compliant; Cable Entry Type Chamfered, Beveled Entry; Wire Strip Length 7/16 Inch; Temperature Rating 90 Deg C; With Inspection Window |
| Application | Wire Termination |
| Approval | UL, CSA |
| Barrel Length | 0.44 Inch |
| Barrel Type | Standard, Straight, Non-Insulated |
| Base Price | 0.0000 |
| Brand Name | Burndy;HYLUG , HYDENT |
| Catalog Number | YA8CL2BOX |
| Color | Red |
| Color Code | Red |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| Conductor Size | 6 AWG Solid, 8 AWG Stranded (Code), 23 (Navy), 37/24 (DLO), 8 AWG (Flex) |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

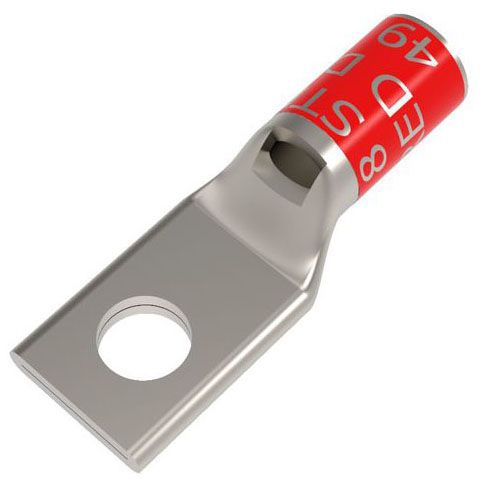

| Description Long | 8 AWG CU, One Hole, 5/16 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90 Up to 35kV, RED Color Code, 49 Die Index. |
| Description Short | 8 AWG, CU, 1 Hole, 5/16 Stud, Standard Barrel, Inspection WIndow |
| Description Slang | TERM CODE STD BBL TNBULK | |
| Die Index | 49 |
| Dimension B Length Inch | 0.44 in |
| Dimension Bolt Hole Size Inch | 0.33 in |
| Dimension Hole Size Fraction | 5/16 |
| Dimension Hole Size Inch | 0.38 |
| Dimension Hole Size Mm | 10 mm |
| Dimension Outside Diameter Inch | 0.27 in |
| Dimension Pad Width Inch | 0.52 in |
| Dimension Strip Length Inch | 7/16 |
| Dimension Stud Size Fraction | 5/16 |
| Dimension Stud Size Inch | 5/16 |
| Dimension Z Inch | 0.36 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Type | Standard |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 8 STR CU 1-HOLE 5/16;8AWG ALCU 1H LUG |
| Item Number | 52568 |
| Long Description | COMPRESSION TERMINAL, ELECTRO TIN PLATED COPPER MATERIAL; RED COLOR; 1.38 INCH OVERALL LENGTH; 0.44 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 35 KILOVOLT VOLTAGE RATING |
| MSDS Form Number | * |
| Material | Copper;Electro Tin Plated Copper |
| Minimum Pack Quantity | 1 |
| Model | YA-L |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 1.38 Inch |
| Pad Size | 0.52 Inch Width x 0.06 Inch Thickness |
| Physical Attribute Tongue Angle | Straight |
| Physical Attribute Tongue Type | Standard |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Product Description | 8 STR CU 1-HOLE 5/16 |
| Product Keywords | WEBREADY |
| Product Name | Compression Terminal |
| Product Type | TERMINAL |
| ProductLine | BUR |
| Rating KVA | 35 kV |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Wire Strip Length: 1/2 IN, Tongue Angle: Straight, Package: Box, Die Index: 49, Color Code: Red, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W8CVT, W8CRT, X8CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W8CVT, W8CRT, X8CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U8CRT Die, (1), Y46 Tool, U8CRT Die With PUADP-1 Adapter, (1), Conductor Type: Commercial Stranded Copper, Flexible Copper, Solid Copper, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, Y1MRTC, Y8MRB-1, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1) |
| Standard | UL 486A-486B |
| Standards RoHS Compliance Status | CM |
| Stud Size | 5/16 Inch |
| Sub Brand | HYLUG |
| Trade Name | HYLUG |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC | 78181052568 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Maximum | 35,000 |
| Voltage Rating | 35,000 V;35 Kilovolt |
