| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YAV10BOX |
| Additional Information | DIMENSION 0.97 INCH LENGTH X 0.38 INCH WIDTH; SEAMLESS TUBULAR CRIMP BARREL; MATERIAL ELECTROLYTIC COPPER |
| Aluminum Copper Conductor Size | 10 AWG Solid/Stranded |
| Application | Industrials, Hospitals, Utilities, Marine, Computer |
| Application For Use On | Copper Commercial (Code) Cable, Type AN Aircraft Cable, Extra Flexible Conductors |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | HYLUG[TM] |
| Catalog Number | YAV10BOX |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

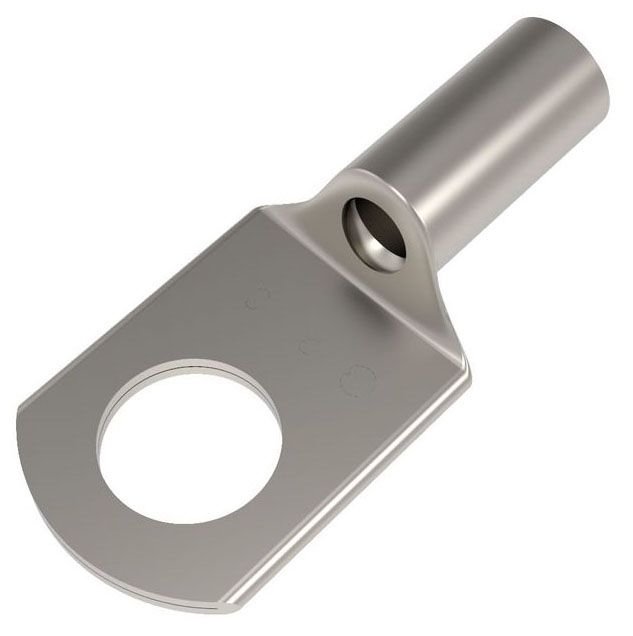

| Description Long | CU Compression Terminal Code Conductor, Bevelled Entry, 1 Hole/W/InspWindow, #14-#10(Str) #12-#10(Sol), 600V-35kV, #8-#10 Stud, Standard Barrel, Tin Plated. |
| Description Marketing Copy | YAV10BOX. |
| Description Short | Copper Compression Lug, Seamless Barrel, Wire Size #14 - #10 Str and Sol, #10 Stud Size |
| Dimension B Length Fraction | 2/5 |
| Dimension B Length Inch | 0.40 in |
| Dimension Bolt Size Fraction | #8 - #10 |
| Dimension L Length Overall Mm | 25 mm |
| Dimension Length Overall Inch | 0.97 in |
| Dimension Pad Width Inch | 0.38 in |
| Dimension Strip Length Inch | 7/16 in |
| Dimension Stud Size Inch | #8;#10 |
| Dimension Z Inch | 0.25 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity, low resistance and excellent ductility for crimping;Seamless tubular crimp barrel design - No seams to split resulting in a very high quality electrical connection, also can be used on solid conductor;Double thick tongue structurally a very strong terminal tongue;Produced from tubular copper, extra copper material assures the compression connector will operate cooler than the conductors it connects;Internally bevelled barrel for easy cable entry, especially for flexible conductors;Inspection hole provides easy visual check for proper conductor insertion;Electro-tin plated for a long lasting durable corrosion resistance |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| FV Conductor Copper Solid Size Range | 12 AWG-10 AWG |
| FV Conductor Copper Str Size Range | 14 AWG-10 AWG |
| FV Dimension Bolt Size Fraction | #8 - #10 |
| FV Industry Standard S | UL467;Military Specified (Mil-Spec) |
| FV Product Family | COMPRESSION |
| FV Standards Industry Standards Met | UL486 |
| FV Trade Name | HYLUG |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered |
| Feature Barrel Type | Standard |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | RING- 12- 10 AWG - UNIN, GRAY JAR LID;12-10 RING LUG |
| Item Number | 54150 |
| Long Description | COMPRESSION RING TONGUE TERMINAL, SEAMLESS, BEVELED, HEAVY DUTY, STANDARD BARREL TYPE; COPPER MATERIAL; 0.97 INCH OVERALL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; #8 TO #10 STUD SIZE |
| MSDS Form Number | * |
| Material | Copper |
| Military Specification | AS20659 | |
| Model | YAV |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 0.97 Inch |
| Pad Size | 0.4 Inch Length x 0.38 Inch Width x 0.06 Inch Thickness |
| Product Description | RING- 12- 10 AWG - UNIN, GRAY JAR LID |
| Product Keywords | WEBREADY |
| Product Name | Cable or wire lugs |
| ProductLine | BUR |
| Special Features | Features: Seamless uninsulated compression heavy duty ring tongue terminal. HYLUG Type YAV is a seamless, heavy duty uninsulated compression ring tongue terminal made from pure electrolytic copper tubing for use on copper commercial (Code) cable, Type AN aircraft cable and extra flexible conductors. Its seamless design also accommodates solid conductors. Double thick tongue provides a strong connector for demanding applications requiring high reliability. Applications include: industrials, hospitals, electric utilities, aircraft, shipboard and marine, steel mills, computers, mining equipment and other equipment subject to vibration. HYLUG Type YAV provides maximum conductivity, low resistance and excellent ductility. Seamless tubular crimp barrel has no seams to split for a very high quality electrical connection. Extra copper material assures the compression connector operates cooler than the conductors it connects. Internally bevelled barrel provides easy cable entry, especially for flexible conductors. Inspection hole provides visual check for proper conductor insertion. Nickel plating available, add -NK suffix. |
| Standard | UL467;Military Specified (Mil-Spec) |
| Stud Size | #8 to #10 |
| Type | Ring Tongue;Seamless, Beveled, Heavy Duty, Standard Barrel |
| UNSPSC | 39121405 |
| UPC | 78181054150 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
