| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YAV14BOX |
| Additional Information | RoHS Compatible; Dimension 0.79 Inch L x 0.29 Inch W; Seamless Tubular Crimp Barrel; Material Electrolytic Tin Plated Copper; Wire Strip Length 9/32 Inch |
| Application | For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Industrials, Hospitals, Electric Utilities, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | HYLUG[TM] |
| Catalog Number | YAV14BOX |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

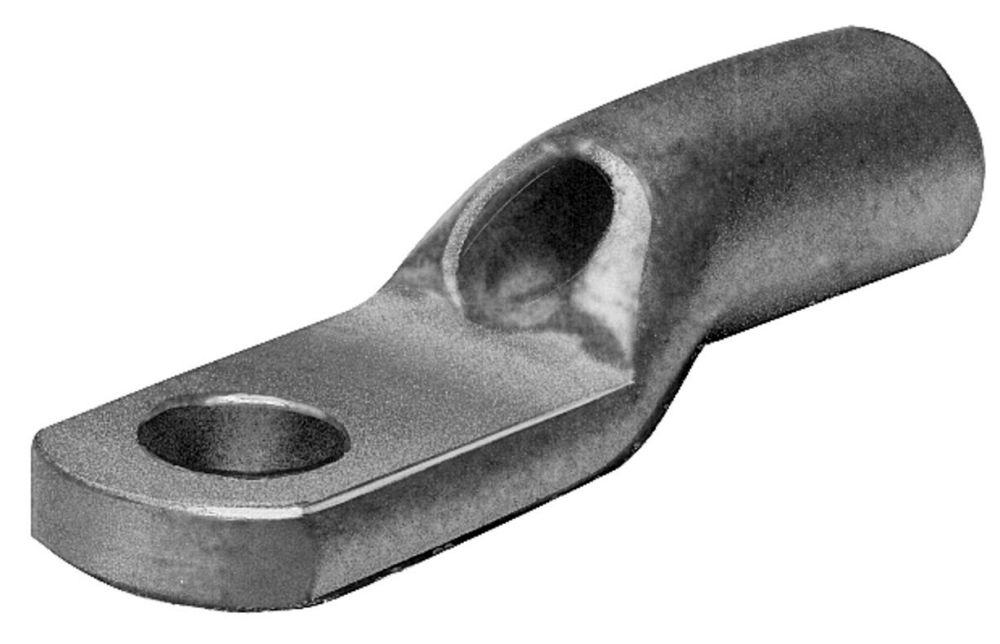

| Description Long | "Copper Compression Lug, Ring Tongue w/ Inspection Hole, 1 Hole, 20-14 AWG/20-12 AWG, #8-#10 Stud, Short Barrel, Tin Plated,Wire strip length:9/32""." |
| Description Marketing Copy | YAV14BOX. |
| Description Short | Uninsulated Ring Terminal For 16 - 14 AWG |
| Dimension B Length Fraction | 1/4 in |
| Dimension B Length Inch | 0.25 in |
| Dimension Bolt Size Fraction | #8 - #10 |
| Dimension D Inch | 0.40 in |
| Dimension L Length Overall Mm | 20 mm |
| Dimension Length Overall Inch | 0.78 in |
| Dimension N Inch | 0.16 in |
| Dimension Outside Diameter Inch | 0.16 in |
| Dimension Pad Width Inch | 0.30 in |
| Dimension Strip Length Inch | 9/32 in |
| Dimension Stud Size Inch | #8;#10 |
| Dimension Z Inch | 0.24 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity, low resistance and excellent ductility for crimping;Seamless tubular crimp barrel design - No seams to split resulting in a very high quality electrical connection, also can be used on solid conductor;Double thick tongue structurally a very strong terminal tongue;Produced from tubular copper, extra copper material assures the compression connector will operate cooler than the conductors it connects;Internally bevelled barrel for easy cable entry, especially for flexible conductors;Inspection hole provides easy visual check for proper conductor insertion;Electro-tin plated for a long lasting durable corrosion resistance |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| FV Conductor Copper Solid Size Range | 20 AWG -12 AWG |
| FV Conductor Copper Str Size Range | 20 AWG - 14 AWG |
| FV Dimension Bolt Size Fraction | #8 - #10 |
| FV Industry Standard S | UL467 |
| FV Product Family | COMPRESSION |
| FV Standards Industry Standards Met | UL486 | |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered |
| Feature Barrel Type | Standard |
| Image Location | * Image |
| Industry | ELX |
| Insulation Type | Non-Insulated |
| InvoiceDescription | RING- 20- 14 AWG - UNIN;20-14 RING LUG |
| Item Number | 54220 |
| Long Description | COMPRESSION RING TONGUE TERMINAL, BEVELED, HEAVY DUTY TYPE; 20 AWG SOLID/STRANDED MIN. CONDUCTOR SIZE; 12 AWG SOLID, 14 AWG STRANDED MAX. CONDUCTOR SIZE; UL, CSA APPROVAL; #8 TO #10 STUD SIZE; NON-INSULATED INSULATION TYPE; HYLUG[TM] BRAND |
| MSDS Form Number | * |
| Material | Copper |
| Maximum Conductor Size | 12 AWG Solid, 14 AWG Stranded |
| Minimum Conductor Size | 20 AWG Solid/Stranded |
| Model | YAV BOX |
| Noun | * |
| Product Description | RING- 20- 14 AWG - UNIN |
| Product Keywords | WEBREADY |
| Product Name | Cable or wire lugs |
| ProductLine | BUR |
| Special Features | Features: Seamless Uninsulated Compression Heavy Duty Ring Tongue Terminal, HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Ring Tongue Terminal Manufactured From Pure Electrolytic Copper Tubing And Is For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Because Of Its Seamless Design, The YAV HYLUG Also Accommodates Solid Conductors, The Seamless Tubing Produces A Double Thick Tongue And A Strong Connector For Demanding Applications That Require High Reliability, Applications Include Industrials, Hospitals, Electric Utilities, Air Craft, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance, Manufactured From Seamless Pure Electrolytic Copper Tubing: Provides Maximum Conductivity, Low Resistance And Excellent Ductility For Crimping, Seamless Tubular Crimp Barrel Design: No Seams To Split Resulting In A Very High Quality Electrical Connection, Also Can Be Used On Solid Conductor, Double Thick Tongue: Provides A Very Strong Terminal Tongue, Produced From Tubular Copper: Extra Copper Material Assures The Compression Connector Will Operate Cooler Than The Conductors It Connects, Internally Bevelled Barrel: Provides Easy Cable Entry, Especially For Flexible Conductors, Inspection Hole: Provides Easy Visual Check For Proper Conductor Insertion, Electro-Tin Plated: Provides Long Lasting Durable Corrosion Resistance, Nickel Plating Available, Add NK Suffix: Nickel Plated HYLUG Provide High Temperature Applications Up To 650 DEG F Continuous Service And 750 DEG F Intermittent Service, The YAV-HYLUG Terminals Meet The Requirements Of SAE-AS7928, Package: Box, Wire Shroud: No, Installation Tool: Non-Ratchet: Y10D, Y1022 Tool, Ratchet: MR8-G98, MR8-9Q, Y8MRB-1, MR20 Tool, Wire Strip Length: 9/32 IN, Conductor Type: Commercial/Military Stranded Copper, Tongue Angle: Straight, Finish: Electro-Tin Plated |
| Standard | UL467 |
| Stud Size | #8 to #10 |
| Type | Ring Tongue;Beveled, Heavy Duty |
| UNSPSC | 39121405 |
| UPC | 78181054220 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
