| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YAV14T2 |
| Additional Information | Voltage Rating 600 Volt; Overall Length 1.16 Inch; Material Copper |
| Application | For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Industrials, Hospitals, Electric Utilities, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance |
| Approval | UL 467/486 |
| Base Price | 0.0000 |
| Brand Name | HYLUG[TM] |
| Catalog Number | YAV14T2 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

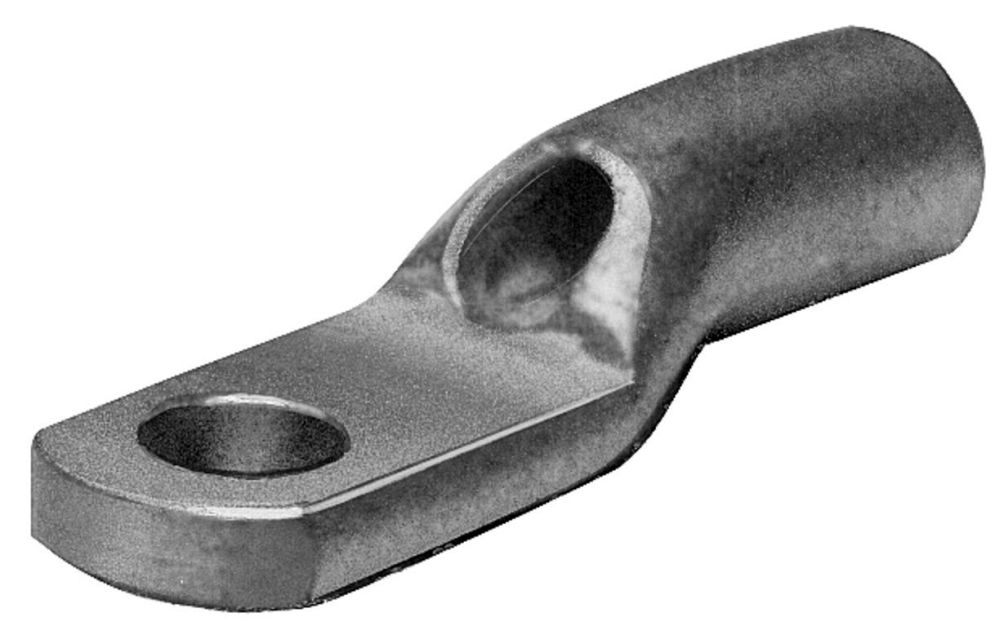

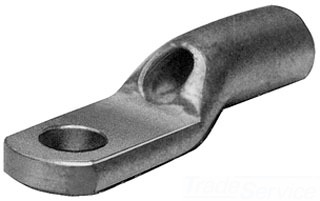

| Description Long | "Copper Compression Lug, Heavy Duty, Ring Tongue, 1 Hole w/ Inspection Hole, 20-14 AWG, 1/4"" Stud, Short Barrel, Tin Plated." |
| Description Marketing Copy | YAV14T2. |
| Description Short | Uninsulated Ring Terminal For 16 - 14 AWG |
| Dimension B Length Inch | 0.25 in |
| Dimension Bolt Size Fraction | 1/4 |
| Dimension L Length Overall Mm | 25 mm |
| Dimension Length Overall Inch | 0.99 in |
| Dimension N Inch | 0.25 in |
| Dimension Outside Diameter Inch | 0.16 in |
| Dimension Pad Width Inch | 0.42 in |
| Dimension Stud Size Inch | 1/4 |
| Dimension Z Inch | 0.32 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity, low resistance and excellent ductility for crimping;Seamless tubular crimp barrel design - No seams to split resulting in a very high quality electrical connection, also can be used on solid conductor;Double thick tongue structurally a very strong terminal tongue;Produced from tubular copper, extra copper material assures the compression connector will operate cooler than the conductors it connects;Internally bevelled barrel for easy cable entry, especially for flexible conductors;Inspection hole provides easy visual check for proper conductor insertion;Electro-tin plated for a long lasting durable corrosion resistance |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| FV Conductor Copper Solid Size Range | 20 -14 AWG |
| FV Conductor Copper Str Size Range | 20 AWG - 14 AWG |
| FV Dimension Bolt Size Fraction | 1/4 |
| FV Industry Standard S | UL467 |
| FV Product Family | COMPRESSION |
| FV Standards Industry Standards Met | UL486 |
| FV Trade Name | HYLUG |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered |
| Feature Barrel Type | Standard |
| Image Location | * Image |
| Industry | ELX |
| Insulation Type | Non-Insulated |
| InvoiceDescription | 20-14 HVYDTY RING 1/4 ST,0.99 IN L;20-14 RING LUG |
| Item Number | 02532 |
| Long Description | COMPRESSION RING TONGUE TERMINAL, HEAVY DUTY TYPE; 12 AWG MIN. CONDUCTOR SIZE; 10 AWG MAX. CONDUCTOR SIZE; UL 467/486 APPROVAL; 50 PER PACK STANDARD PACKAGE; 1/4 INCH STUD SIZE; NON-INSULATED INSULATION TYPE; HYLUG[TM] BRAND; VOLTAGE RATING 600 VOLT |
| MSDS Form Number | * |
| Material | Copper |
| Maximum Conductor Size | 10 AWG |
| Minimum Conductor Size | 12 AWG |
| Minimum Pack Quantity | 1,000 |
| Noun | * |
| Pallet Quantity | 99999 | |
| Product Description | 20-14 HVYDTY RING 1/4 ST,0.99 IN L |
| Product Keywords | WEBREADY |
| Product Name | Cable or wire lugs |
| ProductLine | BUR |
| Special Features | Features: Seamless Uninsulated Compression Heavy Duty Ring Tongue Terminal, HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Ring Tongue Terminal Manufactured From Pure Electrolytic Copper Tubing And Is For Use On Copper Commercial (Code) Cable, Type AN Aircraft Cable And Extra Flexible Conductors, Because Of Its Seamless Design, The YAV HYLUG Also Accommodates Solid Conductors, The Seamless Tubing Produces A Double Thick Tongue And A Strong Connector For Demanding Applications That Require High Reliability, Applications Include Industrials, Hospitals, Electric Utilities, Air Craft, Shipboard And Marine, Computers, Steel Mills, Mining Equipment And Other Equipment That Is Subject To Vibration Or Requiring Dependable Electrical Performance, Manufactured From Seamless Pure Electrolytic Copper Tubing: Provides Maximum Conductivity, Low Resistance And Excellent Ductility For Crimping, Seamless Tubular Crimp Barrel Design: No Seams To Split Resulting In A Very High Quality Electrical Connection, Also Can Be Used On Solid Conductor, Double Thick Tongue: Provides A Very Strong Terminal Tongue, Produced From Tubular Copper: Extra Copper Material Assures The Compression Connector Will Operate Cooler Than The Conductors It Connects, Internally Bevelled Barrel: Provides Easy Cable Entry, Especially For Flexible Conductors, Inspection Hole: Provides Easy Visual Check For Proper Conductor Insertion, Electro-Tin Plated: Provides Long Lasting Durable Corrosion Resistance, Nickel Plating Available, Add NK Suffix: Nickel Plated HYLUG Provide High Temperature Applications Up To 650 DEG F Continuous Service And 750 DEG F Intermittent Service, The YAV-HYLUG Terminals Meet The Requirements Of SAE-AS7928, Package: Bulk, Wire Shroud: No, Installation Tool: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: Y8MRB-1, MR20, MR8G98, MR8-9Q Tool, Conductor Type: Commercial/Military Stranded Copper, Wire Strip Length: 9/32 IN, Tongue Angle: Straight, Finish: Electro-Tin Plated |
| Standard | UL467 |
| Standard Package | 50 per Pack |
| Stud Size | 1/4 Inch |
| Type | Ring Tongue;Heavy Duty |
| UNSPSC | 39121405 |
| UPC | 78181002532 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
