| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YAV25L |
| Additional Information | RoHS Compatible; Dimension 2.03 Inch L x 0.81 Inch W; Material Electrolytic Tin Plated Copper; Wire Strip Length 11/16 Inch; Die Index 43; Used On AN Type Aircraft Cable, Extra Flexible Conductor and Commercial Conductor |
| Application | Industrials, Hospitals, Utilities, Marine, Computer |
| Application For Use On | Copper Commercial (Code) Cable, Type AN Aircraft Cable, Extra Flexible Conductors |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | HYLUG[TM] |
| Catalog Number | YAV25L |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | "Copper Compression Lug, Heavy Duty, Ring Tongue, 1 Hole w/ Inspection Hole, AN-1/0 Flex, 3/8"" Stud, Short Barrel, Electro-Tin Plated." |
| Description Marketing Copy | YAV25L. |

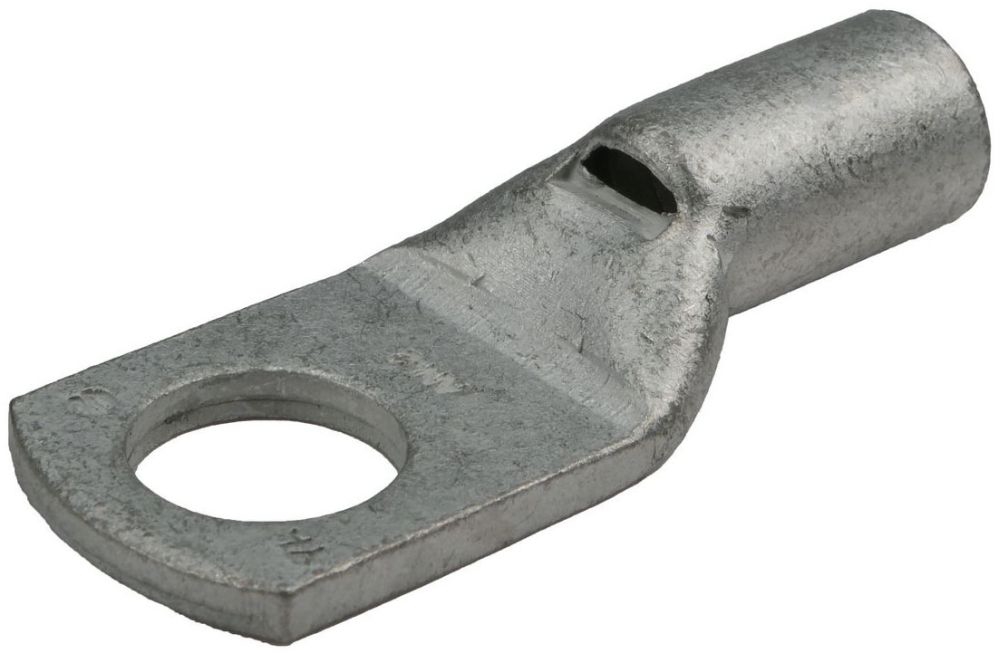

| Description Short | "Copper Compression Lug, Heavy Duty, Ring Tongue, 1 Hole w/ Inspection Hole, AN-1/0 Flex, 3/8"" Stud, Short Barrel, Electro-Tin Plated" |
| Die Index | 43 |
| Dimension B Length Inch | 0.69 in |
| Dimension Bolt Hole Size Inch | 0.39 in |
| Dimension Bolt Size Fraction | 3/8 |
| Dimension D Inch | 0.85 in |
| Dimension Hole Size Mm | 10 mm |
| Dimension Length Overall Inch | 2.03 in |
| Dimension N Inch | 0.42 in |
| Dimension Outside Diameter Inch | 0.56 in |
| Dimension Pad Width Inch | 0.81 in |
| Dimension Strip Length Inch | 11/16 |
| Dimension Z Inch | 0.43 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity, low resistance and excellent ductility for crimping;Seamless tubular crimp barrel design - No seams to split resulting in a very high quality electrical connection, also can be used on solid conductor;Double thick tongue structurally a very strong terminal tongue;Produced from tubular copper, extra copper material assures the compression connector will operate cooler than the conductors it connects;Internally bevelled barrel for easy cable entry, especially for flexible conductors;Inspection hole provides easy visual check for proper conductor insertion;Electro-tin plated for a long lasting durable corrosion resistance |
| FV BuyAmericanCompliant | No |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Conductor Copper Solid Size Range | 1/0 |
| FV Conductor Copper Str Size Range | 1/0 AWG |
| FV Dimension Bolt Hole Size Inch | 0.39 in |
| FV Dimension Bolt Size Fraction | 3/8 |
| FV Industry Standard S | UL467;Military Specified (Mil-Spec) | |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered |
| Feature Barrel Type | Standard |
| Image Location | * Image |
| Industry | ELX |
| Insulation Type | Non-Insulated |
| InvoiceDescription | 1/0 HVYDTY RING 3/8 STUD,2.028 IN L;1/0AWG RING LUG |
| Item Number | 02564 |
| Long Description | RING TONGUE COMPRESSION TERMINAL, BEVELED, HEAVY DUTY TYPE; 1/0 AWG (AIRCRAFT/FLEX) MAX. CONDUCTOR SIZE; UL, CSA APPROVAL; 3/8 INCH STUD SIZE; NON-INSULATED INSULATION TYPE; HYLUG[TM] BRAND; ROHS COMPATIBLE; DIMENSION 2.03 INCH L X 0.81 INCH W |
| MSDS Form Number | * |
| Material | Copper |
| Maximum Conductor Size | 1/0 AWG (Aircraft/Flex) |
| Model | YAV-L |
| Noun | * |
| Product Description | 1/0 HVYDTY RING 3/8 STUD,2.028 IN L |
| Product Keywords | WEBREADY |
| Product Name | Cable or wire lugs |
| ProductLine | BUR |
| Special Features | Features: HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Terminal Manufactured From Electrolytic Copper And Is For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, The Seamless Tubing Produces A Double Thick Tongue And Seamless Barrel Design Provides A Strong Connector For Demanding Applications Requiring High Reliability, Applications Include Aircraft, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance, The YAV HYLUG Terminals Meet The Requirements Of SAE-AS7928 And Are Listed Per AS20659 For Use With Copper Aircraft Cable Per MIL-W-5086, The Benefits Of YAV-L Connectors Are The Same As YAV Connectors For Stranded Conductors, Ms20659 Dash Number: -118, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29NC, Y29B Tool, DV25L Die Nest, Y29PR Die Indentor, (1) Crimp, Y35, Y39 Tool, UV25L Die Nest, Y35P3 Die Indentor, (1) Crimp, Y750 Tool, UV25L Die Nest, Y34PA Die Indentor, (1) Crimp, Package: Bulk, Die Index: 43, Wire Strip Length: 11/16 IN, Installation Tool: HYTOOL: Non-Ratchet: MY28, MY29-11 Tool, Finish: Electro-Tin Plated |
| Standard | UL467;Military Specified (Mil-Spec) |
| Stud Size | 3/8 Inch |
| Type | Ring Tongue;Beveled, Heavy Duty |
| UNSPSC | 39121405 |
| UPC | 78181002564 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
