| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YAV25LTC38FX |
| Additional Information | RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 11/16 Inch; Cable Entry Type Beveled Entry, Chamfered |
| Application | Wire Termination |
| Approval | UL, CSA |
| Barrel Length | 0.69 Inch |
| Barrel Type | Short, Standard, Straight |
| Base Price | 0.0000 |
| Brand Name | HYLUG[TM] |
| Catalog Number | YAV25LTC38FX |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Color | Pink |
| Color Code | Pink |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| Conductor Size | 275/24 Diesel Locomotive Cable, 1/0 AWG Class G/H/I (Weld Flex), 1/0 AWG Stranded |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

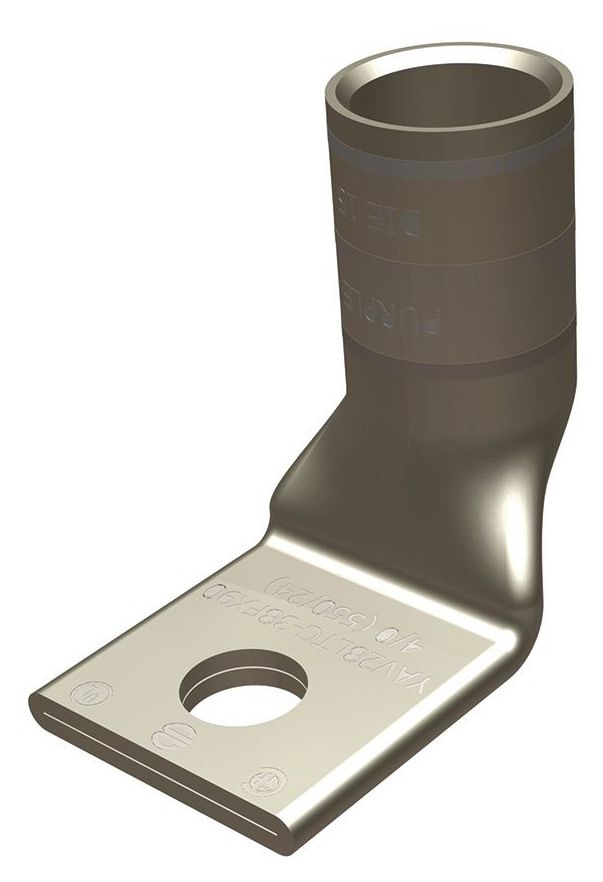

| Description Long | "Copper Compression Lug, 1 Hole w/ Inspection Window, 1/0 Flex, 3/8"" Stud, Short Barrel, Tin Plated." |
| Description Short | 1/0 Flex G,H,I,K,M,DLO, 1/0 AWG, CU, 1 Hole, 3/8 Stud, Standard Barrel, Inspection WIndow |
| Description Slang | TERM FX STD BBL TN TEL |
| Die Index | 12 |
| Dimension B Length Fraction | 11/16 in |
| Dimension B Length Inch | 0.69 in |
| Dimension Bolt Hole Size Inch | 0.40 in |
| Dimension Bolt Size Fraction | 3/8 |
| Dimension Bolt Size Inch | 0.38 |
| Dimension Hole Size Fraction | 3/8 |
| Dimension Hole Size Inch | 0.41 |
| Dimension Hole Size Mm | 10.4 mm |
| Dimension L Length Overall Mm | 49 mm |
| Dimension Length Overall Inch | 1.94 in |
| Dimension N Inch | 0.41 in |
| Dimension Outside Diameter Inch | 0.56 in |
| Dimension Pad Width Inch | 0.83 in |
| Dimension Strip Length Inch | 11/16 in |
| Dimension Stud Size Fraction | 3/8 |
| Dimension Stud Size Inch | 3/8 |
| Dimension Z Inch | 0.42 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements;Connectors are clearly marked with stamping and barrel color coding;For applications greater than 2000 Volts consult cable manufacturer for voltage stress relief instructions |
| FV BuyAmericanCompliant | No | |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered |
| Feature Barrel Type | Standard |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1/0FX 3/8STUD;1/0AWG 1H LUG |
| Item Number | 51822 |
| Long Description | COMPRESSION TERMINAL, ELECTRO-TIN PLATED COPPER MATERIAL; PINK COLOR; 1.94 INCH OVERALL LENGTH; 0.69 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 600 V TO 35 KV VOLTAGE RATING |
| MSDS Form Number | * |
| Material | COPPER;Electro-Tin Plated Copper |
| Model | YAV-L-FX |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 1.94 Inch |
| Pad Size | 0.83 Inch W x 0.12 Inch Thk |
| Product Description | 1/0FX 3/8STUD |
| Product Keywords | WEBREADY |
| Product Name | Cable or wire lugs |
| ProductLine | BUR |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Finish: Electro-Tin Plated, Wire Strip Length: 11/16 IN, Die Index: 12, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W25VT, W25RT, X25RT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W25VT, W25RT, X25RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U25RT Die, (1), Y46 Tool, U25RT Die With PUADP-1 Adapter, (1), Color Code: Pink, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (1), Conductor Type: Commercial Stranded Copper, Flexible Copper |
| Standard | UL 486A-486B |
| Stud Size | 3/8 Inch |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC | 78181051822 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 600 V to 35 kV |
