| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YAV28LTC12FX |
| Additional Information | RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 1-1/16 Inch; Cable Entry Type Beveled Entry, Chamfered |
| Application | Wire Termination |
| Approval | UL, CSA |
| Barrel Length | 1.03 Inch |
| Barrel Type | Short, Standard, Straight |
| Base Price | 0.0000 |
| Brand Name | Burndy;HYLUG[TM] |
| Catalog Number | YAV28LTC12FX |
| Color | Purple |
| Color Code | Purple |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| Conductor Size | 550/24 Diesel Locomotive Cable, 4/0 AWG Class G/H/I (Weld Flex), 4/0 AWG Stranded |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Die Index | 15 |
| Dimension B Length Inch | 1.03 in | |
| Dimension Hole Size Fraction | 1/2 |
| Dimension Hole Size Inch | 0.53 |
| Dimension Hole Size Mm | 13.5 mm |
| Dimension Outside Diameter Inch | 0.77 in |
| Dimension Pad Width Inch | 1.14 in |
| Dimension Strip Length Inch | 1-1/16 |
| Dimension Stud Size Fraction | 1/2 |
| Dimension Stud Size Inch | 1/2 |
| Dimension Thread Size | 1/2 |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FV Conductor Copper Flex G Size Range | 4/0 AWG |
| FV Conductor Copper Flex H Size Range | 4/0 AWG |
| FV Conductor Copper Flex K Size Range | 4/0 AWG |
| FV Conductor Copper Str Navy Size Range | 200 (61) Navy |
| FV Die Index | 15 |
| FV Dimension Bolt Size Fraction | 1/2 |
| FV Product Family | COMPRESSION |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Type | Standard |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | HYLUG-4/0 FLEX-1/2 INCH;4/0 RING LUG |
| Item Number | 02179 |

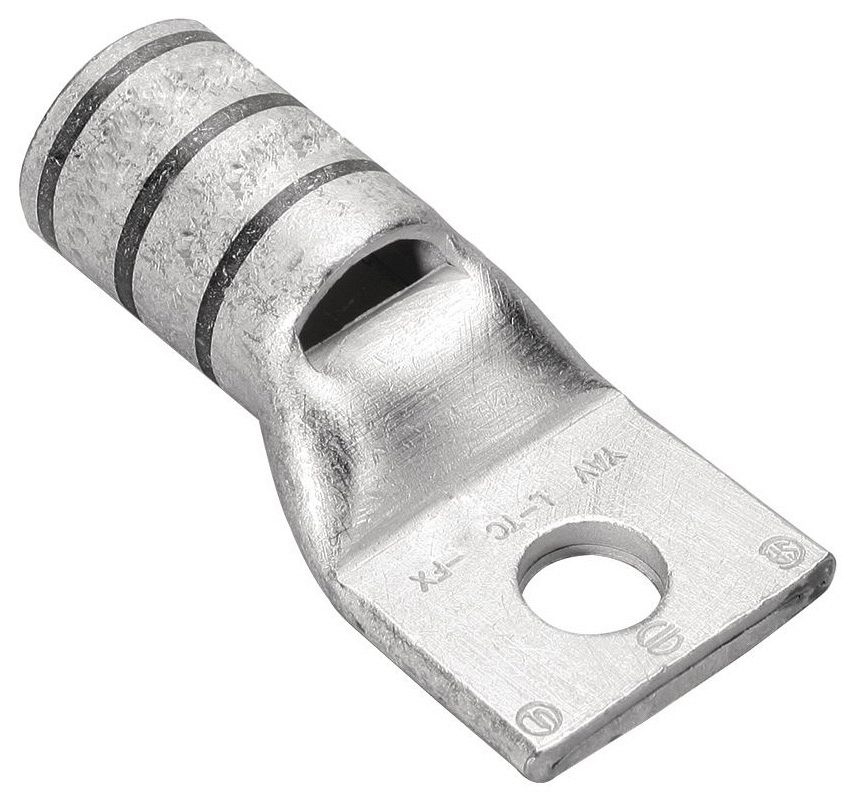

| Long Description | COMPRESSION TERMINAL, ELECTRO-TIN PLATED COPPER MATERIAL; PURPLE COLOR; 2.67 INCH OVERALL LENGTH; 1.03 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 600 V TO 35 KV VOLTAGE RATING |
| MSDS Form Number | * |
| Material | Copper;Electro-Tin Plated Copper |
| Minimum Pack Quantity | 1 |
| Model | YAV-L-FX |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 2.67 Inch |
| Pad Size | 1.14 Inch W x 0.15 Inch Thk |
| Plated | Y |
| Plating Type | Tin |
| Product Description | HYLUG-4/0 FLEX-1/2 INCH |
| Product Keywords | WEBREADY |
| Product Name | Compression Terminal |
| Product Type | TERMINAL |
| ProductLine | BUR |
| Rating KVA | 35 kV |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 1-1/16 IN, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Die Index: 15, Tongue Angle: Straight, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W28VT, W28RT, X28RT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W28VT, W28RT Die, (2), X28RT Die, (3), Y35, Y39, Y750, PAT750 Tool, U28RT Die, (1), Y46 Tool, U28RT Die With PUADP-1 Adapter, (1), Color Code: Purple, Conductor Type: Commercial Stranded Copper, Flexible Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-11 Tool, (1) |
| Standard | UL 486A-486B |
| Stud Size | 1/2 Inch |
| Sub Brand | HYLUG |
| Trade Name | HYLUG |
| Type | Standard Barrel, Tin Plated |
| UNSPSC | 39121405 |
| UPC | 78181002179 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Maximum | 35,000 |
| Voltage Rating | 35,000 V;600 V to 35 kV |
