| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YAV4CLBOX |
| Additional Information | RoHS Compliant; Connector Type Terminal; Cable Entry Type Chamfered; Tongue Type Ring; Wire Strip Length 1/2 Inch |
| Application | Industrials, Hospitals, Utilities, Marine, Computer |
| Application For Use On | Copper Commercial (Code) Cable, Type AN Aircraft Cable, Extra Flexible Conductors |
| Approval | UL 467, CSA |
| Barrel Length | 0.47 Inch |
| Barrel Type | Short, Skived, Straight |
| Base Price | 0.0000 |
| Brand Name | HYLUG[TM] |
| Catalog Number | YAV4CLBOX |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| Conductor Size | 4 AWG, AN 4 Aircraft Stranded (Flex) |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

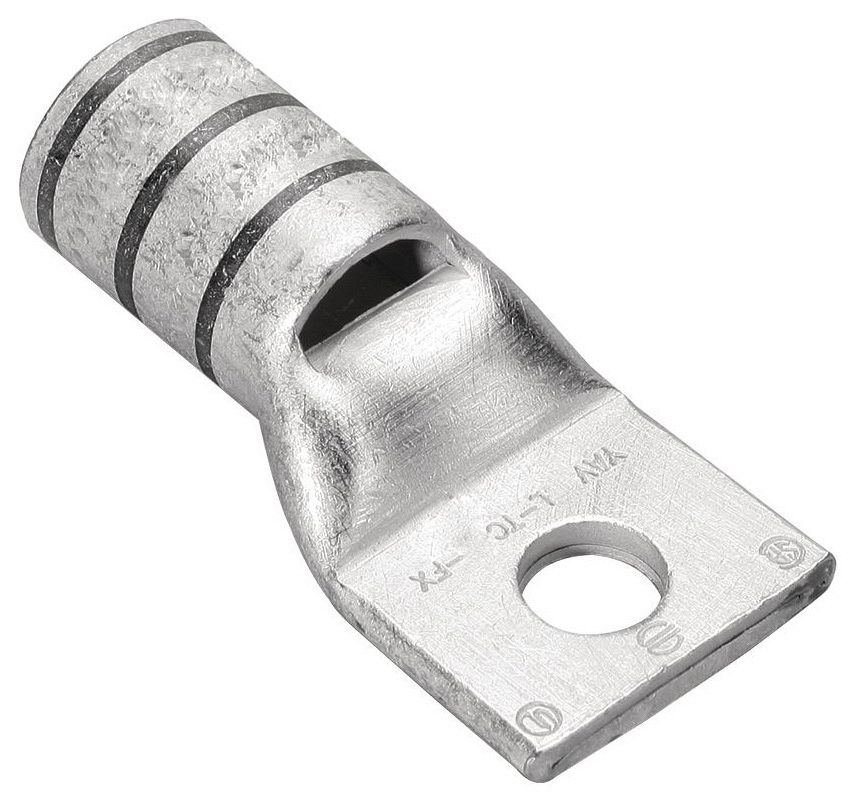

| Description Long | "Copper Compression Lug, Ring Tongue, 1 Hole w/ Inspection Hole, AN-4 Flex, 1/4"" Stud, Short Barrel, Tin Plated." |
| Description Marketing Copy | YAV4CLBOX. |
| Description Short | "Copper Compression Lug, Ring Tongue, 1 Hole w/ Inspection Hole, AN-4 Flex, 1/4"" Stud, Short Barrel, Tin Plated" |
| Die Index | 40 |
| Dimension B Length Fraction | 1/2 in |
| Dimension B Length Inch | 0.47 in |
| Dimension Bolt Hole Size Inch | 0.27 in |
| Dimension Bolt Size Fraction | 1/4 |
| Dimension Hole Size Mm | 7 mm |
| Dimension Inside Diameter Inch | 0.28 in |
| Dimension Length Overall Inch | 1.37 in |
| Dimension N Inch | 0.25 in |
| Dimension Outside Diameter Inch | 0.38 in |
| Dimension Pad Width Inch | 0.55 in |
| Dimension Strip Length Inch | 1/2 in |
| Dimension Stud Size Inch | 1/4 |
| Dimension Z Inch | 0.28 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity, low resistance and excellent ductility for crimping;Seamless tubular crimp barrel design - No seams to split resulting in a very high quality electrical connection, also can be used on solid conductor;Double thick tongue structurally a very strong terminal tongue;Produced from tubular copper, extra copper material assures the compression connector will operate cooler than the conductors it connects;Internally bevelled barrel for easy cable entry, especially for flexible conductors;Inspection hole provides easy visual check for proper conductor insertion;Electro-tin plated for a long lasting durable corrosion resistance |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Conductor Copper Str Size Range | 4 AWG |
| FV Dimension Bolt Hole Size Inch | 0.27 in |
| FV Dimension Bolt Size Fraction | 1/4 |
| FV Industry Standard S | UL467;Military Specified (Mil-Spec) |
| FV Product Family | COMPRESSION |
| FV Standards Industry Standards Met | UL486 | |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered;Skived |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 4AWG HVYDTY RING 1/4 STU,;4AWG CONDUCTOR |
| Item Number | 53930 |
| Long Description | RING TONGUE COMPRESSION TERMINAL, ELECTRO-TIN PLATED COPPER MATERIAL; 1.37 INCH OVERALL LENGTH; 0.47 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL 467, CSA APPROVAL; 4 AWG, AN 4 AIRCRAFT STRANDED (FLEX) CONDUCTOR SIZE; 1/4 INCH STUD SIZE |
| MSDS Form Number | * |
| Material | Copper;Electro-Tin Plated Copper |
| Model | YAV-L |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 1.37 Inch |
| Pad Size | 0.55 Inch Width |
| Product Description | 4AWG HVYDTY RING 1/4 STU, |
| Product Keywords | WEBREADY |
| Product Name | Cable or wire lugs |
| ProductLine | BUR |
| Special Features | Features: HYLUG Type YAV Is A Seamless, Heavy Duty Uninsulated Compression Terminal Manufactured From Electrolytic Copper And Is For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, The Seamless Tubing Produces A Double Thick Tongue And Seamless Barrel Design Provides A Strong Connector For Demanding Applications Requiring High Reliability, Applications Include Aircraft, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance, The YAV HYLUG Terminals Meet The Requirements Of SAE-AS7928 And Are Listed Per AS20659 For Use With Copper Aircraft Cable Per MIL-W-5086, The Benefits Of YAV-L Connectors Are The Same As YAV Connectors For Stranded Conductors, Wire Shroud: No, Ms20659 Dash Number: -111, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: HYPRESS: Y29B, Y29NC Tool, DV4L-1 Die Nest, Y29PL Die Indentor, (1) Crimp, Y35, Y39, Y750 Tool, UV4L Die Nest, Y34PLA Die Indentor, (1) Crimp, Package: Box, Installation Tool: HYTOOL: Non-Ratchet: MY28, MY29-11 Tool, Ratchet: MR4C Tool, Finish: Electro-Tin Plated, Conductor Type: Commercial/Military Stranded Copper, Die Index: 40, Wire Strip Length: 1/2 IN, Tongue Angle: Straight |
| Standard | UL467;Military Specified (Mil-Spec) |
| Stud Size | 1/4 Inch |
| Type | Ring Tongue |
| UNSPSC | 39121405 |
| UPC | 78181053930 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
