Manufacturer Name | BURNDY (FCI BURNDY) |
MfgPartNo | YAZ342N |
Additional Information | ROHS COMPATIBLE; WIRE STRIP LENGTH 2 5/16 INCH; TEMPERATURE RATING 90 DEG C; WITH INSPECTION WINDOW |
Application | Wire Termination |
Approval | UL 468A/468B, CSA |
Barrel Length | 2.25 Inch |
Barrel Type | Long, Straight, Skived |
Base Price | 0.0000 |
Brand Name | Burndy;HYLUG[TM] |
Catalog Number | YAZ342N |
Color | Brown |
Color Code | Brown |
Commerce Sector | Construction Materials |
Commodity Code | 64120 |
Commodity Description | Large Terminals & Connectors |
Conductor Material | Copper |
Conductor Size | 500 KCMIL Stranded (Code) |
CountryOfOrigin | US |
DDCATEGORY | 597 |

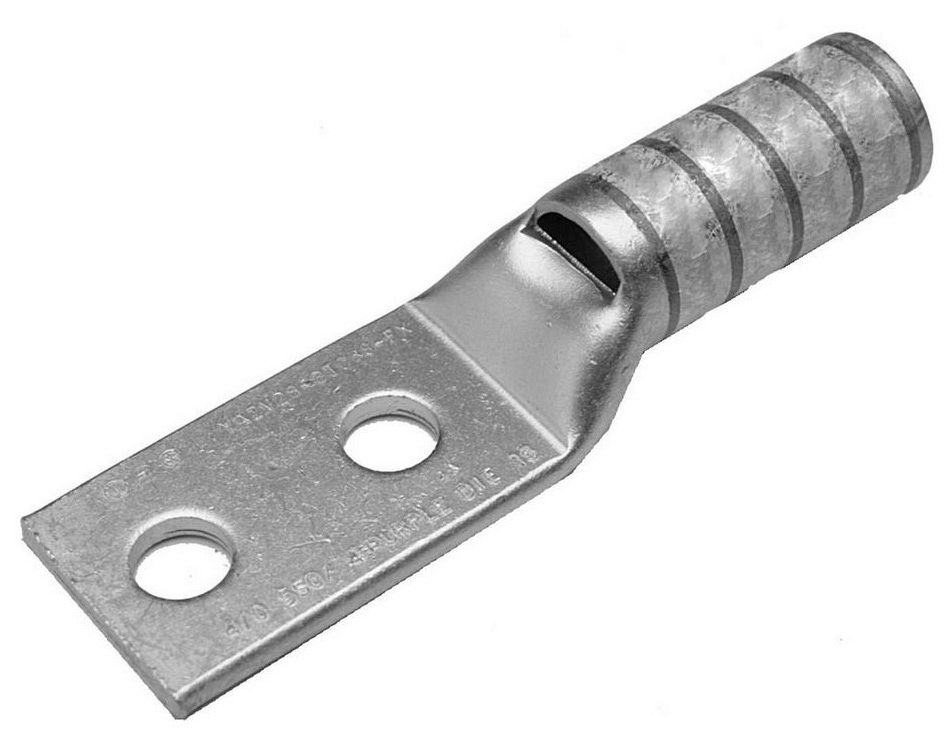

Description Long | 500 kcmil CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, Brown Color Code, 20 or 299 Die Index. |
Description Short | 500 kcmil, CU, 2 Hole, 1/2 Stud, 1-3/4 IN Spacing, Long Barrel, Inspection Window |
Die Index | 20;20/299 |
Dimension B Length Fraction | 2-1/4 in |
Dimension B Length Inch | 2.25 in |
Dimension Bolt Hole Size Inch | 0.56 in |
Dimension Hole Size Fraction | 1/2 |
Dimension Hole Size Inch | 0.56 |
Dimension Hole Size Mm | 14 mm |
Dimension Outside Diameter Inch | 1.06 in |
Dimension Pad Width Inch | 1.55 in |
Dimension Strip Length Inch | 2-5/16 |
Dimension Stud Size Fraction | 1/2 |
Dimension Stud Size Inch | 1/2 |
Dimension Z Inch | 0.64 in |
Directory | CIS |
EU RoHS Indicator | Yes |
Families | 597 |
Family Description | Large Terminals & Connectors |
Feature Barrel Type | Long |
Image Location | * Image |
Industry | ELX |
InvoiceDescription | 500 CU-LONG-OPEN-2 NEMA;500KCM 2H LNG LUG |
Item Number | 20862 |
Long Description | COMPRESSION TERMINAL, ELECTRO TIN PLATED COPPER MATERIAL; BROWN COLOR; 6.04 INCH OVERALL LENGTH; 2.25 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL 468A/468B, CSA APPROVAL; 600 VOLT TO 35 KILOVOLT VOLTAGE RATING |
MSDS Form Number | * |
Material | Copper;Electro Tin Plated Copper |
Minimum Pack Quantity | 1 |
Model | YAZ-2N |
Noun | * |
Number Of Pad Holes | 2 |
Overall Length | 6.04 Inch |
Pad Hole Spacing | 1.75 Inch |
Pad Size | 1.55 Inch Width x 0.23 Inch Thickness |
Physical Attribute Tongue Angle | Straight |
Plated | Y |
Plating Type | Tin - Electro Plated |
Product Description | 500 CU-LONG-OPEN-2 NEMA |
Product Keywords | WEBREADY |
Product Name | Compression Terminal |
Product Type | TERMINAL |
ProductLine | BUR |
Rating KVA | 35 kV |
Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Tongue Angle: Straight, Wire Strip Length: 2-5/16 IN, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W34VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W34VT, W34RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U34RT, U31ART Die, (4), Y46 Tool, U34RT, U31ART Die With PUADP-1 Adapter, (4), Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4), Die Index: 20 Or 299 |
Standard | UL 486A-486B |
Standards Industry Standards Met | UL 486A-486B |
Standards RoHS Compliance Status | CM | |
Stud Size | 1/2 Inch |
Sub Brand | HYLUG |
Trade Name | HYLUG |
Type | Long Barrel, Skive, Tin Plated |
UNSPSC | 39121405 |
UPC | 78181020862 |
Vendor Name | BURNDY PRODUCTS |
Vendor Number | 781810 |
Vendor Short Name | BUR |
Voltage Maximum | 35,000 |
Voltage Rating | 35,000 V;600 Volt to 35 Kilovolt |
