| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YAZ8CTC14 |
| Additional Information | RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 13/16 Inch |
| Application | Wire Termination |
| Approval | UL, CSA |
| Barrel Length | 0.75 Inch |
| Barrel Type | Long, Skived, Straight |
| Base Price | 0.0000 |
| Brand Name | HYLUG[TM] |
| Catalog Number | YAZ8CTC14 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Color | Red |
| Color Code | Red |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| Conductor Size | 37/24, 8 AWG (Weld), 6 AWG Solid, 8 AWG Stranded/Solid (Code) |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

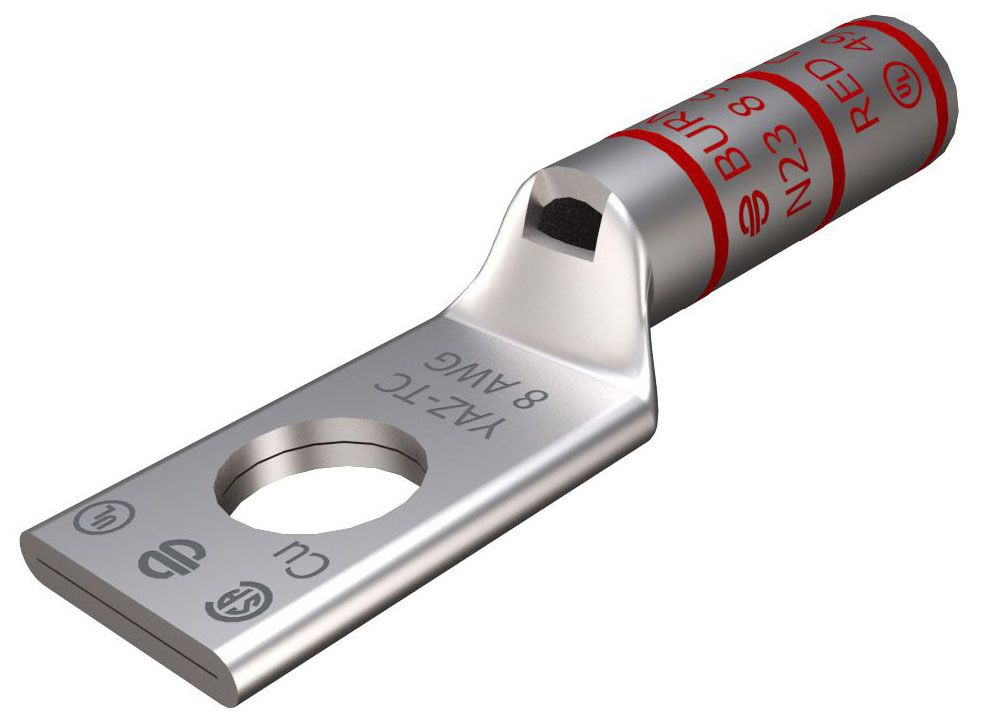

| Description Long | 8 AWG CU, One Hole, 1/4 Stud Size, Long Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, RED Color Code, 49 Die Index. |
| Description Short | 8 AWG, CU, 1 Hole, 1/4 Stud, Long Barrel, Inspection Window |
| Description Slang | TERM CODE LG BBL SKV TEL |
| Die Index | 49 |
| Dimension B Length Fraction | 1-1/4 in |
| Dimension B Length Inch | 0.75 in |
| Dimension Bolt Hole Size Inch | 0.27 in |
| Dimension Bolt Size Fraction | 1/4 |
| Dimension Bolt Size Inch | 0.25 |
| Dimension Hole Size Fraction | 1/4 |
| Dimension Hole Size Inch | 0.27 |
| Dimension Hole Size Mm | 6.9 mm |
| Dimension L Length Overall Mm | 40 mm |
| Dimension Length Overall Inch | 1.56 in |
| Dimension N Inch | 0.31 in |
| Dimension Outside Diameter Inch | 0.27 in |
| Dimension Pad Width Inch | 0.44 in |
| Dimension Strip Length Inch | 13/16 |
| Dimension Stud Size Fraction | 1/4 |
| Dimension Stud Size Inch | 1/4 |
| Dimension Z Inch | 0.33 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands;Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements;Connectors are clearly marked with stamping and barrel color coding |
| FV BuyAmericanCompliant | Contact Manufacturer | |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Skived |
| Feature Barrel Type | Long |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | "CULUG- 8 AWG-LONG W/PORT-1/4"" STUD";1H COMPRESSN LUG |
| Item Number | 23930 |
| Long Description | COMPRESSION TERMINAL, ELECTRO-TIN PLATED COPPER MATERIAL; RED COLOR; 1.56 INCH OVERALL LENGTH; 0.75 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 600 V TO 35 KV VOLTAGE RATING |
| MSDS Form Number | * |
| Material | COPPER;Electro-Tin Plated Copper |
| Model | YAZ |
| Noun | * |
| Number Of Pad Holes | 1 |
| Overall Length | 1.56 Inch |
| Pad Size | 0.44 Inch W x 0.08 Inch Thk |
| Product Description | "CULUG- 8 AWG-LONG W/PORT-1/4"" STUD" |
| Product Keywords | WEBREADY |
| Product Name | Cable or wire lugs |
| ProductLine | BUR |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Finish: Electro-Tin Plated, Wire Strip Length: 7/8 IN, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W8CVT, W8CRT, X8CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W8CVT, W8CRT, X8CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U8CRT Die, (1), Y46 Tool, U8CRT Die With PUADP-1 Adapter, (1), Color Code: Red, Die Index: 49, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Y1MRTC, MY29-3, MY29-11, MRC840 Tool, (2) |
| Standard | UL 486A-486B |
| Stud Size | 1/4 Inch |
| Type | Long Barrel, Skive, Tin Plated |
| UNSPSC | 39121405 |
| UPC | 78181023930 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 600 V to 35 kV |
