| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YC28C2 |
| Additional Information | RoHS Compliant; Length 1-1/16 Inch |
| Application | For Making Tap Or Parallel Copper Connections |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Body Material | Wrot Copper |
| Brand Name | Burndy;CRIMPIT[TM] |
| Catalog Number | YC28C2 |
| Certification CSA Approved | No |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | CU Compression C Shape Compression Connector, 600 Volts to 35 Kv, Run: 3/0 Str. - 4/0 Str., Tap: 6 Sol. - 2 Str. |
| Description Short | CU Compression C Shape Compression Connector |
| Die Index | F or D3;F/D3 |
| Dimension Height Inch | 1.65 in |
| Dimension L Length Overall Mm | 27 mm |
| Dimension Length Overall Inch | 1.07 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FV Die Index | F or D3 |
| FV Product Family | Power Connectors>Copper Compression Terminals & Splices>C Taps>Heavy Wall |
| FV Standards Industry Standards Met | UL 486A;UL486B |
| FV Trade Name | CRIMPIT |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 3/0-4/0 TO 6-2 CU FIG C;4/0 CU TAP CONN |
| Item Number | 11575 |
| Long Description | CONNECTOR, 3/0 AWG STRANDED MIN. RUN CONDUCTOR SIZE; 4/0 AWG STRANDED MAX. RUN CONDUCTOR SIZE; 6 AWG SOLID MIN. TAP CONDUCTOR SIZE; 2 AWG STRANDED MAX. TAP CONDUCTOR SIZE; C SHAPE; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL |
| MSDS Form Number | * |
| Material | Copper |
| Maximum Run Conductor Size | 4/0 AWG Stranded |
| Maximum Tap Conductor Size | 2 AWG Stranded |
| Minimum Pack Quantity | 1 |
| Minimum Run Conductor Size | 3/0 AWG Stranded |
| Minimum Tap Conductor Size | 6 AWG Solid |
| Model | YC-C |
| Noun | * |
| Pallet Quantity | 5,800 |
| Plated | N |
| Plating Type | Unplated |
| Product Description | 3/0-4/0 TO 6-2 CU FIG C |
| Product Keywords | WEBREADY |

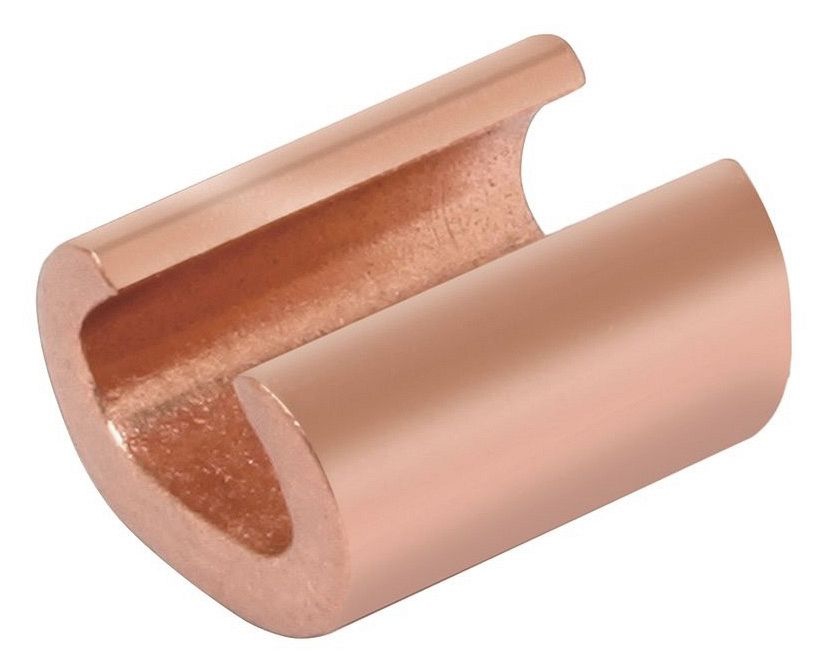

| Product Name | YC28C2, Copper C-Shape Connector |
| Product Type | Compression |
| ProductLine | BUR |
| Shape | C |
| Special Features | Features: Range-Taking Connector: Lowers Inventory Requirements, Compact Size: Easy To Tape And Insulate Connection, Manufactured From High Conductivity Wrought Copper: Provides Low Resistance And Excellent Electrical Conductivity, Economical: Provides Low Installed Cost, 8A - Use CRIMPITS Accommodating 6 Stranded Copper, 6A - Use CRIMPITS Accommodating 4 Stranded Copper, 4A - Use CRIMPITS Accommodating 2 Stranded Copper, 2A - Use CRIMPITS Accommodating 1/0 And 2/0 Copper, Use PUADP-1 Adapter When Using U Dies In The Y46 HYPRESS, Die Index: D3 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y750, Y45 Tool, U-D3 Die, (1), U-F Die, (3), Y46 Tool, U-D3 Die With PUADP-1 Adapter, (1), U-F Die With PUADP-1 Adapter, (3), Conductor Size (run - Range): 3/0 - 4/0 AWG, Conductor Type: Run: Commercial Stranded Copper, Tap: Commercial Stranded Copper, Shape: C, Conductor Size (tap Range): 6 - 2 AWG |
| Standard | UL 486A;UL486B |
| Standards Industry Standards Met | UL 486A;UL486B |
| Standards RoHS Compliance Status | CM |
| Sub Brand | CRIMPIT |
| Trade Name | CRIMPIT |
| Type | YC-C Series |
| UL Listed | Yes |
| UNSPSC | 39121427 |
| UPC | 78181011575 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 600 Volt to 35 Kilovolt |
