| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YGHC26C2 |
| Additional Information | RoHS Compliant; Rod Size 3/8 Inch |
| Application | For Direct Burial Cables |
| Approval | UL 96/467, CSA |
| Base Price | 0.0000 |
| Body Material | Copper |
| Brand Name | HYGROUND [R], HYTAP |
| Catalog Number | YGHC26C2 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | Yes |
| Certification UL Recognized | No |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 92000 |
| Commodity Description | Ground Rods & Grounding Systems |
| Conductor Material | Copper |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | "Copper Compression C Connector, 1 - 2/0 AWG(Str), 3/8"" Rod (Run) & 6 AWG(Sol)- 2 AWG(Str) (Tap)." |
| Description Short | HYGROUND Compression Grounding C TAP; 1-2/0 TO 6-2 Copper |
| Die Index | O |
| Dimension B Length Inch | 0.75 in |
| Dimension Height Fraction | 1-25/61 in |
| Dimension Height Inch | 1.41 in |
| Dimension L Length Overall Mm | 19 mm |
| Dimension Length Overall Inch | 0.75 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Irreversible compression ground tap figure C connector;C-shaped opening permits placing two continuous parallel cables into conductor groove;UL467 Listed;Acceptable for direct burial in earth or concrete;Prefilled with PENETROX compound and strip sealed |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Die Index | O |
| FV Product Family | "Grounding and Bonding Connectors>""Hyground"" Compression Grounding Connectors>C-Taps" |
| FV Standards Industry Standards Met | UL467;IEEE 837;IEEE 837 2014 Qualified;UL468A-468B |
| FV Trade Name | HYTAP |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1-2/0 TO 6-2 CU GRD C TA;2/0 COMPGRD TAP |
| Item Number | 22102 |
| Long Description | COMPRESSION CONNECTOR, 1 AWG STRANDED MIN. RUN CONDUCTOR SIZE; 2/0 AWG STRANDED MAX. RUN CONDUCTOR SIZE; 6 AWG SOLID MIN. TAP CONDUCTOR SIZE; 2 AWG STRANDED MAX. TAP CONDUCTOR SIZE; C SHAPE; COPPER CONDUCTOR MATERIAL; UL 96/467, CSA APPROVAL |
| MSDS Form Number | * |
| Material | Copper |
| Maximum Run Conductor Size | 2/0 AWG Stranded |
| Maximum Tap Conductor Size | 2 AWG Stranded |
| Minimum Pack Quantity | 1 |
| Minimum Run Conductor Size | 1 AWG Stranded |
| Minimum Tap Conductor Size | 6 AWG Solid |
| Model | YGHC-C |
| Noun | * |
| Pallet Quantity | 14800 |
| Physical Attribute Number Of Crimps Required | 1 |
| Plated | N |
| Plating Type | Unplated |
| Product Description | 1-2/0 TO 6-2 CU GRD C TA |
| Product Keywords | WEBREADY |

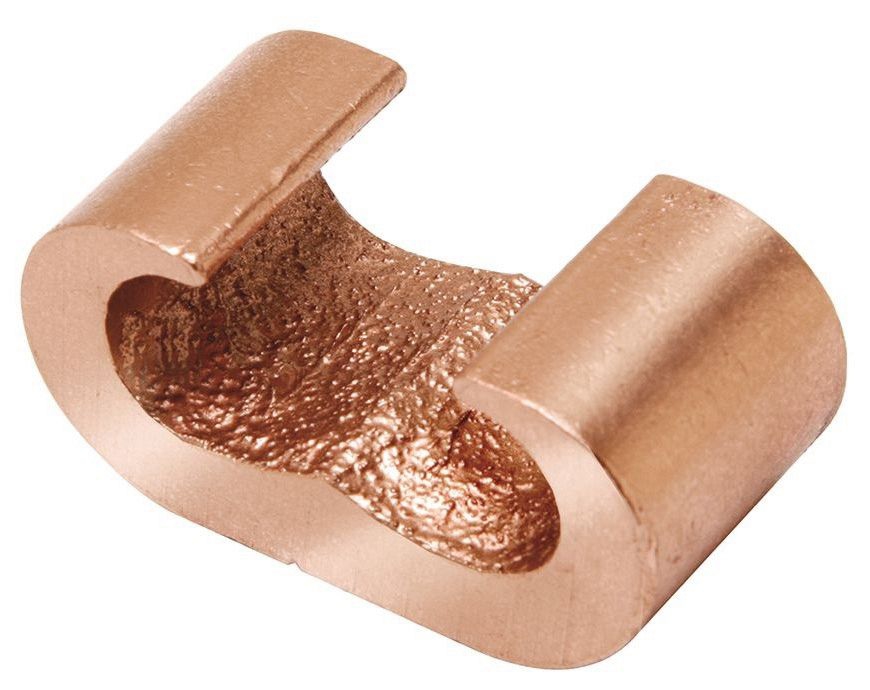

| Product Name | "YGHC26C2 Compression Grounding C-TAP Connector, 1-2/0 AWG Str, 3/8"" Rod Run, #6 AWG Sol-#2 AWG Str Tap" |
| Product Type | Compression |
| ProductLine | BUR |
| Related Links List | "HYGROUND Product Selector" |
| Shape | C |
| Special Features | Features: Irreversible Compression Ground Tap Figure C Connectors, Accommodates All Cable Combinations From #6 AWG Solid Through 500 KCMIL, C- Shaped Opening Permits Placing Two Continuous Parallel Cables Into Conductor Groove, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, Prefilled With PENETROX Compound And Strip Sealed, Certain Sizes Are Also UL467 Listed And CSA Certified For Wire To Ground Rod, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y35, Y39, Y750, PAT750 Tool, U-O Die, (1), Y45 Tool, U-O Die With PT6515 Adapter, (1), Y46 Tool, U-O Die With PUADP-1 Adapter, (1), Ground Rod Size: 3/8 IN, Conductor Size (run - Mm): 35 - 70 SQ-MM, Conductor Size (tap - Mm): 10 - 35 SQ-MM, Die Index: O Element A, Conductor Type: Run: Commercial Stranded Copper, Metric Copper, Tap: Commercial Stranded Copper, Metric Copper, Shape: C, Conductor Size (tap Range): 6 - 2 AWG, Conductor Size (run - Range): 1 - 2/0 AWG |
| Standard | Direct Burial |
| Standards Industry Standards Met | UL467;IEEE 837;IEEE 837 2014 Qualified;UL468A-468B |
| Standards RoHS Compliance Status | CM |
| Trade Name | HYTAP | |
| UNSPSC | 39121427 |
| UPC | 78181022102 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
