| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YGHC29C29 |
| Additional Information | RoHS Compliant; Rod Size 1/2 to 5/8 Inch |
| Application | For Direct Burial Cables |
| Approval | UL 96/467, CSA |
| Base Price | 0.0000 |
| Body Material | Copper |
| Brand Name | HYGROUND [R], HYTAP |
| Catalog Number | YGHC29C29 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | Yes |
| Certification UL Recognized | No |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 92000 |
| Commodity Description | Ground Rods & Grounding Systems |
| Conductor Material | Copper |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | "Copper Compression C Connector, 2/0 AWG(Str) - 250 kcmil, 1/2"" or 5/8"" Rod (Run) & 2/0 AWG(Str) - 250 kcmil (Tap)." |
| Description Short | "Copper Compression C Connector, 2/0 AWG(Str) - 250 kcmil, 1/2"" or 5/8"" Rod (Run) & 2/0 AWG(Str) - 250 kcmil (Tap)" |
| Die Index | 997 |
| Dimension B Length Inch | 0.88 in |
| Dimension Height Fraction | 2-3/50 in |
| Dimension Height Inch | 2.06 in |
| Dimension L Length Overall Mm | 22 mm |
| Dimension Length Overall Inch | 0.88 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Irreversible compression ground tap figure C connector;C-shaped opening permits placing two continuous parallel cables into conductor groove;UL467 Listed;Acceptable for direct burial in earth or concrete;Prefilled with PENETROX compound and strip sealed |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| FV Die Index | 997 |
| FV Product Family | "Grounding and Bonding Connectors>""Hyground"" Compression Grounding Connectors>C-Taps" |
| FV Standards Industry Standards Met | UL467;IEEE 837;UL468A-468B |
| FV Trade Name | HYTAP |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 2/0-250 TO 2/0-250 GRD C;250MCM COMPGRD TAP |
| Item Number | 22105 |
| Long Description | COMPRESSION GROUND TAP CONNECTOR, 3/0 AWG STRANDED MIN. RUN CONDUCTOR SIZE; 250 KCMIL MAX. RUN CONDUCTOR SIZE; 3/0 AWG STRANDED MIN. TAP CONDUCTOR SIZE; 250 KCMIL MAX. TAP CONDUCTOR SIZE; C SHAPE; COPPER CONDUCTOR MATERIAL; UL 96/467, CSA APPROVAL |
| MSDS Form Number | * |
| Material | Copper |
| Maximum Run Conductor Size | 250 KCMIL |
| Maximum Tap Conductor Size | 250 KCMIL |
| Minimum Pack Quantity | 1 |
| Minimum Run Conductor Size | 3/0 AWG Stranded |
| Minimum Tap Conductor Size | 3/0 AWG Stranded |
| Model | YGHC-C |
| Noun | * |
| Pallet Quantity | 7400 |
| Physical Attribute Number Of Crimps Required | 1 |
| Plated | N |
| Plating Type | Unplated |
| Product Description | 2/0-250 TO 2/0-250 GRD C |
| Product Keywords | WEBREADY |

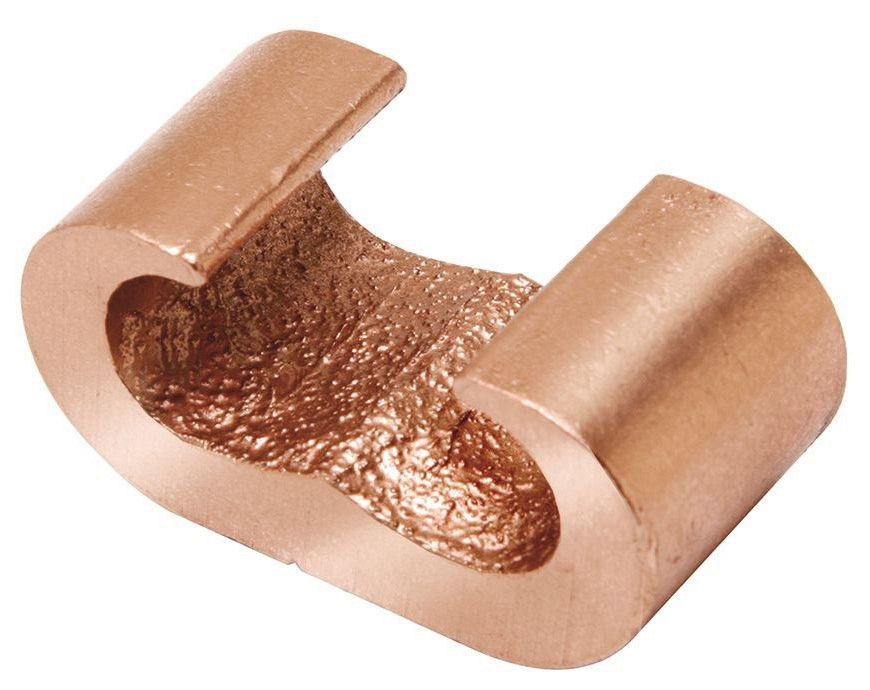

| Product Name | YGHC29C29 Compression Grounding C-TAP Connector |
| Product Type | Compression |
| ProductLine | BUR |
| Related Links List | "HYGROUND Product Selector" |
| Shape | C |
| Special Features | Features: Irreversible Compression Ground Tap Figure C Connectors, Accommodates All Cable Combinations From #6 AWG Solid Through 500 KCMIL, C- Shaped Opening Permits Placing Two Continuous Parallel Cables Into Conductor Groove, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, Prefilled With PENETROX Compound And Strip Sealed, Certain Sizes Are Also UL467 Listed And CSA Certified For Wire To Ground Rod, Conductor Size (tap - Mm): 95 - 120 SQ-MM, Ground Rod Size: 1/2 - 5/8 IN, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y35, Y39, Y750, PAT750 Tool, U997 Die, (1), Y45 Tool, U997 Die With PT6515 Adapter, (1), Y46 Tool, U997 Die With PUADP-1 Adapter, (1), Conductor Size (run - Mm): 95 - 120 SQ-MM, Die Index: 997 Element A, Conductor Type: Run: Commercial Stranded Copper, Metric Copper, Tap: Commercial Stranded Copper, Metric Copper, Conductor Size (tap Range): 3/0 AWG - 250 KCMIL, Shape: C, Conductor Size (run - Range): 3/0 AWG - 250 KCMIL |
| Standard | Direct Burial |
| Standards Industry Standards Met | UL467;IEEE 837;UL468A-468B |
| Standards RoHS Compliance Status | CM |
| Trade Name | HYTAP | |
| UNSPSC | 39121427 |
| UPC | 78181022105 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
