| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YGHP29C29 |
| Additional Information | RoHS Compliant |
| Application | For Direct Burial In Earth And Concrete |
| Approval | UL 96/467, CSA |
| Base Price | 0.0000 |
| Body Material | Wrot Copper |
| Brand Name | HYGROUND[R], HYTAP[TM] |
| Catalog Number | YGHP29C29 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | Yes |
| Certification UL Recognized | No |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 92000 |
| Commodity Description | Ground Rods & Grounding Systems |
| Conductor Material | Copper |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | "Cu Compression Ground Rod Connector, 3/0 Str - 250 Kcmil, 1/2"" - 5/8"" Rod Dia." |
| Description Short | "Cu Compression Ground Rod Connector, 1/0 str to 250 kcmil , 1/2""- 5/8"" Rod, 3/8"" to 1/2 "" Rebar (Run) to 3/0 str to 250 kcmil (Tap)" |
| Die Index | 997 |
| Dimension B Length Fraction | 3/4 in |
| Dimension B Length Inch | 0.75 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Irreversible compression ground tap can be used as a tap connector or as a tap splice connector;UL467 Listed;Acceptable for direct burial in earth and concrete;Prefilled with PENETROX compound and strip sealed |
| FV BuyAmericanCompliant | No |
| FV Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| FV Conductor Copper Str Run Range | 1/0 -250 kcmil |
| FV Die Index | 997 |
| FV Standards Industry Standards Met | UL467;IEEE 837 |
| FV Trade Name | HYTAP |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1/0-250 TO 3/0-250 GRN C;250 COMP GRD TAP |
| Item Number | 22094 |
| Long Description | COMPRESSION GROUND ROD TAP CONNECTOR, 1/0 AWG STRANDED MIN. RUN CONDUCTOR SIZE; 250 KCMIL MAX. RUN CONDUCTOR SIZE; 3/0 AWG STRANDED MIN. TAP CONDUCTOR SIZE; 250 KCMIL MAX. TAP CONDUCTOR SIZE; C SHAPE; COPPER CONDUCTOR MATERIAL; UL 96/467, CSA APPROVAL |
| MSDS Form Number | * |
| Material | Copper |
| Maximum Run Conductor Size | 250 KCMIL |
| Maximum Tap Conductor Size | 250 KCMIL |
| Minimum Pack Quantity | 1 |
| Minimum Run Conductor Size | 1/0 AWG Stranded |
| Minimum Tap Conductor Size | 3/0 AWG Stranded |
| Model | YGHP-C |
| Noun | * |
| Oxide Inhibitor Type | Penetrox E |
| Pallet Quantity | 9800 |
| Physical Attribute Number Of Crimps Required | 1 |
| Plated | N |
| Plating Type | Unplated |
| Prefilled Oxide Inhibitor | Y |
| Product Description | 1/0-250 TO 3/0-250 GRN C |
| Product Keywords | WEBREADY |

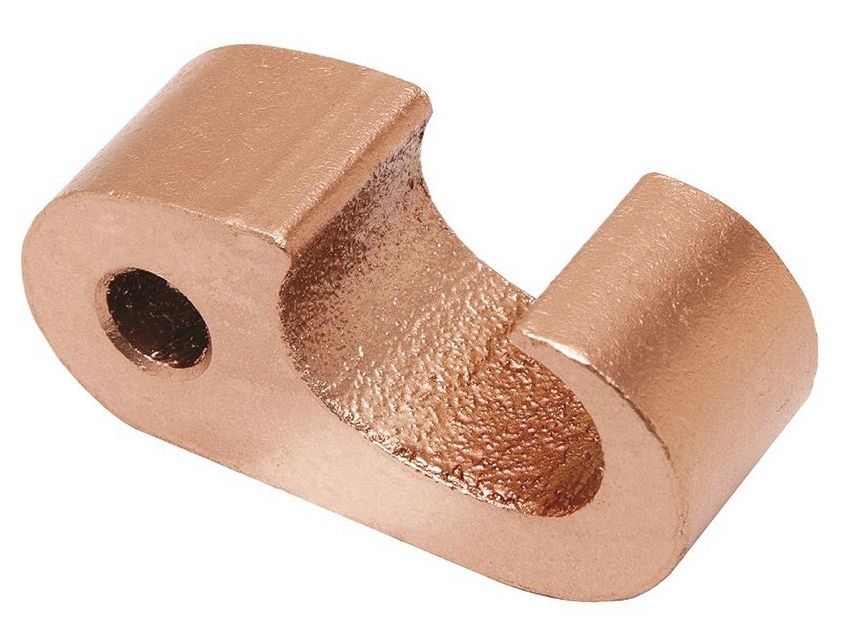

| Product Name | "YGHP29C29 Figure 6 Compression Grounding Connector, 1/0 Str-250 kcmil, 1/2""-5/8"" Rod, 3/8""-1/2"" Rebar Run, 3/0 Str-250 kcmil Tap" |
| Product Type | Compression |
| ProductLine | BUR |
| Related Links List | "HYGROUND Product Selector" |
| Shape | C |
| Special Features | Features: Irreversible Compression Ground Tap Figure 6 Can Be Used As A Tap Connector Or As A Tap Splice Connector, Four Die Sets And Eight Connectors Can Accommodate A Conductor Range From #8 AWG Solid Through 500 KCMIL Plus 1/2 , 5/8 And 3/4 IN Copper Bonded Ground Rods, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Ground Rod Size: 1/2 - 5/8 IN, Die Index: 997 Element A, Rebar Size: #3 - #4, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y35, Y39, Y750 Tool, U997 Die, (1), Y45 Tool, U997 Die With PT6515 Adapter, (1), Y46 Tool, U997 Die With PUADP-1 Adapter, (1), PAT750-18V Tool, U997P Polarized Die, (1), Conductor Type: Run: Commercial Stranded Copper, Rebar, Ground Rod, Tap: Commercial Stranded Copper, Conductor Size (run - Range): 1/0 AWG - 250 KCMIL, Conductor Size (tap Range): 3/0 AWG - 250 KCMIL, Shape: 6 |
| Standard | Direct Burial |
| Standards Industry Standards Met | UL467;IEEE 837 |
| Standards RoHS Compliance Status | CM |
| Trade Name | HYTAP |
| Type | Taps | |
| UNSPSC | 39121427 |
| UPC | 78181022094 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
