| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YGHP2C2 |
| Additional Information | RoHS Compatible; Length 0.75 Inch; Application Direct Burial in Earth, Concrete |
| Application | For Direct Burial In Earth And Concrete |
| Approval | UL 96, UL 467, CSA |
| Base Price | 0.0000 |
| Body Material | Copper |
| Brand Name | HYGROUND[R], HYTAP[TM] |
| Catalog Number | YGHP2C2 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | Yes |
| Certification UL Recognized | No |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 92000 |
| Commodity Description | Ground Rods & Grounding Systems |
| Conductor Material | Copper |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | Cu Compression Ground Tap Connector, #6 Sol- #2 Str(Run & Tap). |
| Description Short | High Strength Copper Irreversible Compression Ground Rod Tap Connector |
| Die Index | O |
| Dimension B Length Fraction | 3/4 in |
| Dimension B Length Inch | 0.75 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Irreversible compression ground tap can be used as a tap connector or as a tap splice connector;UL467 Listed;Acceptable for direct burial in earth and concrete;Prefilled with PENETROX compound and strip sealed |
| FV BuyAmericanCompliant | No |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Conductor Copper Solid Run Range | 6 |
| FV Conductor Copper Solid Tap Range | 6 |
| FV Conductor Copper Str Run Range | 6-2 |
| FV Die Index | O |
| FV Standards Industry Standards Met | UL467;IEEE 837;IEEE 837 2014 Qualified |
| FV Trade Name | HYTAP |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 6-2 TO 6-2 GRN CONN;2STR COMP GRD TAP |
| Item Number | 22091 |
| Long Description | COMPRESSION GROUND ROD TAP CONNECTOR, 6 AWG SOLID MIN. RUN CONDUCTOR SIZE; 2 AWG STRANDED MAX. RUN CONDUCTOR SIZE; 6 AWG SOLID MIN. TAP CONDUCTOR SIZE; 2 AWG STRANDED MAX. TAP CONDUCTOR SIZE; C SHAPE; COPPER CONDUCTOR MATERIAL |
| MSDS Form Number | * |
| Material | Copper |
| Maximum Run Conductor Size | 2 AWG Stranded |
| Maximum Tap Conductor Size | 2 AWG Stranded |
| Minimum Pack Quantity | 1 |
| Minimum Run Conductor Size | 6 AWG Solid |
| Minimum Tap Conductor Size | 6 AWG Solid |
| Model | YGHC-C |
| Noun | * |
| Number Of Taps | 1 |
| Oxide Inhibitor Type | Penetrox E |
| Pallet Quantity | 17400 |
| Physical Attribute Number Of Crimps Required | 1 |
| Plated | N |
| Plating Type | Unplated |
| Prefilled Oxide Inhibitor | Y |
| Product Description | 6-2 TO 6-2 GRN CONN |
| Product Keywords | WEBREADY |

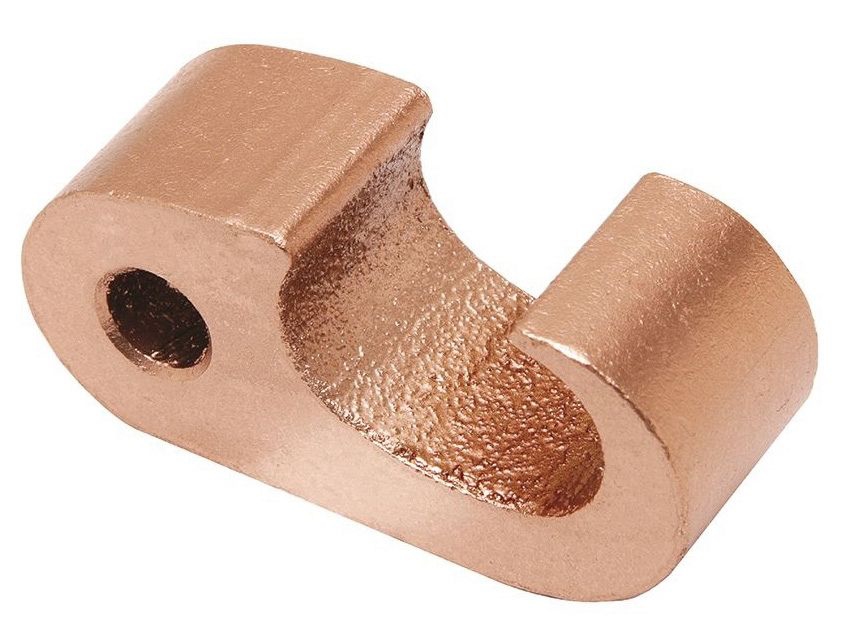

| Product Name | YGHP2C2 Figure 6 Compression Grounding Connector, #6 Sol-#2 Str Run and Tap |
| Product Type | Compression |
| ProductLine | BUR |
| Related Links List | "HYGROUND Product Selector" |
| Shape | C |
| Special Features | Features: Irreversible Compression Ground Tap Figure 6 Can Be Used As A Tap Connector Or As A Tap Splice Connector, Four Die Sets And Eight Connectors Can Accommodate A Conductor Range From #8 AWG Solid Through 500 KCMIL Plus 1/2 , 5/8 And 3/4 IN Copper Bonded Ground Rods, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Die Index: O Element A, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y35, Y39, Y750 Tool, U0 Die, (1), Y45 Tool, U0 Die With PT6515 Adapter, (1), Y46 Tool, U0 Die With PUADP-1 Adapter, (1), PAT750-18V Tool, U0 Die, (1), Conductor Type: Run: Commercial Stranded Copper, Tap: Commercial Stranded Copper, Shape: 6, Conductor Size (tap Range): 6 - 2 AWG, Conductor Size (run - Range): 6 - 2 AWG |
| Standard | Direct Burial |
| Standards Industry Standards Met | UL467;IEEE 837;IEEE 837 2014 Qualified |
| Standards RoHS Compliance Status | CM | |
| UNSPSC | 39121427 |
| UPC | 78181022091 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
