| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YGHR29C34 |
| Additional Information | RoHS Compliant |
| Application | For Direct Burial In Earth Or Concrete |
| Approval | UL 467, CSA |
| Base Price | 0.0000 |
| Body Material | Copper |
| Brand Name | HYGROUND[R], HYTAIL[TM] |
| Catalog Number | YGHR29C34 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | Yes |
| Certification UL Recognized | No |
| Certified Listed | BABA Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | "Copper Compression Connector, 4/0 AWG(Str)-250 kcmil, 3/4"" Ground Rod." |
| Description Short | "Copper Compression Connector, 4/0 AWG(Str)-250 kcmil, 3/4"" Ground Rod" |
| Die Index | 998;1012 |
| Dimension B Length Fraction | 22/25 in |
| Dimension B Length Inch | 0.88 in |
| Dimension Ground Rod Size | 3/4 |
| Dimension Height Fraction | 2-15/79 in |
| Dimension Height Inch | 2.19 in |
| Dimension L Length Overall Mm | 22 mm |
| Dimension Length Overall Inch | 0.88 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | High torque strength ground rod connector accepts a wide range of copper conductors to ground rod;UL467 Listed;Acceptable for direct burial in earth or concrete;Prefilled with PENETROX compound and strip sealed |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Certified Listed | BABA Compliant (All status valid till December 2024) |
| FV Conductor Copper Str Size Range | 4/0 AWG - 250 kcmil |
| FV Conductor Rod Size Range | 3/4 in |
| FV Die Index | 998;1012 |
| FV Standards Industry Standards Met | UL467;IEEE 837 |
| FV Trade Name | HYTAIL |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 4/0-250 TO 3/4 GRD ROD;250 COMP GRD TAP |
| Item Number | 22075 |
| Long Description | COMPRESSION GROUND ROD CONNECTOR, 4/0 AWG MIN. RUN CONDUCTOR SIZE; 250 KCMIL MAX. RUN CONDUCTOR SIZE; COPPER CONDUCTOR MATERIAL; UL 467, CSA APPROVAL; COPPER BODY MATERIAL; HYGROUND[R], HYTAIL[TM] BRAND; ROHS COMPLIANT; YGHR-C MODEL |
| MSDS Form Number | * |
| Material | Copper |
| Maximum Run Conductor Size | 250 KCMIL |
| Minimum Pack Quantity | 1 |
| Minimum Run Conductor Size | 4/0 AWG |
| Model | YGHR-C |
| Noun | * |
| Oxide Inhibitor Type | Penetrox E |
| Pallet Quantity | 4440 |
| Physical Attribute Number Of Crimps Required | 1 |
| Plated | N |
| Plating Type | Unplated |
| Precrimp Die | UPRECRIMP58 |
| Prefilled Oxide Inhibitor | Y |
| Product Description | 4/0-250 TO 3/4 GRD ROD |
| Product Keywords | WEBREADY |

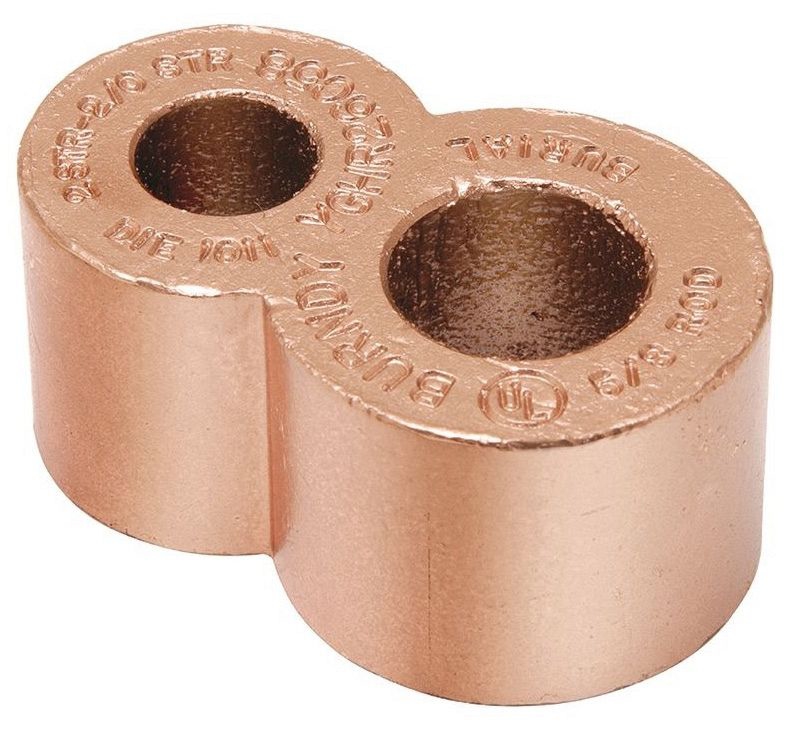

| Product Name | YGHR29C34 Figure 8 Compression Ground Rod Connector | |
| ProductLine | BUR |
| Special Features | Features: High Torque Strength Ground Rod Connectors, Accommodates A Wide Range Of Copper Conductors To Ground Rod, UL467 Listed, Acceptable For Direct Burial In Earth Or Concrete, Prefilled With PENETROX Compound And Strip Sealed, Ground Rod Size: 3/4 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750, PAT750 Tool, PU998 Die, (1), U1011 Die, (2), HYPRESS: Y45 Tool, PU998 Die With PT6515 Adapter, (1), S1012 Die, (2), Y46 Tool, PU998 Die With PUADP-1 Adapter, (1), P1011 Die, (2), Conductor Type: Stranded Copper, Shape: 8, Conductor Size (run - Range): 4/0 AWG - 250 KCMIL, Die Index: 998 Element A |
| UNSPSC | 39121427 |
| UPC | 78181022075 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
