| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YS1CLBOX |
| Additional Information | RoHS Compliant; Wire Strip Length 15/16 Inch; Die Index 11/375; Temperature Rating 90 Deg C |
| Application | Wire Splice |
| Approval | UL, CSA |
| Barrel Type | Standard with Chamfered |
| Base Price | 0.0000 |
| Body Material | Electro-Tin Plated Copper |
| Brand Name | HYLINK |
| Catalog Number | YS1CLBOX |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Color Code | Green |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Material | Copper |
| Conductor Size | 1 AWG Stranded |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | 1 AWG CU, Standard Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, GREEN Color Code, 11 or 375 Die Index. |
| Description Short | 1 AWG, CU, Standard Barrel SPLICE |
| Description Slang | SPLICE CODE STD BBL |
| Die Index | 11 |
| Dimension B Length Fraction | 7/8 in |
| Dimension B Length Inch | 0.88 in |
| Dimension L Length Overall Mm | 52 mm |
| Dimension Length Overall Inch | 2.06 in |
| Dimension Outside Diameter Inch | 0.46 in |
| Dimension Strip Length Inch | 15/16 |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Copper seamless barrel with center stop indentations to indicate when wire is fully inserted into each side of the barrel;Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements;Connectors clearly marked with color coding |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| FV Industry Standard S | UL 486A-486B |
| FV Product Family | COMPRESSION |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered |
| Feature Barrel Type | Standard |
| Finish | Tin-Plated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1 STR. CU. BUTT SPLICE;1AWG BUTT SPLICE |
| Item Number | 55500 |
| Length | 2.06 Inch |
| Long Description | COMPRESSION SPLICE, BUTT WITH CENTRE WIRE STOP TYPE; 2.06 INCH; 0.46 INCH OUTER DIAMETER; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 600 V TO 35 KV VOLTAGE RATING; ELECTRO-TIN PLATED COPPER BODY MATERIAL; 1 AWG STRANDED CONDUCTOR SIZE; GREEN COLOR CODE |
| MSDS Form Number | * |
| Material | COPPER |
| Minimum Pack Quantity | 1 |
| Model | Type YS-L |
| Noun | * |
| Outer Diameter | 0.46 Inch |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Product Description | 1 STR. CU. BUTT SPLICE |
| Product Keywords | WEBREADY |

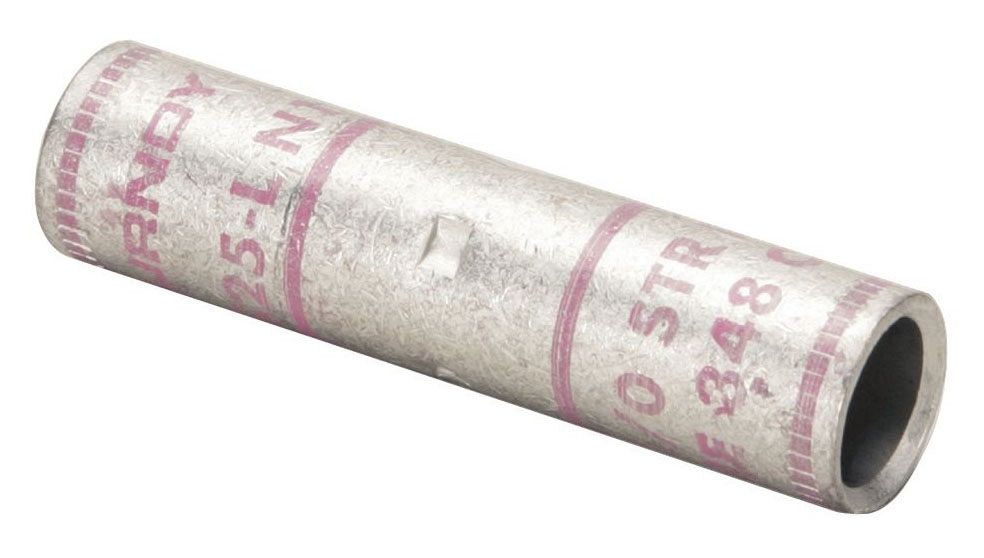

| Product Name | YS1CLBOX, Compression Splice, 1 AWG, Copper, Standard Barrel |
| Product Type | SPLICE |
| ProductLine | BUR |
| Rating KVA | 35 kV | |
| Special Features | Features: Standard Barrel Length: Ideal For Limited Space Applications While Providing Ample Barrel Length For Proper Crimp, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, Color Code: Green, Tapered End: No, Oil Stop: No, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Die Index: 11 Or 375, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: Y2MR, Y1MRTC Tool, Y1MRTC Die, (2), MD7-34R Tool, W1CVT Die, (1), MD6, OUR840 Tool, X1CRT Die, (1), Y35, Y39, Y750 Tool, U1CRT-1 Die, (1), Y46 Tool, U1CRT-1 Die With PUADP-1 Adapter, (1), Wire Strip Length: 15/16 IN, Conductor Type: Commercial Stranded Copper |
| Standard | UL 486A-486B |
| Type | YS-L, Standard Barrel;Butt with Centre Wire Stop |
| UNSPSC | 39121449 |
| UPC | 78181055500 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 35 kV;600 V to 35 KV |
