| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YS29LBOX |
| Additional Information | RoHS Compliant; Wire Strip Length 1-1/8 Inch; Die Index Number 16; Temperature Rating 90 Deg C |
| Application | Wire Splice |
| Approval | UL 486A/B, CSA |
| Barrel Type | Short with Chamfered |
| Base Price | 0.0000 |
| Body Material | Electro Tin Plated Copper |
| Brand Name | HYLINK |
| Catalog Number | YS29LBOX |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Color Code | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Material | Copper |
| Conductor Size | 250 KCMIL Stranded, 250 Navy |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | 250 kcmil CU, Standard Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, YELLOW Color Code, 16 Die Index. |
| Description Short | 250 kcmil, CU, Standard Barrel SPLICE |
| Description Slang | SPLICE CODE STD BBL |
| Die Index | 16 |
| Dimension B Length Fraction | 1-1/16 in |
| Dimension B Length Inch | 1.06 in |
| Dimension L Length Overall Mm | 62 mm |
| Dimension Length Overall Inch | 2.46 in |
| Dimension Outside Diameter Inch | 0.75 in |
| Dimension Strip Length Inch | 1-1/8 |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Copper seamless barrel with center stop indentations to indicate when wire is fully inserted into each side of the barrel;Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements;Connectors clearly marked with color coding |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| FV Industry Standard S | UL 486A-486B |
| FV Product Family | COMPRESSION |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered |
| Feature Barrel Type | Standard |
| Finish | Tin-Plated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 250 MCM CU. BUTT SPLICE;250MCM BUTTSPLICE |
| Item Number | 55700 |
| Length | 2.46 Inch |
| Long Description | COMPRESSION SPLICE, BUTT AND CENTRE WIRE STOP TYPE; 2.46 INCH; 0.75 INCH OUTER DIAMETER; COPPER CONDUCTOR MATERIAL; UL 486A/B, CSA APPROVAL; 600 VOLT TO 35 KILOVOLT VOLTAGE RATING; ELECTRO TIN PLATED COPPER BODY MATERIAL |
| MSDS Form Number | * |
| Material | COPPER |
| Minimum Pack Quantity | 1 |
| Model | YS |
| Noun | * |
| Outer Diameter | 0.75 Inch |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Product Description | 250 MCM CU. BUTT SPLICE |
| Product Keywords | WEBREADY |

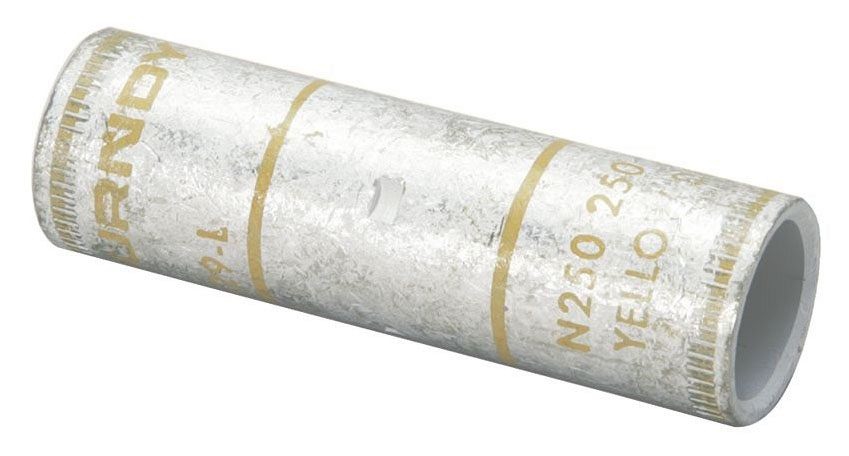

| Product Name | YS29LBOX, Compression Splice, 250 kcmil Cu, Standard Barrel |
| Product Type | SPLICE |
| ProductLine | BUR |
| Rating KVA | 35 kV | |
| Special Features | Features: Standard Barrel Length: Ideal For Limited Space Applications While Providing Ample Barrel Length For Proper Crimp, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, Color Code: Yellow, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Oil Stop: No, Tapered End: No, Die Index: 16 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD7-34R Tool, W29VT Die, (2), Y35, Y39, Y750 Tool, U29RT-1 Die, (1), Y46 Tool, U29RT-1 Die With PUADP-1 Adapter, (1), Wire Strip Length: 1-1/8 IN, Conductor Type: Commercial Stranded Copper |
| Standard | UL 486A-486B |
| Type | YS-L, Standard Barrel;Butt and Centre Wire Stop |
| UNSPSC | 39121449 |
| UPC | 78181055700 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 35 kV;600 Volt to 35 Kilovolt |
