| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YS34A1 |
| Additional Information | RoHS Compliant; Wire Strip Length 2 5/8 Inch; Die Index 300; Temperature Rating 90 Deg C |
| Application | Wire Splice |
| Approval | UL, CSA |
| Barrel Type | Long with Belled End, Chamfered |
| Base Price | 0.0000 |
| Body Material | Electro-Tin Plated Aluminum |
| Brand Name | HYLINK |
| Catalog Number | YS34A1 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Color Code | Pink |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Material | Aluminum/Copper |
| Conductor Size | 500 KCMIL Aluminum/Stranded Copper |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | AL Splice, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX A13 oxide inhibitor, End Cap, UL/CSA, 90C, Up to 35kV, Color Code, Die Index. |
| Description Short | 500 KCMIL, AL, SPLICE, AL9CU |
| Description Slang | AL SPLICE UNINSULATED |
| Die Index | 300 |
| Dimension B Length Fraction | 2-3/8 in |
| Dimension B Length Inch | 2.38 in |
| Dimension L Length Overall Mm | 128 mm |
| Dimension Length Overall Inch | 5.02 in |
| Dimension Outside Diameter Inch | 1.32 in |
| Dimension Strip Length Inch | 2-5/8 in |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Aluminum splices are dual rated to accommodate both copper and aluminum wire;Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire;Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements;Clearly marked with wire size, die index, color code, and crimp location bands;Factory pre-filled with PENETROX Type A13 oxide inhibitor;Color coded end caps inserted in the barrels to match the die color code and prevent foreign materials from entering the barrel |
| FV BuyAmericanCompliant | No |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Industry Standard S | UL 486A-486B |
| FV Product Family | COMPRESSION |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered |
| Feature Barrel Type | Long |
| Finish | Tin-Plated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | ALUMINUM BUTT SPLICE, 5.02 IN L;500MCM BUTT SPLICE |
| Item Number | 75755 |
| Length | 5 Inch |
| Long Description | UNINSULATED COMPRESSION SPLICE, BUTT WITH CENTRE WIRE STOP TYPE; 5 INCH; 1.32 INCH OUTER DIAMETER; ALUMINUM/COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 600 V TO 35 KV VOLTAGE RATING; ELECTRO-TIN PLATED ALUMINUM BODY MATERIAL |
| MSDS Form Number | * |
| Material | ALUMINUM |
| Minimum Pack Quantity | 1 |
| Model | Type YS-A |
| Noun | * |
| Outer Diameter | 1.32 Inch |
| Plated | Y |
| Plating Type | Tin - Electro Plated |

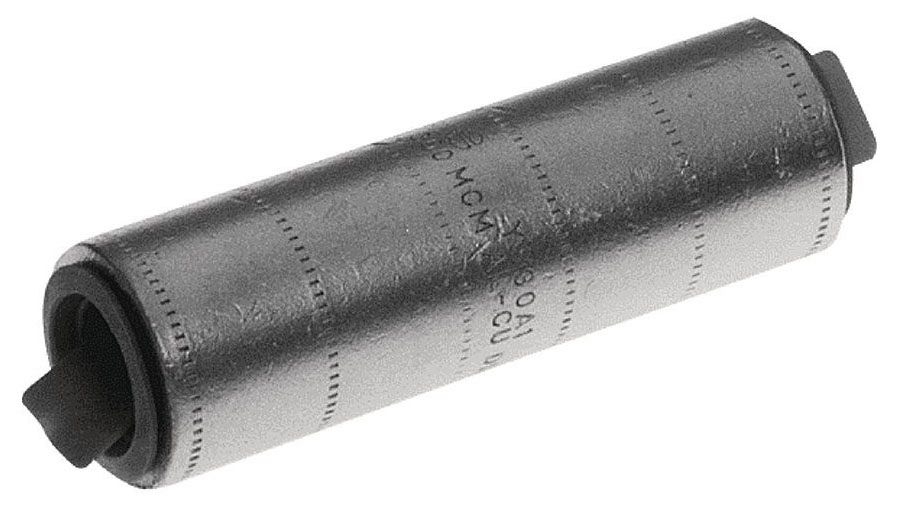

| Product Description | ALUMINUM BUTT SPLICE, 5.02 IN L |
| Product Keywords | WEBREADY |
| Product Name | YS34A1, Al Compression Splice, 500 kcmil, AL9CU |
| Product Type | SPLICE |
| ProductLine | BUR |
| Rating KVA | 35 kV | |
| Special Features | Features: Manufactured From High-Conductivity Wrought Aluminum With Heavy Duty Wall Thickness: Provides High-Conductivity/Low Resistance And Ductility For An Excellent Combination Of Electrical And Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Corrosion Resistance, Internally Bevelled Barrel: Provides Easy Cable Entry, Solid Center Stop And Prefilled With PENETROX Oxide Inhibiting Compound: Provides Stop For Proper Conductor Insertion And An Aid In Forcing The PENETROX Between The Individual Wire Strands, Color-Coded End Caps: Provides Easy Wire Size And Die Code Identification Plus Prevents Foreign Materials From Entering And Contaminating The Connector Prior To Usage, Connector Is Clearly Marked With Wire Size, Die Index And The Proper Number And Location Of Crimps: Provides Easy Identification And Tooling Recommendation, Proper Compression Forms A Homogeneous Mass Resulting In An Excellent Electrical Connection, UL Listed for Aluminum only, Dieless Tools (number Of Crimps): Hydraulic HYPRESS: Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4), Color Code: Pink, Die Index: 300 Element A, Conductor Type: Stranded Aluminum Or Copper, Wire Strip Length: 2-5/8 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y75 Tool, U34ART Die, (4), Y46 Tool, U34ART Die With PUADP-1 Adapter, (4) |
| Standard | UL 486A-486B |
| Type | YS-A, Standard Barrel;Butt with Centre Wire Stop |
| UNSPSC | 39121449 |
| UPC | 78181075755 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 35 kV;600 V to 35 KV |
