| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YS36 |
| Additional Information | RoHS Compliant; Wire Strip Length 2-3/4 Inch; Die Index 22/472; Temperature Rating 90 Deg C |
| Application | Wire Splice |
| Approval | UL, CSA |
| Barrel Type | Long with Bevelled Entry, Chamfered |
| Base Price | 0.0000 |
| Body Material | Electro Tin Plated Copper |
| Brand Name | HYLINK |
| Catalog Number | YS36 |
| Certification CSA Approved | Yes |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Color Code | Green |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Material | Copper |
| Conductor Size | 600 KCMIL |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | 600 kcmil CU, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, GREEN Color Code, 22 or 472 Die Index. |
| Description Short | 600 kcmil, CU, Long Barrel SPLICE |
| Description Slang | SPLICE CODE LG BBL |
| Die Index | 22 |
| Dimension B Length Inch | 2.63 in |
| Dimension L Length Overall Mm | 149 mm |
| Dimension Length Overall Inch | 5.85 in |
| Dimension Strip Length Inch | 2-11/16 |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Copper seamless barrel with center stop indentations to indicate when wire is fully inserted into each side of the barrel;Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements;Connectors clearly marked with color coding |
| FV BuyAmericanCompliant | No |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Industry Standard S | UL 486A-486B |
| FV Product Family | COMPRESSION |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered |
| Feature Barrel Type | Long |
| Finish | Tin-Plated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | BUTT SPLICE LONG 600;600MCM COP BUTT SPLICE |
| Item Number | 52625 |
| Length | 5.85 Inch |
| Long Description | COMPRESSION SPLICE, BUTT WITH CENTER WIRE STOP TYPE; 5.85 INCH; 1.18 INCH OUTER DIAMETER; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 35 KILOVOLT VOLTAGE RATING; ELECTRO TIN PLATED COPPER BODY MATERIAL; 600 KCMIL CONDUCTOR SIZE; GREEN COLOR CODE |
| MSDS Form Number | * |
| Material | COPPER |
| Minimum Pack Quantity | 1 |
| Model | YS |
| Noun | * |
| Outer Diameter | 1.18 Inch |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Product Description | BUTT SPLICE LONG 600 |
| Product Keywords | WEBREADY |

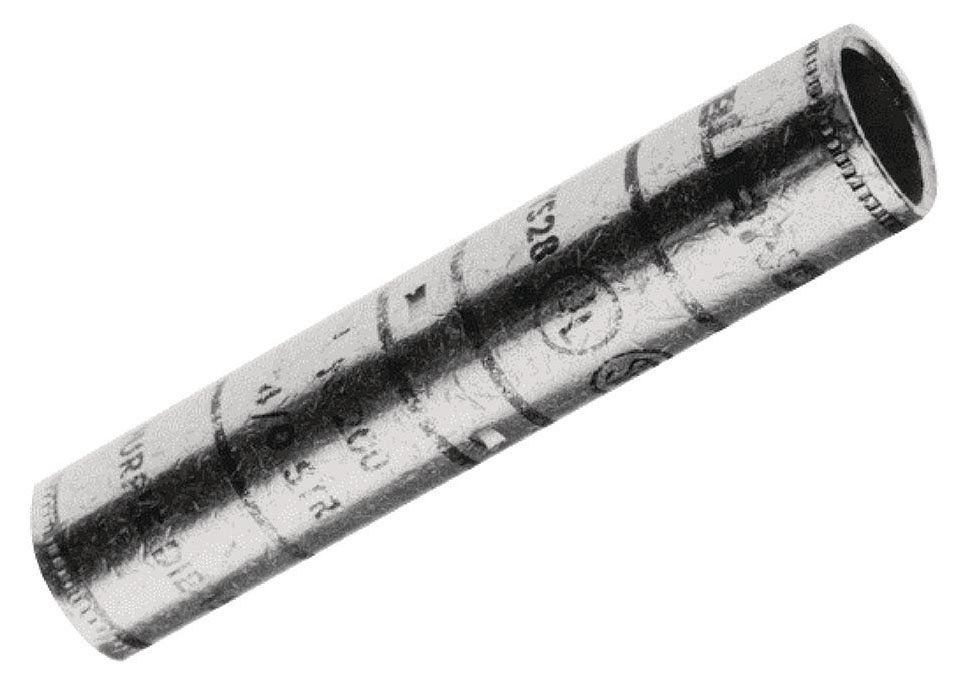

| Product Name | YS36, Cu Compression Splice, Long Barrel, 600 kcmil |
| Product Type | SPLICE |
| ProductLine | BUR |
| Rating KVA | 35 kV |
| Related Links List | "Find Alternate Products" |
| Special Features | Features: UL Listed 90 DEG C, 600 Volts to 35 kV, Long Barrel Length: Ideal For 600 Volt Heavy Duty Applications, Also May Be Used At Higher Voltages Up To 35KV, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, High Pull Out Force: Provides Added Security For Much Greater Mechanical And Electrical Properties, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4), Tapered End: No, Oil Stop: No, Color Code: Green, Die Index: 22 Or 472, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750 Tool, U36RT Die, (4), Y46 Tool, U36RT Die With PUADP-1 Adapter, (4), Conductor Type: Commercial Stranded Copper, Wire Strip Length: 2-3/4 IN |
| Standard | UL 486A-486B |
| Standards Industry Standards Met | UL 486A-486B |
| Standards RoHS Compliance Status | CM |
| Trade Name | HYLINK |
| Type | YS, Long Barrel;Butt with Center Wire Stop |
| UL Listed | Yes | |
| UNSPSC | 39121449 |
| UPC | 78181052625 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 35 kV;35 Kilovolt |
