| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YS39 |
| Additional Information | RoHS Compliant; Wire Strip Length 2-15/16 Inch; Die Index Number 24; Temperature Rating 90 Deg C |
| Application | Wire Splice |
| Approval | UL 486A/B, CSA |
| Barrel Type | Long with Beveled Entry, Chamfered |
| Base Price | 0.0000 |
| Body Material | Electro Tin Plated Copper |
| Brand Name | Burndy;HYLINK |
| Catalog Number | YS39 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Color Code | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Material | Copper |
| Conductor Size | 750 KCMIL Stranded |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

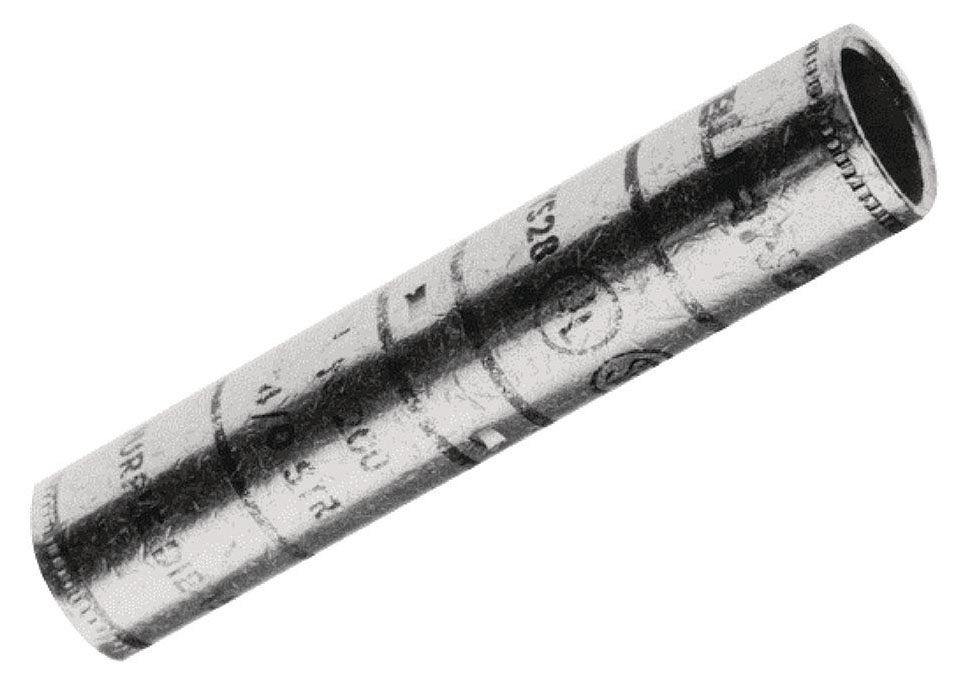

| Description Long | 750 kcmil CU, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, BLACK Color Code, 24 Die Index. |
| Description Short | 750 kcmil, CU, Long Barrel SPLICE |
| Description Slang | SPLICE CODE LG BBL |
| Die Index | 24 |
| Dimension B Length Inch | 2.81 in |
| Dimension L Length Overall Mm | 162 mm |
| Dimension Length Overall Inch | 6.38 in |
| Dimension Strip Length Inch | 2-7/8 |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FV Industry Standard S | UL 486A-486B | |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered |
| Feature Barrel Type | Long |
| Finish | Tin Plated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | BUTT SPLICE LONG 750;750MCM COP BUTT SPLICE |
| Item Number | 52685 |
| Length | 6.38 Inch |
| Long Description | COMPRESSION SPLICE, BUTT AND CENTRE WIRE STOP TYPE; 6.38 INCH; 1.3 INCH OUTER DIAMETER; COPPER CONDUCTOR MATERIAL; UL 486A/B, CSA APPROVAL; 600 VOLT TO 35 KILOVOLT VOLTAGE RATING; ELECTRO TIN PLATED COPPER BODY MATERIAL; 750 KCMIL STRANDED CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Copper |
| Minimum Pack Quantity | 1 |
| Model | YS |
| Noun | * |
| Outer Diameter | 1.3 Inch |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Product Description | BUTT SPLICE LONG 750 |
| Product Keywords | WEBREADY |
| Product Name | Compression Splice |
| Product Type | SPLICE |
| ProductLine | BUR |
| Rating KVA | 35 kV |
| Related Links List | "Find Alternate Products" |
| Special Features | Features: UL Listed 90 DEG C, 600 Volts to 35 kV, Long Barrel Length: Ideal For 600 Volt Heavy Duty Applications, Also May Be Used At Higher Voltages Up To 35KV, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, High Pull Out Force: Provides Added Security For Much Greater Mechanical And Electrical Properties, Color Code: Black, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4), Oil Stop: No, Tapered End: No, Die Index: 24 Element A, Conductor Type: Commercial Stranded Copper, Wire Strip Length: 2-15/16 IN, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750 Tool, U39RT Die, (4), Y46 Tool, U39RT Die With PUADP-1 Adapter, (4) |
| Standard | UL 486A-486B |
| Standards Industry Standards Met | UL 486A-486B |
| Standards RoHS Compliance Status | CM |
| Sub Brand | HYLINK |
| Trade Name | HYLINK |
| Type | YS, Long Barrel;Butt and Centre Wire Stop |
| UL Listed | Yes |
| UNSPSC | 39121449 |
| UPC | 78181052685 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Maximum | 35,000 |
| Voltage Rating | 35,000 V;600 Volt to 35 Kilovolt |
