| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YS8CLBOX |
| Additional Information | RoHS Compliant; Wire Strip Length 1/2 Inch; Die Index 49; Temperature Rating 90 Deg C |
| Application | Wire Splice |
| Approval | UL, CSA |
| Barrel Type | Standard with Chamfered |
| Base Price | 0.0000 |
| Body Material | Electro-Tin Plated Copper |
| Brand Name | HYLINK |
| Catalog Number | YS8CLBOX |
| Certification CSA Approved | CSA |
| Certification CULus | NO |
| Certification ETL | No |
| Certification UL Recognized | No |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Color Code | Red |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Material | Copper |
| Conductor Size | 8 AWG Stranded |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | 8 AWG CU, Standard Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, RED Color Code, 49 Die Index. |
| Description Short | 8 AWG, CU, Standard Barrel SPLICE |
| Description Slang | SPLICE CODE STD BBL |
| Die Index | 49 |
| Dimension B Length Fraction | 7/16 in |
| Dimension B Length Inch | 0.44 |
| Dimension L Length Overall Mm | 25 mm |
| Dimension Length Overall Inch | 1.00 in |
| Dimension Outside Diameter Inch | 0.27 in |
| Dimension Strip Length Inch | 1/2 |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Copper seamless barrel with center stop indentations to indicate when wire is fully inserted into each side of the barrel;Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements;Connectors clearly marked with color coding |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| FV Industry Standard S | UL 486A-486B |
| FV Product Family | COMPRESSION |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered |
| Feature Barrel Type | Standard |
| Finish | Tin-Plated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 8 STR. CU. BUTT SPLICE;8AWG BUTT SPLICE |
| Item Number | 02209 |
| Length | 1.06 Inch |
| Long Description | COMPRESSION CABLE SPLICE CONNECTOR, BUTT WITH CENTRE WIRE STOP TYPE; 1.06 INCH; 0.27 INCH OUTER DIAMETER; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 600 V TO 35 KV VOLTAGE RATING; ELECTRO-TIN PLATED COPPER BODY MATERIAL; 8 AWG STRANDED CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Copper |
| Minimum Pack Quantity | 50 |
| Model | Type YS-L |
| Noun | * |
| Outer Diameter | 0.27 Inch |
| Pallet Quantity | 60000 |
| Plated | Y |
| Plating Type | Tin - Electro Plated |
| Product Description | 8 STR. CU. BUTT SPLICE |
| Product Keywords | WEBREADY |

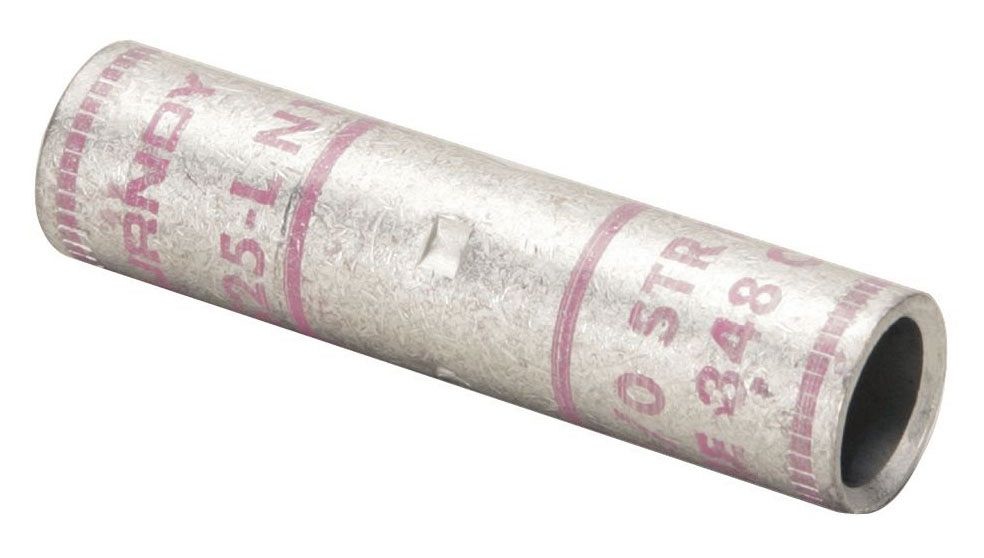

| Product Name | YS8CLBOX, Compression Splice, 8 AWG Cu, Standard Barrel |
| Product Type | SPLICE | |
| ProductLine | BUR |
| Special Features | Features: Standard Barrel Length, Ideal For Limited Space Applications While Providing Ample Barrel Length For Proper Crimp, Four (4) Center Conductor Stops, Provides A Center Wire Stop For Proper Conductor Insertion, Conductor Type: Commercial Stranded Copper, Die Index: 49 Element A, Color Code: Red, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: Y1MRTC, Y2MR Tool, (1), MD7-34R Tool, W8CVT Die, (1), MD6, OUR840 Tool, X8CRT Die, (1), Y35, Y39, Y750, Y46 Tool, U8CRT Die, (1), Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Wire Strip Length: 1/2 IN |
| Standard | UL 486A-486B |
| Type | YS-L, Standard Barrel;Butt with Centre Wire Stop |
| UNSPSC | 39121449 |
| UPC | 78181002209 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 35 kV;600 V to 35 KV |
