| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | YSV10 |
| Additional Information | RoHS Compatible; Wire Strip length 5/16 Inch |
| Application | For All Heavy Duty Industrial And General Purpose Applications |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Burndy;HYLINK[TM] |
| Catalog Number | YSV10 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Size | 12 to 10 AWG Solid/Stranded (Copper), 12 to 10 AWG (Aircraft), 6 to 9 AWG (Navy) |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

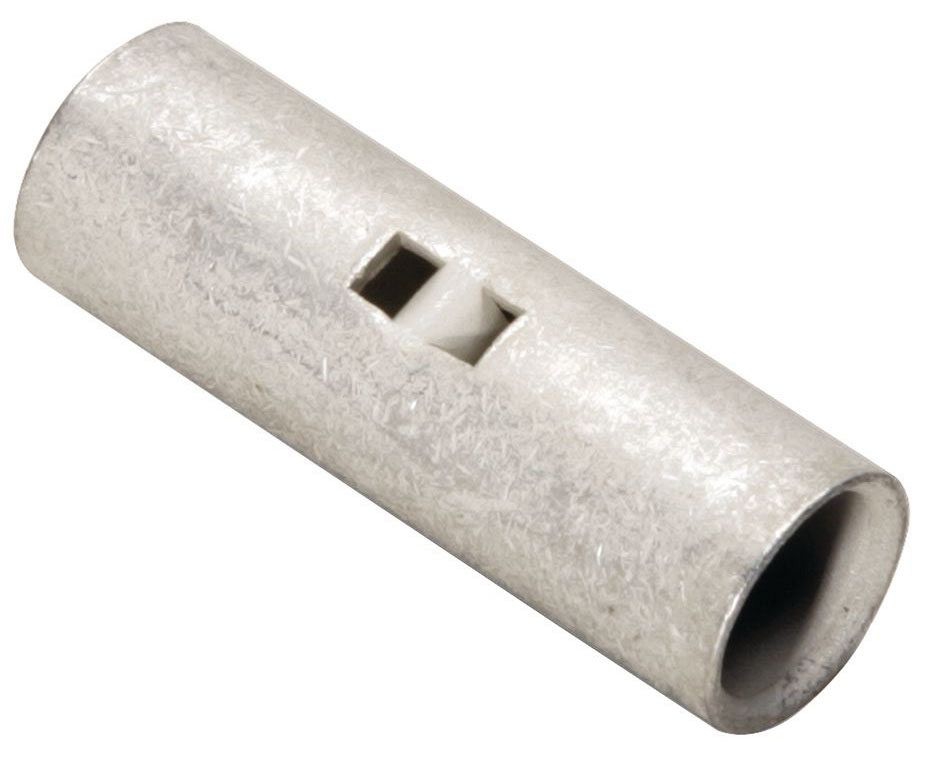

| Description Long | "Copper Butt Splice, w/ Inspection Hole, 12-10 AWG, 0.75"" Splice Length, Tin Plated." |
| Description Marketing Copy | YSV10. |
| Description Short | Uninsulated Splice For 12 - 10 AWG |
| Die Index | 36 |
| Dimension B Length Fraction | 5/16 in |
| Dimension B Length Inch | 0.31 in |
| Dimension Inside Diameter Inch | 0.13 in |
| Dimension L Length Overall Mm | 19 mm |
| Dimension Length Overall Inch | 0.75 in |
| Dimension Outside Diameter Inch | 0.21 in |
| Dimension Strip Length Inch | 5/16 |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FV Conductor Copper Str Navy Size Range | 6 (7)-9 (37) | |
| FV Standards Industry Standards Met | UL486 |
| FV Trade Name | HYLINK |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Feature Barrel Style | Chamfered |
| Image Location | * Image |
| Industry | ELX |
| Insulation Type | Non-Insulated |
| InvoiceDescription | 12-10 HVYDTY BUTT SPLICE;10AWG BUTT SPLICE |
| Item Number | 80605 |
| Length | 0.75 Inch |
| Long Description | SPLICE CONNECTOR, BUTT TYPE; SEAMLESS ELECTROLYTIC TIN PLATED COPPER MATERIAL; 0.75 INCH; UL, CSA APPROVAL; 600 V VOLTAGE RATING; 12 TO 10 AWG SOLID/STRANDED (COPPER), 12 TO 10 AWG (AIRCRAFT), 6 TO 9 AWG (NAVY) CONDUCTOR SIZE |
| MSDS Form Number | * |
| Material | Copper;Seamless Electrolytic Tin Plated Copper |
| Minimum Pack Quantity | 1,000 |
| Model | YSV |
| Noun | * |
| Plated | Y |
| Plating Type | Tin |
| Product Description | 12-10 HVYDTY BUTT SPLICE |
| Product Keywords | WEBREADY |
| Product Name | Uninsulated Splice For 12 - 10 AWG |
| Product Type | SPLICE |
| ProductLine | BUR |
| Special Features | Features: HYLINK Type YSV Seamless Splice Connector Is Used To Splice Stranded And Solid Copper Conductors In Virtually All Heavy Duty Industrial And General Purpose Applications, Manufactured From Seamless Tubing: A High Quality Design With No Seams To Split, Electrolytic Copper: Provides Maximum Conductivity, Low Resistance And Ductility For Excellent Crimp Forming Properties, Electro-Tin Plated: Provides Durable Long Lasting Resistance To Corrosion, Positive Center Wire Stops: Provides Proper Depth Of Wire Insertion, Marked With Wire Size: Provides Easy Wire Size Identification, The HYLINK Splice Connectors Have Inspection Holes: Provides Easy Visual Inspection ForProper Wire Insertion, Installation Tool: HYTOOL: Non-Ratchet: Y10D, Y10-22 Tool, Ratchet: Y8MRB-1, MR20, MR8G98, MR8-9Q Tool, Insulation Support: No, Conductor Type: Solid Conductor, Wire Strip Length: 5/16 IN |
| Standards Industry Standards Met | UL486 |
| Standards RoHS Compliance Status | CM |
| Sub Brand | HYLINK |
| Temperature Rating | 90 |
| Trade Name | HYLINK |
| Type | Splice;Butt |
| UL Listed | Yes |
| UNSPSC | 39121449 |
| UPC | 78181080605 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Maximum | 35,000 V |
| Voltage Rating | 600 V |
