| Manufacturer Name | BUSSMANN |
| MfgPartNo | 16003-4 |
| Additional Information | RoHS Compliant; Short Circuit Current Rating 10 Kiloamp; Application Dual Wire Port, Ferrule Terminal |
| Amperage Rating | 255 A |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Eaton |
| Catalog Number | 16003-4 |
| Color | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 61320 |
| Commodity Description | Power Blocks & Distribution Blocks |
| Conductor Material | Copper, Aluminum |
| CountryOfOrigin | MX |
| Current Rating | 255 Amp |
| DDCATEGORY | 586 |
| Dimensions | 2.6600 IN X 6.1300 IN X 2.6000 IN |
| Directory | CIS |
| Families | 586 |
| Family Description | Power Blocks & Distribution Blocks |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | POWER TERMINAL BLOCK;TERM BLOCK |
| Item Number | 20768 |

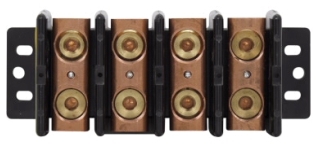

| Long Description | POWER DISTRIBUTION BLOCK, SPLICER TYPE; BLACK COLOR; COPPER, ALUMINUM CONDUCTOR MATERIAL; UL, CSA APPROVAL; 600 VOLT AC/DC VOLTAGE RATING; 255 AMP CURRENT RATING; 75 DEG C TEMPERATURE RATING; 4 POLE(S) |
| MSDS Form Number | * |
| Material | Thermoplastic |
| Noun | * |
| Number Of Poles | 4 |
| Number Of Primary Openings Per Pole | 1 |
| Number Of Secondary Openings Per Pole | 1 |
| Primary Opening Wire Size | 6 AWG to 250 KCMIL Copper |
| Product Description | POWER TERMINAL BLOCK |
| Product Keywords | WEBREADY |
| Product Name | Fuse block |
| ProductLine | BUSS |
| Secondary Opening Wire Size | 6 AWG to 250 KCMIL Copper |
| Size | 6.62 In Length X 2.80 In Width X 2.12 In Height |
| Special Features | Short Circuit Rating 10 kA |
| Standard | Contact Manufacturer,RoHS Compliant,Contact factory |
| Sub Brand | Bussmann Series |
| Temperature Rating | 75 Deg C |
| Type | Power splicer block;Splicer |
| UNSPSC | 39121629 |
| UPC | 05171220768 |
| Vendor Name | EATON BUSSMANN |
| Vendor Number | 051712 |
| Vendor Short Name | BUSS |
| Voltage Rating | 600 VAC//VDC;600 Volt AC/DC |
