| Manufacturer Name | BUSSMANN |
| MfgPartNo | 16332-3 |
| Additional Information | RoHS Compliant; Short Circuit Current Rating 10 Kiloamp; Flammability Rating UL 94V0; Application Dual Wire Port, Ferrule Terminal |
| Amperage Rating | 310A |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Approval | UL |
| Base Price | 0.0000 |
| Catalog Number | 16332-3 |
| Color | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 61320 |
| Commodity Description | Power Blocks & Distribution Blocks |
| Conductor Material | Copper, Aluminum |
| Connector Material | Tin-Plated Aluminum |
| CountryOfOrigin | MX |
| Current Rating | 310 Amp |
| DDCATEGORY | 586 |
| Dimensions | 6.5000 IN X 4.2500 IN X 3.7500 IN |
| Directory | CIS |
| Families | 586 |
| Family Description | Power Blocks & Distribution Blocks |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | TERM. BLOCK ASSY;TERM BLOCK |
| Item Number | 26902 |

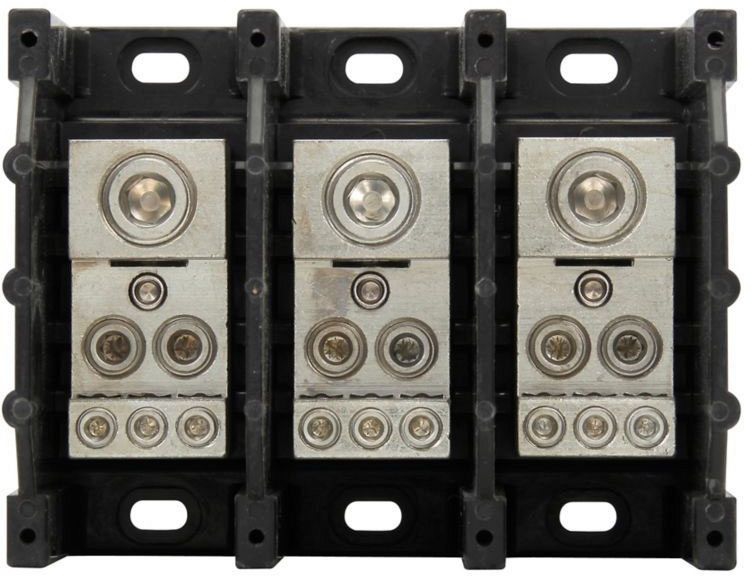

| Long Description | POWER DISTRIBUTION BLOCK, BARRIER TYPE; BLACK COLOR; COPPER, ALUMINUM CONDUCTOR MATERIAL; UL APPROVAL; 600 VOLT AC/DC VOLTAGE RATING; 310 AMP CURRENT RATING; 75 DEG C TEMPERATURE RATING; 3 POLE(S); TIN-PLATED ALUMINUM CONNECTOR MATERIAL |
| MSDS Form Number | * |
| Material | Molded thermoplastic base, tin plated aluminum connector |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Primary Openings Per Pole | 1 |
| Number Of Secondary Openings Per Pole | 5 |
| Primary Opening Wire Size | 2/0 AWG to 350 KCMIL Copper/Aluminum (Stranded), 1/0 AWG Copper/Aluminum (Stranded), 6 to 1 AWG Copper/Aluminum |
| Product Description | TERM. BLOCK ASSY |
| Product Keywords | WEBREADY |
| Product Name | Fuse block |
| ProductLine | BUSS |
| Secondary Opening Wire Size | 3 to 2 AWG Copper/Aluminum (Stranded), 4 AWG Copper/Aluminum, 6 AWG Copper/Aluminum, 8 AWG Copper/Aluminum, 14 to 10 AWG Copper, 3 to 1/0 AWG Copper/Aluminum (Stranded), 4 AWG Copper, 8 to 4 AWG Aluminum (Stranded), 14 to 6 AWG Copper |
| Size | 5.21 In Length X 4.00 In Width X 3.32 In Height |
| Special Features | Short Circuit Current Rating 10 kA |
| Standard | Contact Manufacturer,RoHS Compliant,Contact factory |
| Temperature Rating | 75 Deg C |
| Type | Power distribution block;Barrier |
| UNSPSC | 39121629 |
| UPC | 05171226902 |
| Vendor Name | EATON BUSSMANN |
| Vendor Number | 051712 |
| Vendor Short Name | BUSS |
| Voltage Rating | 600 Vac, 600 Vdc;600 Volt AC/DC |
