BUSS ABC-10-R

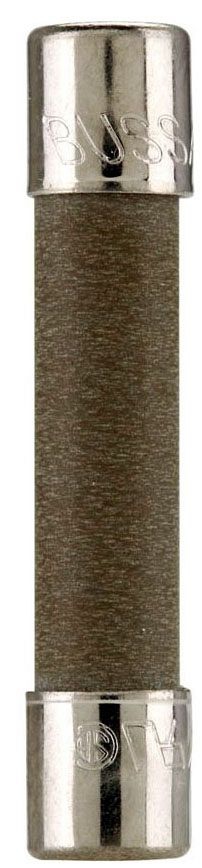

ABC 10A BUSS FA 5-IN BOX -R

Page Loading...
BUSSMANN
ABC 10A BUSS FA 5-IN BOX -R

Mouse over image to zoom, click to enlarge

Description:
ABC 10A BUSS FA 5-IN BOX -R

UPC:  05171264616

Part Number: ABC-10-R

UNSPSC: 39121609

Status:  UNKNOWN

Retail Price:  $403.00 / EA
Your Price:  $1.98 / EA


Quantity  EA

Specifications

Manufacturer Name BUSSMANN
MfgPartNo ABC-10-R
Additional Information RoHS Compliant; Endcap Material Nickel Plated Brass; Application Electronic Circuit
Amperage Rating 10 A
Application Ind Facilities & Factories - Facility: Safety and Security Systems
Approval UL 248-14, CSA, CE
Base Price 0.0000
Brand Name Eaton
Catalog Number ABC-10-R
Characteristics Fast Acting
Commerce Sector Construction Materials
Commodity Code 61200
Commodity Description Small Dimension Fuses
Connection Ferrule end x ferrule end
CountryOfOrigin MUL
Current Rating 10 Amp
DDCATEGORY 281
Diameter 1/4 Inch
Dimensions 1.2500 IN X 0.2500 IN X 0.2500 IN
Directory CIS
Families 281
Family Description Small Dimension Fuses
Image Location * Image
Industry ELX
Interrupt Rating 10 kAIC at 125 Vac/dc200 AIC at 250 Vac
Interrupting Rating 200 Amp at 250 Volt AC, 10000 Amp at 125 Volt AC/DC
InvoiceDescription ABC 10A BUSS FA 5-IN BOX -R;250V SMALL DIM FUSE
Item Number 64616
Length 1-1/4 Inch
Long Description FUSE, CERAMIC TUBE TYPE; 1-1/4 INCH; UL 248-14, CSA, CE APPROVAL; 250 VOLT AC, 125 VOLT DC VOLTAGE RATING; 1/4 INCH DIAMETER; 200 AMP AT 250 VOLT AC, 10000 AMP AT 125 VOLT AC/DC INTERRUPTING RATING; 10 AMP CURRENT RATING; FERRULE TERMINAL TYPE
MSDS Form Number *
Material Ceramic tubeNickel-plated brass endcaps
Model ABC
Noun *
Product Description ABC 10A BUSS FA 5-IN BOX -R
Product Keywords WEBREADY
Product Name Midget fuses
ProductLine BUSS
Response Time 4 hr at 100%, 60 min at 135%, 120 sec at 200%
Size 1/4 In Diameter X 1-1/4 In Length
Special Features Interrupt Rating 200 Amp at 250 Vac, 10000 Amp at 125 Vac/Vdc, Material Ceramic Tube, Nickel Plated Brass Endcap, ROHS Compliant
Standard RoHS Compliant,CE Marked
Sub Brand Bussmann Series
Terminal Type Ferrule
Type Fast-acting fuse;Ceramic Tube
Type Of Indicators Non-Indicating
UNSPSC 39121609
UPC 05171264616
Vendor Name EATON BUSSMANN
Vendor Number 051712
Vendor Short Name BUSS
Voltage Rating 250 Vac, 125 Vdc, 32 Vac (self certified);250 Volt AC, 125 Volt DC

Resources

CatalogNumber ABC-10-R
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
