BUSS AGA-2

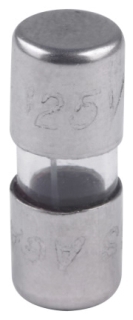

"AGA GLASS FUSE - 1/4"" x 5/8"" - 2 AMP"

Page Loading...
BUSSMANN
"AGA GLASS FUSE - 1/4"" x 5/8"" - 2 AMP"

Mouse over image to zoom, click to enlarge

Description:
"AGA GLASS FUSE - 1/4"" x 5/8"" - 2 AMP"

UPC:  05171270338

Part Number: AGA-2

UNSPSC: 39121607

Status:  UNKNOWN

Retail Price:  $468.00 / EA
Your Price:  $2.15 / EA


Quantity  EA

Specifications

Manufacturer Name BUSSMANN
MfgPartNo AGA-2
Additional Information Endcap Material Nickel Plated Brass
Amperage Rating 2 A
Application Ind Facilities & Factories - Facility: Safety and Security Systems
Approval UL 248-14
Base Price 0.0000
Brand Name Eaton
Catalog Number AGA-2
Characteristics Fast Acting
Commerce Sector Construction Materials
Commodity Code 61200
Commodity Description Small Dimension Fuses
Connection Ferrule end x ferrule end
CountryOfOrigin MUL
Current Rating 2 Amp
DDCATEGORY 281
Diameter 1/4 Inch
Dimensions 0.6250 IN X 0.2500 IN X 0.2500 IN
Directory CIS
Families 281
Family Description Small Dimension Fuses
Image Location * Image
Industry ELX
Interrupt Rating 200 AIC at 125 Vac
Interrupting Rating 100 Amp at 250 Volt AC, 200 Amp at 125 Volt AC
InvoiceDescription "AGA GLASS FUSE - 1/4"" x 5/8"" - 2 AMP";32V SMALL DIM FUSE
Item Number 70338
Length 5/8 Inch
Long Description ELECTRONIC FUSE, GLASS TUBE TYPE; 5/8 INCH; UL 248-14 APPROVAL; 250 VOLT AC VOLTAGE RATING; 1/4 INCH DIAMETER; 100 AMP AT 250 VOLT AC, 200 AMP AT 125 VOLT AC INTERRUPTING RATING; 2 AMP CURRENT RATING; FAST ACTING CHARACTERISTICS
MSDS Form Number *
Material Glass tubeNickel-plated brass endcaps
Model AGA
Noun *
Product Description "AGA GLASS FUSE - 1/4"" x 5/8"" - 2 AMP"
Product Keywords WEBREADY
Product Name Glass body fuses
ProductLine BUSS
Response Time 4 hr at 100%, 60 min at 135%, 120 sec at 200%
Size 1/4 In Diameter X 5/8 In Length
Special Features Interrupt Rating 200 Amp at 125 Vac, Material Glass Tube, Nickel Plated Brass Endcap
Standard CE Marked
Sub Brand Bussmann Series
Type Fast-acting glass tube fuse;Glass Tube
UNSPSC 39121607
UPC 05171270338
Vendor Name EATON BUSSMANN
Vendor Number 051712
Vendor Short Name BUSS
Voltage Rating 125 Vac, 32 Vdc;250 Volt AC

Resources

CatalogNumber AGA-2
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
