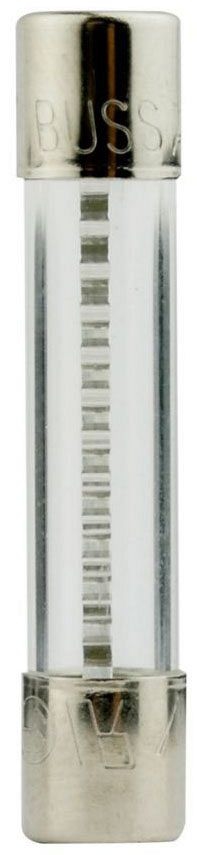

BUSS AGC-30-R

BUSS SMALL DIMENSION FUSE

Page Loading...
BUSSMANN
BUSS SMALL DIMENSION FUSE

Mouse over image to zoom, click to enlarge

Description:
BUSS SMALL DIMENSION FUSE

UPC:  05171265518

Part Number: AGC-30-R

UNSPSC: 39121609

Status:  UNKNOWN

Retail Price:  $208.00 / EA
Your Price:  $0.92 / EA


Quantity  EA

Specifications

Manufacturer Name BUSSMANN
MfgPartNo AGC-30-R
Additional Information RoHS Compliant; Endcap Material Nickel Plated Brass; Application Electronic Circuit
Amperage Rating 30 A
Application Ind Facilities & Factories - Facility: Safety and Security Systems
Approval UL 248-14, CSA
Base Price 0.0000
Brand Name Eaton
Catalog Number AGC-30-R
Characteristics Fast Acting
Commerce Sector Construction Materials
Commodity Code 61200
Commodity Description Small Dimension Fuses
Connection Ferrule end x ferrule end
CountryOfOrigin MUL
Current Rating 30 Amp
DDCATEGORY 281
Diameter 1/4 Inch
Dimensions 1.2500 IN X 0.2500 IN X 0.2500 IN
Directory CIS
Families 281
Family Description Small Dimension Fuses
Image Location * Image
Industry ELX
Interrupt Rating 1 kAIC at 32 Vac
Interrupting Rating 1000 Amp at 32 Volt AC
InvoiceDescription BUSS SMALL DIMENSION FUSE;32V SMALL DIM FUSE
Item Number 65518
Length 1-1/4 Inch
Long Description FUSE, GLASS TUBE TYPE; 1-1/4 INCH; UL 248-14, CSA APPROVAL; 32 VOLT AC VOLTAGE RATING; 1/4 INCH DIAMETER; 1000 AMP AT 32 VOLT AC INTERRUPTING RATING; 30 AMP CURRENT RATING; FERRULE TERMINAL TYPE; FAST ACTING CHARACTERISTICS; ROHS COMPLIANT
MSDS Form Number *
Material Glass tubeNickel-plated brass end cap construction
Model AGC
Noun *
Product Description BUSS SMALL DIMENSION FUSE
Product Keywords WEBREADY
Product Name Midget fuses
ProductLine BUSS
Response Time 60 min at 135%, 120 sec at 200%
Size 1/4 In Diameter X 1-1/4 In Length
Special Features Interrupt Rating 1000 Amp at 32 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Compliant
Standard RoHS Compliant,CE Marked
Sub Brand Bussmann Series
Terminal Type Ferrule
Type Fast-acting glass tube fuse;Glass Tube
UNSPSC 39121609
UPC 05171265518
Vendor Name EATON BUSSMANN
Vendor Number 051712
Vendor Short Name BUSS
Voltage Rating 32 Vac, 32 Vdc (self certified);32 Volt AC

Resources

CatalogNumber AGC-30-R
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
