BUSS ATC-2

ATC BLADE FUSE - 2 AMP (5 in TIN)

Page Loading...
BUSSMANN
ATC BLADE FUSE - 2 AMP (5 in TIN)

Mouse over image to zoom, click to enlarge

Description:

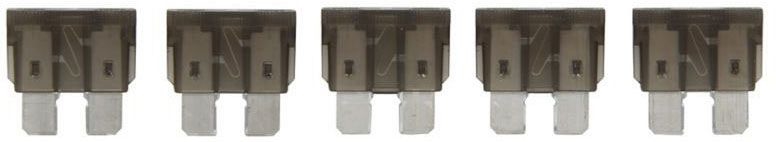

ATC BLADE FUSE - 2 AMP (5 in TIN)

UPC:  05171281343

Part Number: ATC-2

UNSPSC: 39121609

Status:  UNKNOWN

Retail Price:  $353.00 / EA
Your Price:  $2.13 / EA


Quantity  EA

Specifications

Manufacturer Name BUSSMANN
MfgPartNo ATC-2
Additional Information RoHS Compliant; Lead-Free; Material Tin Plated Zinc (Terminal/Element), Polycarbonate (Housing); Color Gray; Temperature Rating -40 to 100 Deg C; Application Automotive and Low Voltage Control Circuit; Applicable Standard ISO 8820-3/SAE J1284/JASO 612
Amperage Rating 2 A
Application Vehicles: On-Road
Approval UL 248-1
Base Price 0.0000
Brand Name Eaton
Catalog Number ATC-2
Characteristics Fast Acting
Commerce Sector Construction Materials
Commodity Code 61130
Commodity Description Current Limiting Fuses
Connection Blade End
CountryOfOrigin MUL
Current Rating 2 Amp
DDCATEGORY 582
Dimensions 0.7500 IN X 0.4900 IN X 0.2000 IN
Directory CIS
Families 582
Family Description Current Limiting Fuses
Image Location * Image
Industry ELX
Interrupt Rating 1000 Amp
Interrupting Rating 1 Kiloamp
InvoiceDescription ATC BLADE FUSE - 2 AMP (5 in TIN);2A LF BLADE FUSE
Item Number 81343
Length 18.7 Millimeter
Long Description AUTOMOTIVE BLADE FUSE, 18.7 MILLIMETER; 19.1 MILLIMETER; UL 248-1 APPROVAL; 32 VOLT DC VOLTAGE RATING; 5.1 MILLIMETER THICKNESS; 1 KILOAMP INTERRUPTING RATING; 2 AMP CURRENT RATING; FAST ACTING CHARACTERISTICS; ROHS COMPLIANT; LEAD-FREE
MSDS Form Number *
Material Plastic/Zinc
Model ATC
Noun *
Product Description ATC BLADE FUSE - 2 AMP (5 in TIN)
Product Keywords WEBREADY
Product Name Midget fuses
ProductLine BUSS
Size 0.760 In Length X 0.207 In Width X 0.752 In Height
Special Features Color Code Gray
Standard UL Listed,RoHS Compliant
Sub Brand Bussmann Series
Thickness 5.1 Millimeter
Type Blade fuse
Type Of Indicators Non-Indicating
UNSPSC 39121609
UPC 05171281343
Vendor Name EATON BUSSMANN
Vendor Number 051712
Vendor Short Name BUSS
Voltage Rating 32 VDC;32 Volt DC
Width 19.1 Millimeter

Resources

CatalogNumber ATC-2
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
