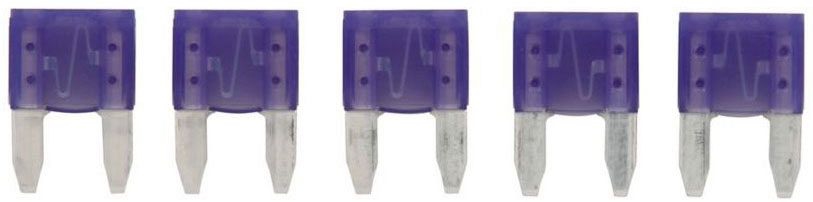

BUSS ATM-3

ATM MINI BLADE FUSE - 3 AMP (5 in TIN)

Page Loading...
BUSSMANN
ATM MINI BLADE FUSE - 3 AMP (5 in TIN)

Mouse over image to zoom, click to enlarge

Description:
ATM MINI BLADE FUSE - 3 AMP (5 in TIN)

UPC:  05171281459

Part Number: ATM-3

UNSPSC: 39121609

Status:  UNKNOWN

Retail Price:  $348.00 / EA
Your Price:  $1.81 / EA


Quantity  EA

Specifications

Manufacturer Name BUSSMANN
MfgPartNo ATM-3
Additional Information RoHS Compliant; Material Silver Plated Zinc (Terminal/Element), Polyamide (Housing); Color Violet; Temperature Rating -40 to 100 Deg C; Application Automotive and Low Voltage Control Circuit; Applicable Standard UL 275A, ISO 8820/JASO D612/SAE J2077/J1171
Amperage Rating 3 A
Application Vehicles: On-Road
Approval UL
Base Price 0.0000
Brand Name Eaton
Catalog Number ATM-3
Characteristics Fast Acting
Commerce Sector Construction Materials
Commodity Code 61200
Commodity Description Small Dimension Fuses
Connection Blade End
CountryOfOrigin MUL
Current Rating 3 Amp
DDCATEGORY 281
Dimensions 1.3800 IN X 0.4400 IN X 1.6000 IN
Directory CIS
Families 281
Family Description Small Dimension Fuses
Image Location * Image
Industry ELX
Interrupt Rating 1000 Amp
Interrupting Rating 1 Kiloamp
InvoiceDescription ATM MINI BLADE FUSE - 3 AMP (5 in TIN);32V VIOLET MINI-FUSE
Item Number 81459
Length 0.639 Inch
Long Description AUTOMOTIVE BLADE FUSE, 0.639 INCH; 0.43 INCH; UL APPROVAL; 32 VOLT AC/DC VOLTAGE RATING; 0.15 INCH THICKNESS; 1 KILOAMP INTERRUPTING RATING; 3 AMP CURRENT RATING; FAST ACTING CHARACTERISTICS; ROHS COMPLIANT
MSDS Form Number *
Material Zinc fuse elementColored plastic housing
Model ATM
Noun *
Product Description ATM MINI BLADE FUSE - 3 AMP (5 in TIN)
Product Keywords WEBREADY
Product Name Midget fuses
ProductLine BUSS
Size 0.430 In Length X 0.150 In Width X 0.606 In Height
Special Features Color Code Violet
Standard Contact factory,RoHS Compliant
Sub Brand Bussmann Series
Thickness 0.15 Inch
Type Blade fuse
Type Of Indicators Non-Indicating
UNSPSC 39121609
UPC 05171281459
Vendor Name EATON BUSSMANN
Vendor Number 051712
Vendor Short Name BUSS
Voltage Rating 32 VDC;32 Volt AC/DC
Width 0.43 Inch

Resources

CatalogNumber ATM-3
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
