BUSS ATM-7-1/2

ATM MINI BLADE FUSE-7.5 AMP (5 in TIN)

Page Loading...
BUSSMANN

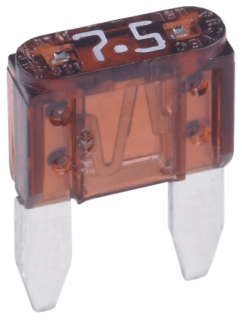

ATM MINI BLADE FUSE-7.5 AMP (5 in TIN)

Mouse over image to zoom, click to enlarge

Description:
ATM MINI BLADE FUSE-7.5 AMP (5 in TIN)

UPC:  05171281462

Part Number: ATM-7-1/2

UNSPSC: 39121609

Status:  UNKNOWN

Retail Price:  $358.00 / EA
Your Price:  $1.96 / EA


Quantity  EA

Specifications

Manufacturer Name BUSSMANN
MfgPartNo ATM-7-1/2
Additional Information RoHS Compliant; Material Silver Plated Zinc (Terminal/Element), Polyamide (Housing); Color Brown; Temperature Rating -40 to 100 Deg C; Application Automotive and Low Voltage Control Circuit; Applicable Standard UL 275A, ISO 8820/JASO D612/SAE J2077/J1171
Amperage Rating 7-1/2 Amp
Application Vehicles: On-Road
Approval UL
Base Price 0.0000
Catalog Number ATM-7-1/2
Characteristics Fast Acting
Commerce Sector Construction Materials
Commodity Code 61200
Commodity Description Small Dimension Fuses
Connection Blade End
CountryOfOrigin MUL
Current Rating 7.5 Amp
DDCATEGORY 281
Dimensions 0.4300 IN X 0.1500 IN X 0.6600 IN
Directory CIS
Families 281
Family Description Small Dimension Fuses
Image Location * Image
Industry ELX
Interrupt Rating 1000 Amp
Interrupting Rating 1 Kiloamp
InvoiceDescription ATM MINI BLADE FUSE-7.5 AMP (5 in TIN);32V BRN MINI-FUSE
Item Number 81462
Length 0.639 Inch
Long Description AUTOMOTIVE BLADE FUSE, 0.639 INCH; 0.43 INCH; UL APPROVAL; 32 VOLT AC/DC VOLTAGE RATING; 0.15 INCH THICKNESS; 1 KILOAMP INTERRUPTING RATING; 7.5 AMP CURRENT RATING; FAST ACTING CHARACTERISTICS; ROHS COMPLIANT
MSDS Form Number *
Material Colored plastic housing;Zinc fuse element
Model ATM
Noun *
Product Description ATM MINI BLADE FUSE-7.5 AMP (5 in TIN)
Product Keywords WEBREADY
Product Name Midget fuses
ProductLine BUSS
Size 0.430 In Length X 0.150 In Width X 0.606 In Height
Special Features Color Code Brown
Standard Contact factory,RoHS Compliant
Thickness 0.15 Inch
Type Blade fuse
UNSPSC 39121609
UPC 05171281462
Vendor Name EATON BUSSMANN
Vendor Number 051712
Vendor Short Name BUSS
Voltage Rating 32 Vdc;32 Volt AC/DC
Width 0.43 Inch

Resources

CatalogNumber ATM-7-1/2
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
