BUSS BK/GMA-2-R

GMA 2A BUSS FA BK 100 BOX -R

Page Loading...
BUSSMANN
GMA 2A BUSS FA BK 100 BOX -R

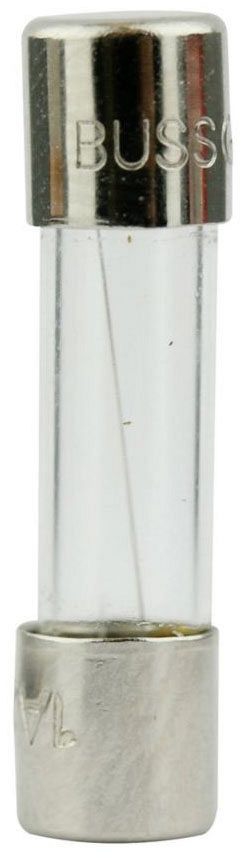

Mouse over image to zoom, click to enlarge

Description:
GMA 2A BUSS FA BK 100 BOX -R

UPC:  05171264725

Part Number: BK/GMA-2-R

UNSPSC: 39121607

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name BUSSMANN
MfgPartNo BK/GMA-2-R
Additional Information RoHS Compliant; Endcap Material Nickel Plated Brass; Application Electronic Circuit
Amperage Rating 2 A
Application Ind Facilities & Factories - Facility: Safety and Security Systems
Approval UL 248-14, CSA, CE, PSE
Base Price 0.0000
Brand Name Eaton
Catalog Number BK/GMA-2-R
Characteristics Fast Acting
Commerce Sector Construction Materials
Commodity Code 61200
Commodity Description Small Dimension Fuses
Connection Ferrule end x ferrule end
CountryOfOrigin CN
Current Rating 2 Amp
DDCATEGORY 281
Diameter 5 Millimeter
Dimensions 0.7874 IN X 0.1969 IN X 0.1969 IN
Directory CIS
Families 281
Family Description Small Dimension Fuses
Image Location * Image
Industry ELX
Interrupt Rating 10 kAIC at 125 Vac0.1 kAIC at 250 Vac
Interrupting Rating 100 Amp at 250 Volt AC, 10000 Amp at 125 Volt AC
InvoiceDescription GMA 2A BUSS FA BK 100 BOX -R;2A 250V FUSE
Item Number 64725
Length 20 Millimeter
Long Description FUSE, GLASS TUBE TYPE; 20 MILLIMETER; UL 248-14, CSA, CE, PSE APPROVAL; 250 VOLT AC VOLTAGE RATING; 5 MILLIMETER DIAMETER; 100 AMP AT 250 VOLT AC, 10000 AMP AT 125 VOLT AC INTERRUPTING RATING; 2 AMP CURRENT RATING; FERRULE TERMINAL TYPE
MSDS Form Number *
Material Glass tubeNickel-plated brass end cap construction
Model GMA
Noun *
Product Description GMA 2A BUSS FA BK 100 BOX -R
Product Keywords WEBREADY
Product Name Glass body fuses
ProductLine BUSS
Response Time 60 min at 135%, 2 min at 200%
Size 5 mm Diameter X 20 mm Length
Special Features Low Breaking Capacity, Interrupt Rating 100 Amp at 250 Vac, 10 kA at 125 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Complaint, Packa
Standard RoHS Compliant,CE Marked
Sub Brand Bussmann Series
Terminal Type Ferrule
Type Fast-acting fuse;Glass Tube
UNSPSC 39121607
UPC 05171264725
Vendor Name EATON BUSSMANN
Vendor Number 051712
Vendor Short Name BUSS
Voltage Rating 250 Vac, 32 Vdc (self certified);250 Volt AC

Resources

CatalogNumber BK/GMA-2-R
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
