BUSS FRN-R-35

FUSETRON DUAL-ELEMENT CLASS RK5

Page Loading...
BUSSMANN
FUSETRON DUAL-ELEMENT CLASS RK5

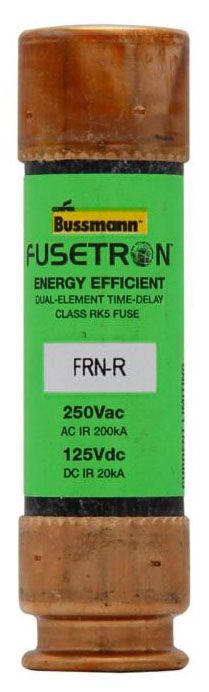

Mouse over image to zoom, click to enlarge

Description:
FUSETRON DUAL-ELEMENT CLASS RK5

UPC:  05171210177

Part Number: FRN-R-35

UNSPSC: 39121606

Status:  UNKNOWN

Retail Price:  $50.34 / EA
Your Price:  $31.96 / EA


Quantity  EA

Specifications

Manufacturer Name BUSSMANN
MfgPartNo FRN-R-35
Additional Information Overall Dimension 0.81 Inch Width x 0.81 Inch Height; Packaging Type Standard; Response Time 10 Second (500 Percent); Application Combination Starter, Motor Control Center, Machinery Disconnect, Power Panel Board
Amperage Rating 35 A
Application Ind Facilities & Factories - Facility: Safety and Security Systems
Approval UL, CE
Base Price 0.0000
Brand Name Fusetron[TM]
Catalog Number FRN-R-35
Characteristics Dual Element, Time Delay, Current Limiting, Non-Indicating
Commerce Sector Construction Materials
Commodity Code 61120
Commodity Description Dual Element Fuses
Connection Ferrule end x ferrule end
CountryOfOrigin MX
Current Rating 35 Amp
DDCATEGORY 581
Diameter 0.81 Inch
Dimensions 3.0000 IN X 0.8100 IN X 0.8100 IN
Directory CIS
Element Dual
Families 581
Family Description Dual Element Fuses
Fuse Class Class RK5
Image Location * Image
Industry ELX
Interrupt Rating 20 kAIC at 125 Vdc200 kAIC at 250 Vac
Interrupting Rating 200 Kiloamp (250 Volt AC), 20 Kiloamp (125 Volt DC)
InvoiceDescription FUSETRON DUAL-ELEMENT CLASS RK5;250V RK5 TD FUSE
Item Number 10177
Length 3 Inch
Long Description POWER FUSE, CLASS RK5 TYPE; 3 INCH; UL, CE APPROVAL; 250 VOLT AC, 125 VOLT DC VOLTAGE RATING; 0.81 INCH DIAMETER; 200 KILOAMP (250 VOLT AC), 20 KILOAMP (125 VOLT DC) INTERRUPTING RATING; 35 AMP CURRENT RATING; FERRULE TERMINAL TYPE
MSDS Form Number *
Model FRN-R
Noun *
Product Description FUSETRON DUAL-ELEMENT CLASS RK5
Product Keywords WEBREADY
Product Name Cartridge fuses
ProductLine BUSS
Response Time 10 S at 500%
Size 0.81 In Diameter X 3.00 In Length
Special Features Finger safe
Standard CE Marked
Terminal Type Ferrule
Type Fuse;Class RK5
UNSPSC 39121606
UPC 05171210177
Vendor Name EATON BUSSMANN
Vendor Number 051712
Vendor Short Name BUSS
Voltage Rating 250 Vac, 125 Vdc;250 Volt AC, 125 Volt DC

Resources

CatalogNumber FRN-R-35
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
