BUSS JM60060-1CR

Class J fuse block 600V 60A - 1 pole

Page Loading...
BUSSMANN
Class J fuse block 600V 60A - 1 pole

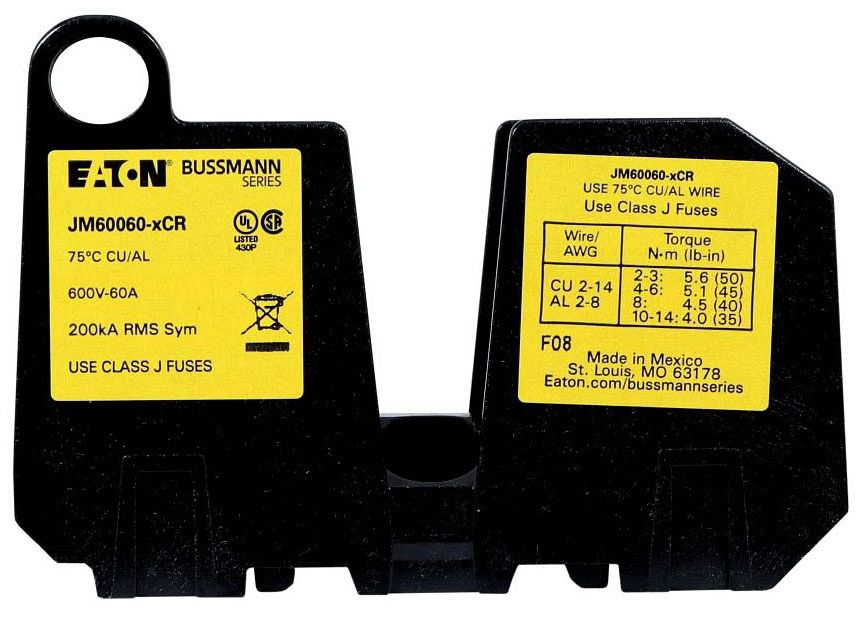

Mouse over image to zoom, click to enlarge

Description:
Class J fuse block 600V 60A - 1 pole

UPC:  05171251466

Part Number: JM60060-1CR

UNSPSC: 39121629

Status:  UNKNOWN

Your Price:  $74.86 / EA


Quantity  EA

Specifications

Manufacturer Name BUSSMANN
MfgPartNo JM60060-1CR
Additional Information RoHS Compliant; Overall Dimension 1.5 Inch Length x 2.1 Inch Width x 3.7 Inch Height; Interrupt Rating 200 Kiloamp (Symmetrical); Mounting Type DIN-Rail and Panel; Flammability Rating UL 94V0; Temperature Rating -40 to 120 Deg C
Amperage Rating 35-60A
Application Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Approval UL, CSA, CE
Base Price 0.0000
Catalog Number JM60060-1CR
Class Class J
Clip Type Spring Reinforced
Commerce Sector Construction Materials
Commodity Code 61310
Commodity Description Fuseholders & Fuseblocks
Connection Box lug
CountryOfOrigin MX
DDCATEGORY 585
Dimensions 0.0010 IN X 0.0010 IN X 0.0010 IN
Directory CIS
Families 585
Family Description Fuseholders & Fuseblocks
Fuse Current Rating 35 to 60 Amp
Fuse Type Class J
Fuse Voltage Rating 600 Volt
Image Location * Image
Industry ELX
InvoiceDescription Class J fuse block 600V 60A 1 pole;Class J fuse block 600V 60A - 1 pole;1P 600V FUSBLK
Item Number 51466
Long Description FUSE BLOCK, BARRIER TYPE; THERMOPLASTIC MATERIAL; 14 TO 2 AWG (COPPER), 8 TO 2 AWG (ALUMINUM) WIRE SIZE; UL, CSA, CE APPROVAL; 1 POLE(S); BOX LUG TERMINAL TYPE; CLASS J FUSE TYPE; 35 TO 60 AMP FUSE CURRENT RATING; 600 VOLT FUSE VOLTAGE RATING
MSDS Form Number *
Material Thermoplastic
Model JM
Noun *
Number Of Poles 1
Product Description Class J fuse block 600V 60A - 1 pole
Product Keywords WEBREADY
Product Name Fuse block
ProductLine BUSS
Special Features CR
Standard UL Listed ,Contact Manufacturer ,CSA Certified,RoHS Compliant,CE Marked
Terminal Type Box Lug
Type Modular fuse block;Barrier
UNSPSC 39121629
UPC 05171251466
Vendor Name EATON BUSSMANN
Vendor Number 051712
Vendor Short Name BUSS
Voltage Rating 600V
Wire Size 14 to 2 AWG (Copper), 8 to 2 AWG (Aluminum)

Resources

CatalogNumber JM60060-1CR
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
