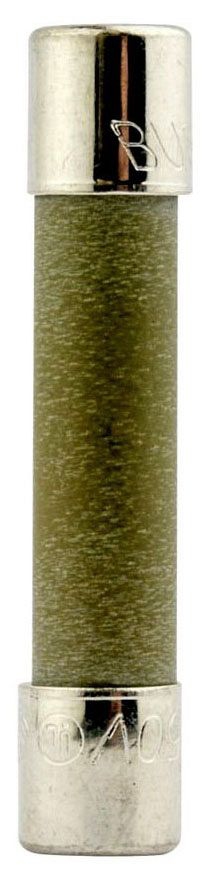

BUSS MDA-1-R

BUSS SMALL DIMENSION FUSE

Page Loading...
BUSSMANN
BUSS SMALL DIMENSION FUSE

Mouse over image to zoom, click to enlarge

Description:
BUSS SMALL DIMENSION FUSE

UPC:  05171264508

Part Number: MDA-1-R

UNSPSC: 39121609

Status:  UNKNOWN

Retail Price:  $9.08 / EA
Your Price:  $4.82 / EA


Quantity  EA

Specifications

Manufacturer Name BUSSMANN
MfgPartNo MDA-1-R
Additional Information RoHS Compliant; Endcap Material Nickel Plated Brass; Application Electronic Circuit
Amperage Rating 1 A
Application Ind Facilities & Factories - Facility: Safety and Security Systems
Approval UL 248-14, CSA, CE
Base Price 0.0000
Catalog Number MDA-1-R
Characteristics Time Delay
Commerce Sector Construction Materials
Commodity Code 61200
Commodity Description Small Dimension Fuses
Connection Ferrule
CountryOfOrigin MUL
Current Rating 1 Amp
DDCATEGORY 281
Diameter 1/4 Inch
Dimensions X X 1.2598 IN
Directory CIS
Families 281
Family Description Small Dimension Fuses
Image Location * Image
Industry ELX
Interrupt Rating 35 AIC at 250 Vac10 kAIC at 125 Vac
Interrupting Rating 35 Amp at 250 Volt AC, 10000 Amp at 125 Volt AC
InvoiceDescription BUSS SMALL DIMENSION FUSE;250V SMALL DIM FUSE
Item Number 64508
Length 1-1/4 Inch
Long Description FUSE, CERAMIC TUBE TYPE; 1-1/4 INCH; UL 248-14, CSA, CE APPROVAL; 250 VOLT AC VOLTAGE RATING; 1/4 INCH DIAMETER; 35 AMP AT 250 VOLT AC, 10000 AMP AT 125 VOLT AC INTERRUPTING RATING; 1 AMP CURRENT RATING; FERRULE TERMINAL TYPE; TIME DELAY CHARACTERISTICS
MSDS Form Number *
Material Nickel-plated brass end cap constructionCeramic tube
Model MDA
Noun *
Product Description BUSS SMALL DIMENSION FUSE
Product Keywords WEBREADY
Product Name Midget fuses
ProductLine BUSS
Response Time 60 min at 135%, 120 sec at 200%
Size 1/4 In Diameter X 1-1/4 In Length
Special Features Ceramic tube
Standard RoHS Compliant,CE Marked
Terminal Type Ferrule
Type Time-delay fuse;Ceramic Tube
UNSPSC 39121609
UPC 05171264508
Vendor Name EATON BUSSMANN
Vendor Number 051712
Vendor Short Name BUSS
Voltage Rating 250 Vac, 32 Vdc (self certified);250 Volt AC
