BUSS MDL-3/4-R

BUSS SMALL DIMENSION FUSE SLOW BLOW

Page Loading...
BUSSMANN
BUSS SMALL DIMENSION FUSE SLOW BLOW

Mouse over image to zoom, click to enlarge

Description:
BUSS SMALL DIMENSION FUSE SLOW BLOW

UPC:  05171265226

Part Number: MDL-3/4-R

UNSPSC: 39121609

Status:  UNKNOWN

Retail Price:  $601.00 / EA
Your Price:  $2.28 / EA


Quantity  EA

Specifications

Manufacturer Name BUSSMANN
MfgPartNo MDL-3/4-R
Additional Information RoHS Compliant; Endcap Material Nickel Plated Brass; Application Electronic Circuit
Amperage Rating 750 mA
Application Ind Facilities & Factories - Facility: Safety and Security Systems
Approval UL 248-14, CSA, CE
Base Price 0.0000
Brand Name Eaton
Catalog Number MDL-3/4-R
Characteristics Time Delay
Commerce Sector Construction Materials
Commodity Code 61200
Commodity Description Small Dimension Fuses
Connection Ferrule end x ferrule end
CountryOfOrigin MUL
Current Rating 3/4 Amp
DDCATEGORY 281
Diameter 1/4 Inch
Dimensions 1.2500 IN X 0.2500 IN X 0.2500 IN
Directory CIS
Families 281
Family Description Small Dimension Fuses
Image Location * Image
Industry ELX
Interrupt Rating 35 AIC at 250 Vac10 kAIC at 125 Vac
Interrupting Rating 35 Amp at 250 Volt AC, 10000 Amp at 125 Volt AC
InvoiceDescription BUSS SMALL DIMENSION FUSE SLOW BLOW;250V SMALL DIM FUSE
Item Number 65226
Length 1-1/4 Inch

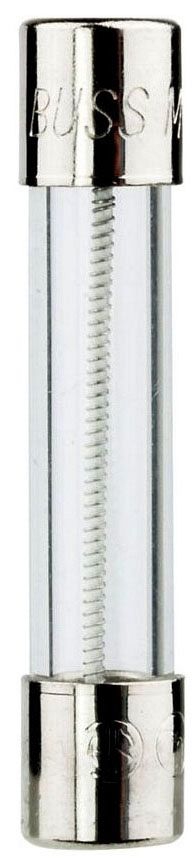

Long Description FUSE, GLASS TUBE TYPE; 1-1/4 INCH; UL 248-14, CSA, CE APPROVAL; 250 VOLT AC VOLTAGE RATING; 1/4 INCH DIAMETER; 35 AMP AT 250 VOLT AC, 10000 AMP AT 125 VOLT AC INTERRUPTING RATING; 3/4 AMP CURRENT RATING; FERRULE TERMINAL TYPE; TIME DELAY CHARACTERISTICS
MSDS Form Number *
Material Glass tubeNickel-plated brass end cap construction
Model MDL
Noun *
Product Description BUSS SMALL DIMENSION FUSE SLOW BLOW
Product Keywords WEBREADY
Product Name Midget fuses
ProductLine BUSS
Response Time 60 min at 135%, 120 sec at 200%, 5 sec at 200%
Size 1/4 In Diameter X 1-1/4 In Length
Special Features Interrupt Rating 35 Amp at 250 Vac, 10000 Amp at 125 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Compliant
Standard RoHS Compliant,CE Marked
Sub Brand Bussmann Series
Terminal Type Ferrule
Type Time-delay fuse;Glass Tube
UNSPSC 39121609
UPC 05171265226
Vendor Name EATON BUSSMANN
Vendor Number 051712
Vendor Short Name BUSS
Voltage Rating 250 Vac, 32 Vdc (self certified);250 Volt AC

Resources

CatalogNumber MDL-3/4-R
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
