| Manufacturer Name | BUSSMANN |
| MfgPartNo | PDB370-1 |
| Additional Information | RoHS Compliant; Short Circuit Current Rating 200 Kiloamp; Mounting Type Panel; Flammability Rating UL 94V0; Application Dual Wire Port, Ferrule Terminal |
| Amperage Rating | 310A |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Catalog Number | PDB370-1 |
| Commerce Sector | Construction Materials |
| Commodity Code | 61320 |
| Commodity Description | Power Blocks & Distribution Blocks |
| Conductor Material | Copper, Aluminum |
| Connector Material | Tin-Plated Aluminum |
| CountryOfOrigin | MUL |
| Current Rating | 310 Amp |
| DDCATEGORY | 586 |
| Dimensions | 4.0000 IN X 1.7500 IN X 3.2200 IN |
| Directory | CIS |
| Families | 586 |
| Family Description | Power Blocks & Distribution Blocks |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | POWER DISTRIBUTION BLOCK;SMALL DIM FUSE |
| Item Number | 63776 |
| Long Description | POWER DISTRIBUTION BLOCK, BARRIER TYPE; 4 INCH LENGTH X 1.98 INCH WIDTH X 3.33 INCH HEIGHT SIZE; COPPER, ALUMINUM CONDUCTOR MATERIAL; UL, CSA APPROVAL; 600 VOLT AC/DC VOLTAGE RATING; 310 AMP CURRENT RATING; -20 TO 120 DEG C TEMPERATURE RATING; 1 POLE(S) |
| MSDS Form Number | * |
| Material | Tin plated aluminum connectors |
| Model | PDB |
| Mounting | Panel |
| Noun | * |
| Number Of Poles | 1 |
| Number Of Primary Openings Per Pole | 1 |
| Number Of Secondary Openings Per Pole | 12 |
| Primary Opening Wire Size | 2/0 AWG to 350 KCMIL Copper/Aluminum (Stranded), 1/0 AWG Copper/Aluminum (Stranded), 6 to 1 AWG Copper/Aluminum |

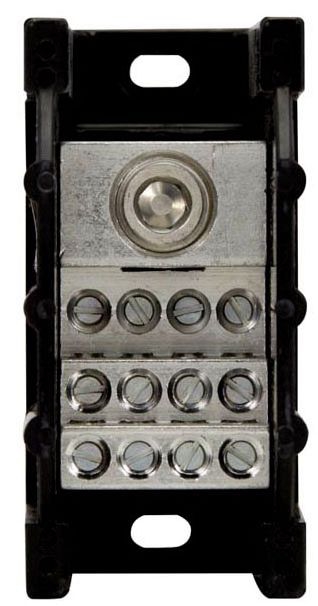

| Product Description | POWER DISTRIBUTION BLOCK |
| Product Keywords | WEBREADY |
| Product Name | Fuse block |
| ProductLine | BUSS |
| Secondary Opening Wire Size | 6 to 4 AWG Copper/Aluminum (Stranded), 8 AWG Aluminum (Stranded), 8 AWG Copper, 12 to 10 AWG Aluminum (Stranded), 14 to 10 AWG Copper |
| Size | 3.38 In Length X 1.96 In Width X 3.32 In Height;4 Inch Length x 1.98 Inch Width x 3.33 Inch Height |
| Special Features | IP-20 Finger-safe |
| Standard | Contact Manufacturer,RoHS Compliant,Contact factory |
| Temperature Rating | -20 to 120 Deg C |
| Type | Power distribution block;Barrier |
| UNSPSC | 39121629 |
| UPC | 05171263776 |
| Vendor Name | EATON BUSSMANN |
| Vendor Number | 051712 |
| Vendor Short Name | BUSS |
| Voltage Rating | 600 Vac, 600 Vdc;600 Volt AC/DC |
