| Manufacturer Name | BUSSMANN |
| MfgPartNo | RD30-3 |
| Additional Information | RoHS Compliant; Short Circuit Current Rating 100 Kiloamp; Temperature Rating -20 to 70 Deg C |
| Amperage Rating | 30 A |
| Application | Stationary Mach Equip In Factory - Robotics |
| Approval | UL, CSA C22.2, CE |
| Base Price | 0.0000 |
| Catalog Number | RD30-3 |
| Commerce Sector | Construction Materials |
| Commodity Code | 31820 |
| Commodity Description | Non-Fusible Rotary Safety Switches |
| Conductor Material | Copper |
| Conductor Size | 12 to 10 AWG (Solid), 10 to 1 AWG (Stranded), 1/0 AWG (Stranded), 2/0 AWG (Stranded) |
| CountryOfOrigin | MUL |
| Current Rating | 30 Amp |
| DDCATEGORY | 1722 |
| Depth | 5 in |
| Directory | CIS |
| Families | 1722 |
| Family Description | Non-Fusible Rotary Safety Switches |
| Fuse Type | Class J |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Switch 30A Non-F 3P UL98;3P 30A DIS-SW |
| Item Number | 40252 |

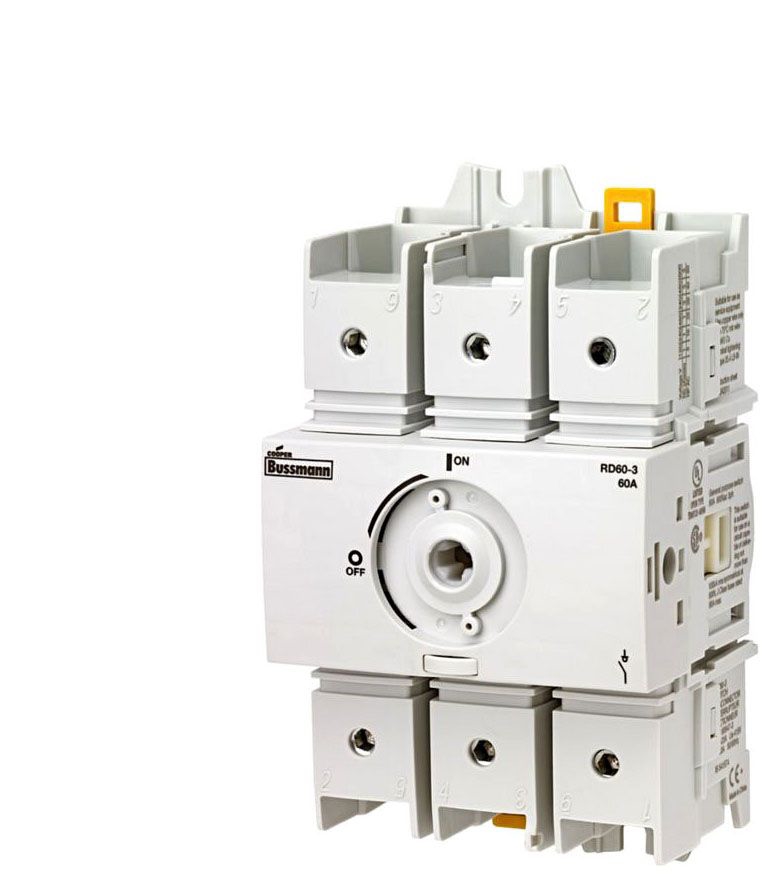

| Long Description | ROTARY DISCONNECT SWITCH, NON-FUSIBLE, COMPACT TYPE; COPPER CONDUCTOR MATERIAL; UL, CSA C22.2, CE APPROVAL; 120/240/480/600 VOLT AC (UL 98) VOLTAGE RATING; DIN-RAIL/PANEL MOUNTING; 30 AMP CURRENT RATING |
| MSDS Form Number | * |
| Model | RD |
| Mounting | DIN-Rail/Panel |
| Noun | * |
| Number Of Poles | 3 |
| Operating Temperature Maximum | 158 F |
| Operating Temperature Minimum | 158 F |
| Operator Position | Front/Side |
| Operator Type | Direct Handle, Shaft |
| Power Rating | 2 HP at 120 Volt AC 1-Phase, 5 HP at 240 Volt AC 1-Phase, 10 HP at 240 Volt AC 3-Phase, 20 HP at 480 Volt AC 3-Phase, 25 HP at 600 Volt AC 3-Phase |
| Product Description | Switch 30A Non-F 3P UL98 |
| Product Keywords | WEBREADY |
| Product Name | Safety switch |
| ProductLine | BUSS |
| Special Features | Compact switch, Front/side handle operation |
| Standard | Not Applicable,RoHS Compliant |
| Terminal Type | Lug |
| Type | Non-fused disconnect switch;Non-Fusible, Compact |
| UNSPSC | 39122205 |
| UPC | 05171240252 |
| Vendor Name | EATON BUSSMANN |
| Vendor Number | 051712 |
| Vendor Short Name | BUSS |
| Voltage Rating | 600 V;120/240/480/600 Volt AC (UL 98) |
| Width | 3 in |
