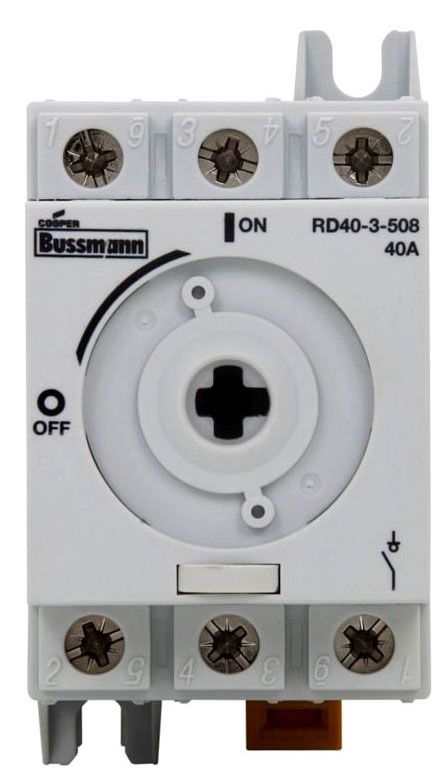

BUSS RD40-3-508

Switch 40A Non-F 3P UL508

Page Loading...
BUSSMANN
Switch 40A Non-F 3P UL508

Mouse over image to zoom, click to enlarge

Description:
Switch 40A Non-F 3P UL508

UPC:  05171240255

Part Number: RD40-3-508

UNSPSC: 39122205

Status:  UNKNOWN

Retail Price:  $311.21 / EA
Your Price:  $142.84 / EA


Quantity  EA

Specifications

Manufacturer Name BUSSMANN
MfgPartNo RD40-3-508
Additional Information RoHS Complaint; Short Circuit Current Rating 10 Kiloamp at 60 Amp, 65 Kiloamp at 30 Amp; Operating Temperature Rating -20 to 70 Deg C
Amperage Rating 40 A
Application Stationary Mach Equip In Factory - Robotics
Approval UL, CSA C22.2, CE
Base Price 0.0000
Brand Name Eaton
Catalog Number RD40-3-508
Commerce Sector Construction Materials
Commodity Code 31820
Commodity Description Non-Fusible Rotary Safety Switches
Conductor Material Copper
Conductor Size (1) 14 to 10 AWG (Solid), (2) 12 AWG (Solid), (1) 14 to 4 AWG (Stranded), (2) 14 to 12 AWG (Stranded)
CountryOfOrigin MUL
Current Rating 40 Amp
DDCATEGORY 1722
Dimensions 1.7800 IN X 2.4900 IN X 2.7300 IN
Directory CIS
Families 1722
Family Description Non-Fusible Rotary Safety Switches
Fuse Type Class J
Image Location * Image
Industry ELX
InvoiceDescription Switch 40A Non-F 3P UL508;3P 40A DIS-SW
Item Number 40255
Long Description ROTARY DISCONNECT SWITCH, NON-FUSIBLE TYPE; COPPER CONDUCTOR MATERIAL; UL, CSA C22.2, CE APPROVAL; 240/480/600 VOLT AC (UL 508) VOLTAGE RATING; DIN-RAIL/PANEL MOUNTING; 40 AMP CURRENT RATING
MSDS Form Number *
Model RD
Mounting DIN-Rail/Panel
Noun *
Number Of Poles 3
Operating Temperature 70 CEL
Operator Position Front/Side
Operator Type Direct Handle, Shaft
Power Rating 7.5 HP at 208/240 Volt AC 3-Phase, 20 HP at 480 Volt AC 3-Phase, 25 HP at 600 Volt AC 3-Phase
Product Description Switch 40A Non-F 3P UL508
Product Keywords WEBREADY
Product Name Safety switch
ProductLine BUSS
Special Features Front/side handle operation
Standard Not Applicable,RoHS Compliant
Sub Brand Bussmann Series
Terminal Type Lug
Type Non-fused disconnect switch;Non-Fusible
UNSPSC 39122205
UPC 05171240255
Vendor Name EATON BUSSMANN
Vendor Number 051712
Vendor Short Name BUSS
Voltage Rating 600 V;240/480/600 Volt AC (UL 508)

Resources

CatalogNumber RD40-3-508
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
